PMW6230
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For latest product information, please visit Acnodes' website at www.acnodes.com.
14628 Central Ave. Chino, CA 91710
© Copyright 2021 Acnodes Corp.

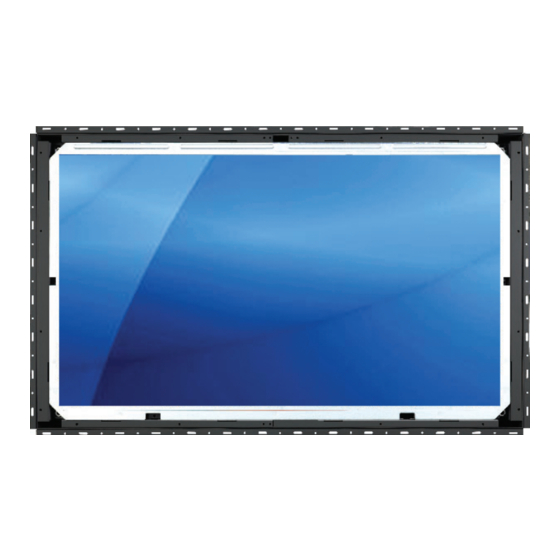

23" 1920 x 1080 Full HD LCD Monitor
VGA + DVI-D Video Input
Open Frame Metal Construction
Tel: 909.597.7588
Fax: 909.597.1939
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acnodes PMW6230
Summary of Contents for Acnodes PMW6230
- Page 1 Open Frame Metal Construction User Manual All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ website at www.acnodes.com. 14628 Central Ave. Chino, CA 91710 Tel: 909.597.7588 Fax: 909.597.1939...
- Page 2 Legal Information First English printing, October 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents PMW6230 < Part. 1 > Package Content Structure Diagram & Dimension Installation < Part. 2 > Specifications / OSD Product Specifications On-screen Display Operation (OSD) Options < Part. 3 > Option Table 3G / HD / SD-SDI Broadcast-grade input P.10... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part. 1 > Pmw6230 Package Content
< Part 1 > PMW6230 < 1.1 > Package Content PMW6230 23” FHD LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Power DVI-D Upgrade I/O with advanced features Power... -
Page 6: Structure Diagram & Dimension
(W x D x H) Weight 581.4 x 65.3 x 360.6 mm 659 x 117 x 640 mm 6.7 kg 10.4 kg PMW6230 22.9 x 2.6 x 14.2 inch 25.9 x 4.6 x 25.2 inch 14.7 lb 22.9 lb P. 2... - Page 7 < 1.2 > Dimension Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View...
-
Page 8: Installation
< 1.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M4 screw Hardware and M4*4 pcs for VESA mounting are not provided P. 4... -
Page 9: Product Specifications
< Part 2 > < 2.1 > Product Specifi cations Mechanical Design open frame Protection Front Panel Rear Casing Black, RAL 9005 VESA mount 100 x 100 mm ready Universal mount Desktop stnad Panel mount LCD Panel Panel Size ( diagonal ) 23-inch Widescreen TFT color LCD Native resolution 1920 x 1080... - Page 10 < 2.1 > Product Specifi cations Environmental Conditions Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Temperature -20 to 60°C degree Non-operating Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration Physical Specifi...
-
Page 11: On-Screen Display Operation (Osd)
< 2.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &... - Page 12 Color Color temperature : User / Warm / Cool / 5400k mode and Red / Green / Blue color balance Sharpness : Adjust the image from weak to sharp : Adjust the screen hue value Saturation : Adjust the saturation of the image color Dynamic luminous control : Control the dynamic brightness OSD Set...
-
Page 13: Part 3 > Options
< Part 3 > Options < 3.1 > Option Table Options ✓ SDI *** ✓ Composite ( BNC ) ✓ Audio ✓ Touchscreen ✓ MCS multi-display control ✓ DC Power ✓ MIL-type / lockable connector ✓ Quad display About SDI The AD board comes standard with HDMI, VGA, BNC, audio inputs and RC-2 remote controller. - Page 14 < 3.2 > Options : 3G / HD / SD-SDI input Acnodes SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with LCD displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 15 < 3.3 > Options : MCS More control is always good. Especially when it is necessary and easy. Acnodes provides MCS solution to control the OSD of ( Multi-display Control ) various LCD display up to 64 units. The RS-232C is used for the communication between the PC and the first display via a 15 feet serial cable while the CAN bus...
- Page 16 < 3.4 > Upgrade Options : - HMDI ( HDMI 1.4, CEA-861-E ) - Display Port ( DP 1.0, HCDP 1.3 ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) Power Audio HDMI...
- Page 17 How to Use RC-2 Remote Controller INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 and 0 - 9 above, enter the second digit within two seconds.
-
Page 18: Touchscreen & Driver
< 3.5 > Options : Touchscreen & Driver 23" USB Touchscreen Specifi cation Model e-Resistive TPC-10 Multi-touch IR-06 Infrared Technology Projected Capacitive 5-Wire Resistive Infrared Touch Point Single Input Type Pen, Finger, Finger of Finger or Capacitive Stylus Finger or Stylus gloved hand activation Resolution 4096 x 4096... - Page 19 < 3.5 > Options : Touchscreen & Driver TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB / TCB Driver Please follow the below steps to setup the touch screen:- Step 1.
- Page 20 < 3.6 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
- Page 21 < 3.7 > Options : Quad Display QD Specifi cation Item Description Model Number QD (NTSC) QD (PAL) Number of Color 16.7 M 16.7 M Imaging System NTSC Resolution 1024 x 525 1024 x 625 Refresh Rate Video Input 1.0 Vpp, 75 Ohm x 4 Camera Input 1.0 Vpp, 75 Ohm x 1 VCR Input...
