Acnodes PMW7032 User Manual

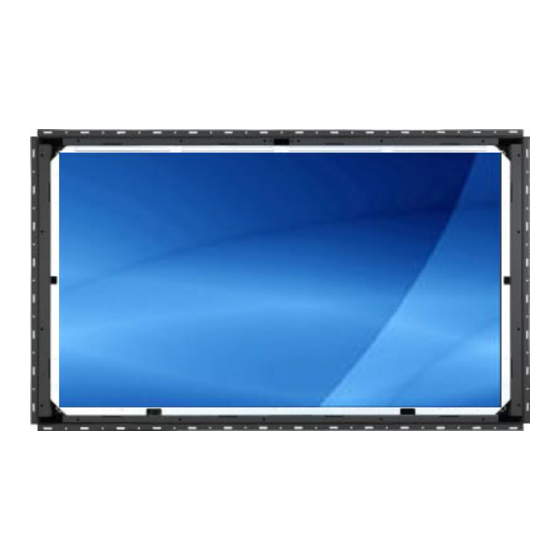

32' 4k lcd display openframe metal construction dp 1.2 + hdmi 1.4, hdmi 2.0 video input
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PMW7032
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For lastest product information, please visit Acnodes' website at www.acnodes.com
3 2 " 4 K L C D D i s p l a y
O p e n f r a m e m e t a l c o n s t r u c t i o n
D P 1 . 2 + H D M I 1 . 4 + H D M I 2 . 0 v i d e o i n p u t
14628 Central Ave. Chino, CA91710
© Copyright 2019 Acnodes Corp.
Tel: 909.597.7588
Fax: 909.597.1939

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMW7032 and is the answer not in the manual?

Questions and answers

Related Manuals for Acnodes PMW7032

Summary of Contents for Acnodes PMW7032

  • Page 1 D P 1 . 2 + H D M I 1 . 4 + H D M I 2 . 0 v i d e o i n p u t User Manual All rights reserved. Product description and product specifications are subject to change without notice. For lastest product information, please visit Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA91710 Tel: 909.597.7588 Fax: 909.597.1939...
  • Page 2 Legal Information First English printing, July 2019 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 > PMW7032 Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation < Part. 2 > Specifications / OSD/ Remote Controller P.5 - 6 Product Specifications On- Screen Display Operation (OSD) P.7 - 9 Picture in Picture (PIP) / Picture by Picture (PBP) P.10 -11...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 5: Pmw7032

    < Part 1 > PMW7032 32” 4K LCD Display < 1.1 > Package Content PMW7032 32” 4K LCD Display X 1 6ft DP Cable X 1 Power Cord X 1 Remote Controller X 1 Basic I/O Power Audio HDMI 1.4...

  • Page 6: Structure Diagram & Dimension

    < 1.2 > Structure Diagram Front view Side view PMW7032 Bottom view Rear case LCD panel Rear view Universal open frame mounting Audio speaker, pair LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end )
  • Page 7 < 1.2 > Dimension 32” 4K LCD Display Front View Side View PMW7032 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View...

  • Page 8: Mounting Hardware & Installation

    < 1.3 > Mounting Hardware & Installation ( I ) Universal mount ( II ) VESA mount ( 300*300mm ) VESA mount ( 300*300mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided...

  • Page 9: Product Specifications

    < Part 2 > < 2.1 > Product Specifications 32” 4K LCD Display Mechanical Design PMW 7032 open frame Protection Front Panel Rear Casing Black, RAL 9005 300 x 300 mm VESA mount ready Universal mount Desktop Stand Panel Mount LCD Panel 31.5-inch Widescreen TFT color LCD Panel Size ( diagonal )
  • Page 10 < 2.1 > Product Specifications Environmental Conditions Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Temperature -20 to 60°C degree Non-operating Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration Physical Specification...

  • Page 11: On- Screen Display Operation (Osd)

    32” 4K LCD Display < 2.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen...
  • Page 12 < 2.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the difference between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
  • Page 13 32” 4K LCD Display < 2.2 > On-screen Display Operation ( OSD ) Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...

  • Page 14: Picture In Picture (Pip) / Picture By Picture (Pbp)

    < 2.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 2.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position...
  • Page 15 32” 4K LCD Display < 2.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080...

  • Page 16: Options

    < Part 3 > Options < 3.1 > Option Table Options PMW7032 Remote controller MCS multi-screen control Touchscreen MIL-type / lockable connector DC Power P.12...

  • Page 17: Remote Controller (Rc-2)

    32” 4K LCD Display < 3.2 > Remote Controller ( RC-2 ) INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds.
  • Page 18 < 3.3 > Options : 3G / HD / SD-SDI input SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed with UltraView displays, input module support 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.

  • Page 19: Mcs Multi-Display Control Solution

    32” 4K LCD Display < 3.4 > Options : MCS More control is always good. Especially when it is necessary easy. Acnodes provides MCS ( Multi-display Control ) solution to control the OSD of various UltraView LCD display up to 64 units.

  • Page 20: Touchscreen & Driver

    < 3.5 > Options : Touchscreen & Driver 32" USB Touchscreen Specification Model TPC-10 Multi-touch Technology Projected Capacitive Touch Point Input Type Finger or Capacitive Stylus Resolution 4096 x 4096 Touch Point Accuracy ± 2 mm Response Speed < 5 ms Activation Force <...
  • Page 21 < 3.5 > Options : Touchscreen & Driver 32” 4K LCD Display TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. P.

  • Page 22: Dc Power

    < 3.6 > Options : DC Power Model 125V Input rating Input voltage: 24-Volt 48-Volt 110-Volt Input range: 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No loa 50 mA 50 mA 40 mA - Full loa 4880 mA 2442 mA 993 mA...

  • Page 23: Mil-Type Or Lockable Connector

    < 3.7 > Options : MIL-type or Lockable Connector 32” 4K LCD Display Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl...
