PMW7015
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For latest product information, please visit Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
© Copyright 2023 Acnodes Corp.

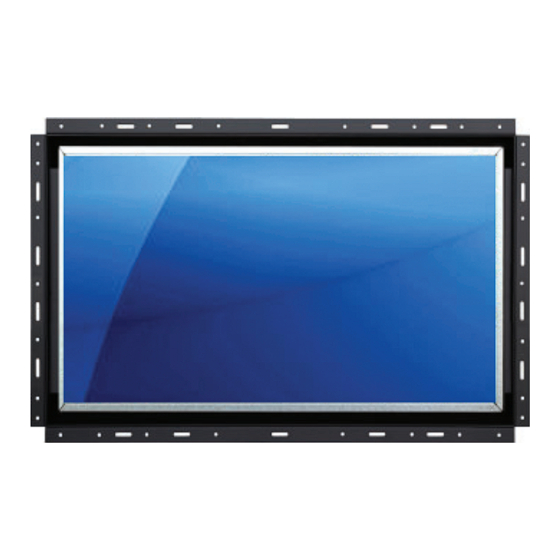

15.6" 4K Open Frame LCD Monitor
Supports 3840 x 2160 Resolution
DP 1.2 + HDMI 1.4 + HDMI 2.0 Input
Tel: 909.597.7588
Fax: 909.597.1939
Advertisement
Table of Contents
Related Manuals for Acnodes PMW7015
Summary of Contents for Acnodes PMW7015
- Page 1 DP 1.2 + HDMI 1.4 + HDMI 2.0 Input User Manual All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909.597.7588 Fax: 909.597.1939...
- Page 2 Legal Information First English printing, July 2022 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents PMW7015 < Part. 1 > Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 2 > Specifications / OSD / Remote Controller Product Specifi cations On-screen Display Operation ( OSD ) Picture In Picture ( PIP ) / Picture By Picture ( PBP ) P.10... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part 1 > Pmw7015
< Part 1 > PMW7015 < 1.1 > Package Content 15” 4K LCD Display PMW7015 15” 4K LCD Display X 1 6ft DP cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Audio Power HDMI 1.4... -
Page 6: Structure Diagram & Dimension
(W x D x H) (W x D x H) Weight 396 x 47.6 x 258.6 mm 615 x 113 x 523 mm 3.5 kg 6.1 kg PMW7015 15.9 x 1.9 x 10.2 inch 24.2 x 4.4 x 20.6 inch 7.7 lb 13.4 lb... - Page 7 < 1.2 > Dimension 15” 4K LCD Display Front View Side View PMW7015 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View...
- Page 8 < 1.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) Hardware and M6*4 pcs for VESA mounting are not provided...
-
Page 9: Product Specifications
< Part 2 > < 2.1 > Product Specifications 15” 4K LCD Display Mechanical Design open frame Protection Front Panel Rear Casing Black, RAL 9005 VESA mount 100 x 100 mm ready Universal mount Desktop stand Panel mount LCD Panel Panel Size ( diagonal ) 15.6-inch Widescreen TFT color LCD Native Resolution... - Page 10 < 2.1 > Product Specifications Environmental Conditions Operating Temperature 0 to 55°C degree Humidity 10~90%, non-condensing Altitude 16,000 ft Storage / Temperature -20 to 60°C degree Non-operating Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration Physical Specifi...
-
Page 11: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) 15” 4K LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen... - Page 12 < 2.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
- Page 13 < 2.2 > On-screen Display Operation ( OSD ) 15” 4K LCD Display Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...
-
Page 14: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
< 2.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 2.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position... - Page 15 15” 4K LCD Display < 2.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080...
-
Page 16: Part. 3 > Options
< 3.1 > Options : 3G / HD / SD-SDI input 15” 4K LCD Display Acnodes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with LCD displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty. - Page 17 < 3.2 > Options : MCS More control is always good. Especially when it is necessary and easy. Acnodes provides MCS solution to control the OSD of ( Multi-display Control ) various LCD display up to 64 units. The RS-232C is used for the communication between the PC and the first display via a 15 feet serial cable while the CAN bus...
-
Page 18: Touchscreen & Driver
< 3.3 > Options : Touchscreen & Driver 15” 4K LCD Display 15" USB Touchscreen Specifi cation Model TPC-10 Multi-touch e-Resistive Technology Projected Capacitive 5-Wire Resistive Touch Point Single Input Type Finger or Capacitive Stylus Finger or Stylus Resolution 4096 x 4096 2048 x 2048 Touch Point Accuracy ±... - Page 19 < 3.3 > Options : Touchscreen & Driver TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB Driver Please follow the below steps to setup the touch screen:- Step 1.
-
Page 20: Dc Power
< 3.4 > Options : DC Power 15” 4K LCD Display Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA...
