PMW7017
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For lastest product information, please visit Acnodes' website at www.acnodes.com

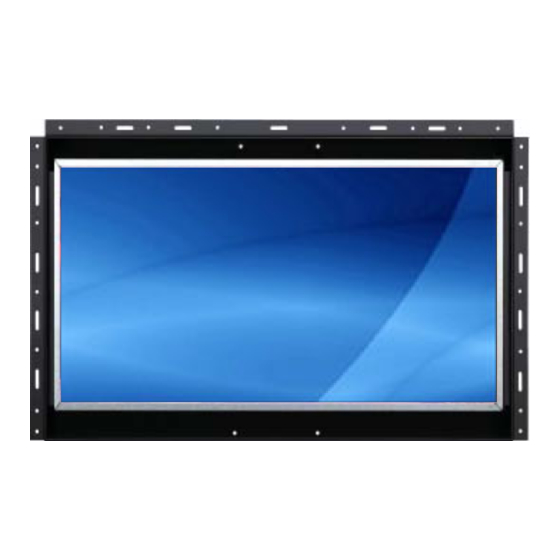

1 7 " 4 K L C D D i s p l a y
O p e n f r a m e m e t a l c o n s t r u c t i o n
D P 1 . 2 + H D M I 1 . 4 + H D M I 2 . 0 v i d e o i n p u t
14628 Central Ave. Chino, CA91710
© Copyright 2019 Acnodes Corp.
Tel: 909.597.7588
Fax: 909.597.1939
Advertisement
Table of Contents
Related Manuals for Acnodes PMW7017
Summary of Contents for Acnodes PMW7017
- Page 1 D P 1 . 2 + H D M I 1 . 4 + H D M I 2 . 0 v i d e o i n p u t User Manual All rights reserved. Product description and product specifications are subject to change without notice. For lastest product information, please visit Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA91710 Tel: 909.597.7588 Fax: 909.597.1939...
- Page 2 Legal Information First English printing, July 2019 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > PMW7017 Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation < Part. 2 > Specifications / OSD/ Remote Controller P.5 - 6 Product Specifications On- Screen Display Operation (OSD) P.7 - 9 Picture in Picture (PIP) / Picture by Picture (PBP) P.10 -11... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Pmw7017
< Part 1 > PMW7017 17” 4K LCD Display < 1.1 > Package Content PMW7017 17” 4K LCD Display X 1 6ft DP cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Audio Power HDMI 1.4... -
Page 6: Structure Diagram & Dimension
< 1.2 > Structure Diagram Front view Side View PMW7017 Bottom view Rear case LCD panel Audio speaker, pair Rear view Universal open frame mounting LCD membrane Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) - Page 7 < 1.2 > Dimension 17” 4K LCD Display Side View Front View PMW7017 Rear View UNIT : mm 1mm = 0.03937 inch 6 * 4 p c s Bottom View...
-
Page 8: Mounting Hardware & Installation
< 1.3 > Mounting Hardware & Installation ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) Hardware and M6*4 pcs for VESA mounting are not provided... -
Page 9: Product Specifications
< Part 2 > < 2.1 > Product Specifications 17” 4K LCD Display Mechanical Design PMW 7017 open frame Protection Front Panel Rear Casing Black, RAL 9005 100 x 100 mm VESA mount ready Universal mount Desktop Stand Panel Mount LCD Panel Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD... - Page 10 < 2.1 > Product Specifications Environmental Conditions Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Temperature -20 to 60°C degree Non-operating Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration Physical Specification...
-
Page 11: On- Screen Display Operation (Osd)
< 2.2 > On-screen Display Operation ( OSD ) 17” 4K LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen... - Page 12 < 2.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the difference between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
- Page 13 17” 4K LCD Display < 2.2 > On-screen Display Operation ( OSD ) Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...
-
Page 14: Picture In Picture (Pip) / Picture By Picture (Pbp)
< 2.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 2.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position... - Page 15 17” 4K LCD Display < 2.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080...
-
Page 16: Options
< Part 3 > Options < 3.1 > Option Table Options PMW7017 Remote controller MCS multi-screen control Touchscreen MIL-type / lockable connector DC Power P.12... -
Page 17: Remote Controller (Rc-2)
17” 4K LCD Display < 3.2 > Remote Controller ( RC-2 ) INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds. - Page 18 < 3.3 > Options : 3G / HD / SD-SDI input SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed with UltraView displays, input module support 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
-
Page 19: Mcs Multi-Display Control Solution
17” 4K LCD Display < 3.4 > Options : MCS More control is always good. Especially when it is necessary easy. Acnodes provides MCS ( Multi-display Control ) solution to control the OSD of various UltraView LCD display up to 64 units. -
Page 20: Touchscreen & Driver
< 3.5 > Options : Touchscreen & Driver 17" USB Touchscreen Specification Model e-Resistive TPC-10 Multi-touch Technology Projected Capacitive 5-Wire Resistive Touch Point Single Input Type Finger or Capacitive Stylus Finger or Stylus Resolution 4096 x 4096 2048 x 2048 Touch Point Accuracy ±... - Page 21 17” 4K LCD Display < 3.5 > Options : Touchscreen & Driver TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB Driver Please follow the below steps to setup the touch screen: Step 1.
-
Page 22: Dc Power
< 3.6 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load... -
Page 23: Mil-Type Or Lockable Connector
< 3.7 > Options : MIL-type or Lockable Connector 17” 4K LCD Display Input MIL Standard Part no. MIL - type DC Power MIL - DTL - 26482 MS3470W8-33P Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design flexibility possible.
