All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acnodes KD8170

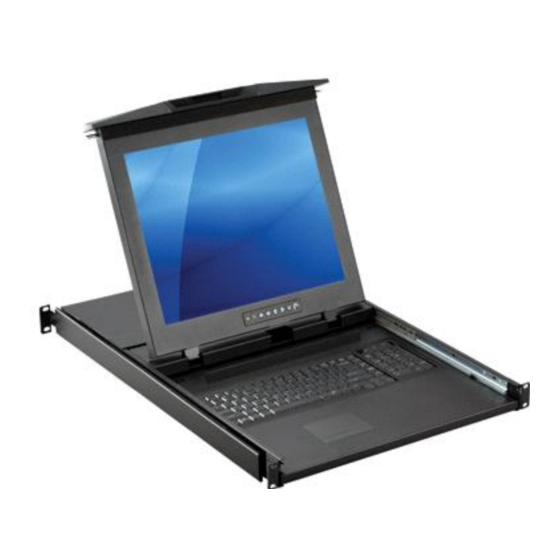

Summary of Contents for Acnodes KD8170

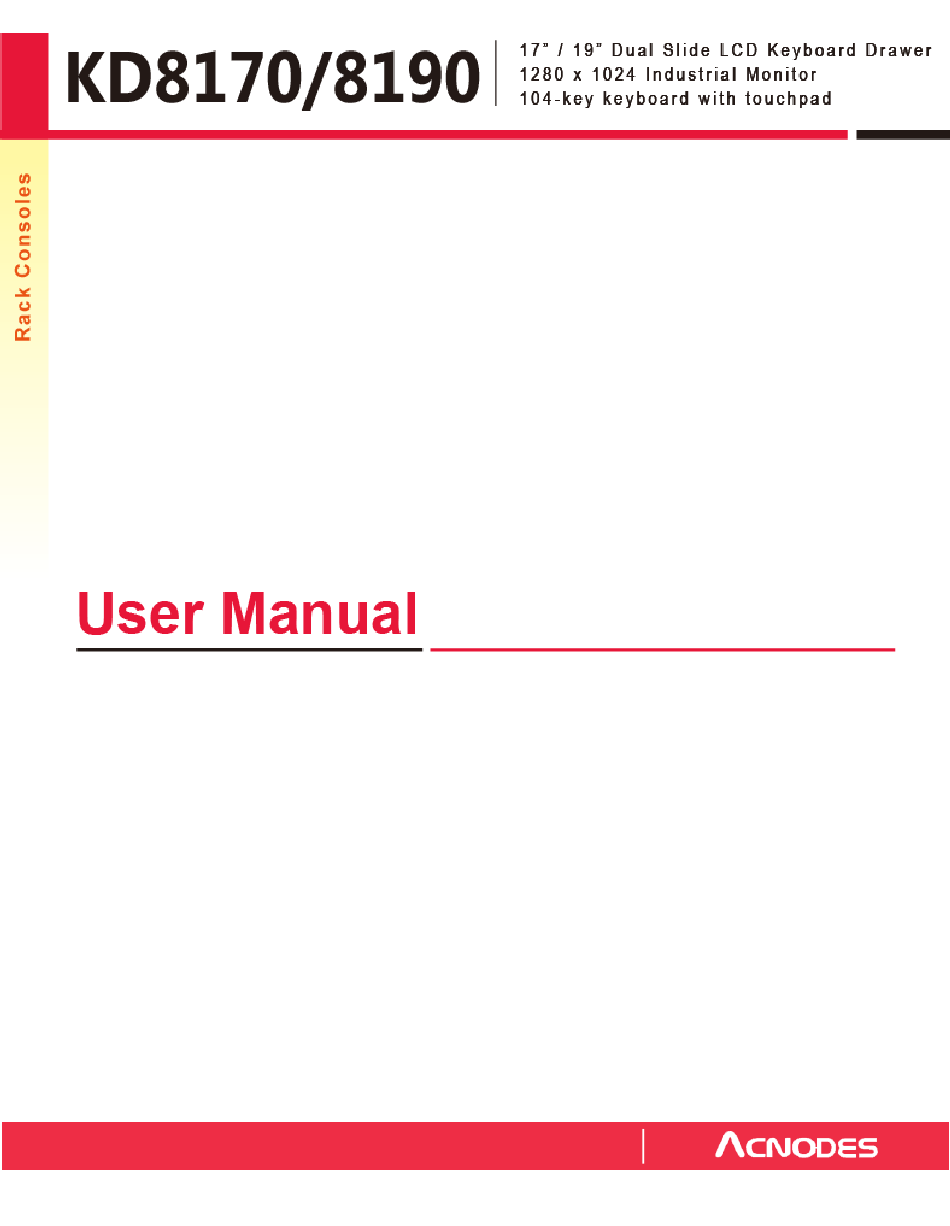

- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > KDM8170/8190 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 5 Connection < Part. 2 > Specifications / OSD Product Specifications P.7 - 8 Keyboard / Mouse Specifications On-screen Display Operation ( OSD ) P.10 <... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Package Content
< Part 1 > < 1.1 > Package Content KDM81 70 /81 90 unit X 1 - 6ft Co mb o KVM cable X 1 - Power cord X 1 - M6 sc rew, cage nut & cup was her X 8 The above package content is only for the single console models. - Page 6 < 1.2 > Dimension Front View UNIT : mm Sid e View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 441.6 x 650 x 44 mm 595 x 860 x 140 mm 12 kg 17 kg...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides Step ¦ Insert the left and right rear mounting brackets into the LCD c onsole drawer. Step ¦ Measure the depth of the front and rear mounting rails. ¦ Align each rear mounting bracket to a suitable length. Step Complete the installation ¦... - Page 8 < 1.3 > Installation - How to Use the Dual Slides ¦ Press the handle button and gently slide out the drawer. ¦ Flip up the LCD to a suitable angle. ¦ Operate the LCD console drawer.
- Page 9 < 1.3 > Installation - How to Use the Dual Slides ¦ Flip down the front panel. ¦ Press the handle button and gently push back the drawer into the rack . ¦ Retur n the LCD console drawer to park position.
-
Page 10: Connection
< 1.4 > Connection to PS/2 or USB Server LCD console drawer LCD console drawer Power Power Combo Combo KVM cable KVM cabl PS/2 server USB server LCD console drawer LCD console drawer Power Power Combo Combo KVM cable KVM cable USB console KVM PS/2 console KVM Caution :... -
Page 11: Product Specifications
< Part 2 > < 2.1 > Product Specifications KD M8170 KD M8190 Panel Manufactur er Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pix el ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. - Page 12 Regulatory Safety Approval cUL, FCC & CE Power Power Supply Range Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consum ption Screen display ON 25W or less Power s aving m ode 4W or less Power button OFF 1W or less Environmental Operating Temperature...
-
Page 13: Keyboard / Mouse Specifications
< 2.2 > Keyboard / Mouse Specifications G keyboard integrated with touchpad Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle tim e Software support MS W indows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux / Mac Supporting layouts America... -
Page 14: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Powe r saving Membrane Switch Function Power on / o ff LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by p ressing the button for 5 seconds) Exit the OSD screen... - Page 15 < Part 3 > < 3.1 > Options : - HDMI ( HDMI 1.1, C EA-861-D ) - DVI-D ( DVI-D TMD S s ingle link ) - AV ( S-Vid eo + Compo site, BN C ) - Audio ( 3.5mm audio jack s for au dio in &...
- Page 16 < 3.2 > Options : DC Power Model Input r ating Input voltage: 12-Volt 24-Volt 48-Vo lt Input ra nge : 9 ~ 18V 18 ~ 36 V 36 ~ 75V Input current - No load 50 m A 50 mA 50 mA - Full load 4950 mA...
