- Page 1 LAN25255HR & LAN35255HR IDAN-LAN25255HR, IDAN-LAN35255HR Gigabit Ethernet Unmanaged Switch User’s Manual BDM-610020088 Rev. E RTD Embedded Technologies, Inc. AS9100 and ISO 9001 Certified...
- Page 2 RTD Embedded Technologies, Inc. 103 Innovation Boulevard State College, PA 16803 USA Telephone: 814-234-8087 Fax: 814-234-5218 www.rtd.com sales@rtd.com techsupport@rtd.com...
- Page 3 Failure to follow the instructions found in this manual may result in damage to the product described in this manual, or other components of the system. The procedure set forth in this manual shall only be performed by persons qualified to service electronic equipment. Contents and specifications within this manual are given without warranty, and are subject to change without notice. RTD Embedded Technologies, Inc. shall not be liable for errors or omissions in this manual, or for any loss, damage, or injury in connection with the use of this manual.
-
Page 4: Table Of Contents
Onboard LEDs and External LED Connectors ......................... 16 IDAN Connections Module Handling Precautions ..............................17 Physical Characteristics ................................17 IDAN Versions ..................................18 5.3.1 IDAN-LAN25255HR and IDAN-LAN35255HR Steps for Installing ..................................19 Troubleshooting Additional Information PC/104 Specifications ................................22 PCI and PCI Express Specification ............................22 Limited Warranty | www.rtd.com... - Page 5 Figure 1: LAN25255 ........................................7 Figure 2: RJ-45 Jack Connector ..................................... 12 Figure 3: IDAN-LAN25255HR and IDAN-LAN35255HR ............................18 Figure 4: IDAN-LAN25255HR and IDAN-LAN25255HR Front View ........................18 Figure 5: IDAN-LAN25255HR and IDAN-LAN25255HR Rear View ........................19 Table of Tables Table 1: Ordering Options ......................................
-
Page 6: Introduction
4 port Gigabit Ethernet Switch PCIe/104 4 port Gigabit Ethernet Switch PCIe/104 in IDAN enclosure with 9-pin “D” IDAN-LAN35255HR connectors For IDAN versions with RJ-45 connectors see RTD’s StackNet line of expandable managed and unmanaged switches. | www.rtd.com LAN25255HR/LAN35255HR User’s Manual... -

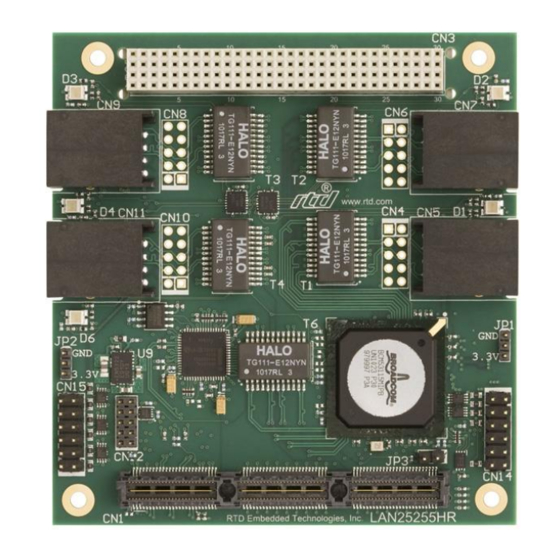

Page 7: Figure 1: Lan25255
The Intelligent Data Acquisition Node (IDAN™) building block can be used in just about any combination with other IDAN building blocks to create a simple but rugged 104™ stack. This module can also be incorporated in a custom-built RTD HiDAN™ or HiDANplus High Reliability Intelligent Data Acquisition Node. -
Page 8: Contact Information
If you are having problems with you system, please try the steps in the Troubleshooting section of this manual. For help with this product, or any other product made by RTD, you can contact RTD Embedded Technologies technical support via the... -
Page 9: Specifications
5V Current between buses BUS5 PCIe/104 Bus Differential Output Voltage DC Differential TX Impedance 95.2 116.9 Ω Differential Input Voltage 0.175 DC Differential RX Impedance 92.7 115.8 Ω Electrical Idle Detect Threshold | www.rtd.com LAN25255HR/LAN35255HR User’s Manual RTD Embedded Technologies, Inc. -
Page 10: Board Connection
Physical Characteristics • Weight: Approximately 55 g (0.12 lbs.) • Dimensions: 90.17 mm L x 95.89 mm W (3.550 in L x 3.775 in W) Figure 2: Board Dimensions | www.rtd.com LAN25255HR/LAN35255HR User’s Manual RTD Embedded Technologies, Inc. -
Page 11: Connectors And Jumpers
10/100 Function MDI_A+ Transmit + MDI_A- Transmit - MDI_B+ Receive + MDI_C+ Not Used MDI_C- Not Used MDI_B- Receive - MDI_D+ Not Used MDI_D- Not Used Table 4: RJ45 Signal Assignments | www.rtd.com LAN25255HR/LAN35255HR User’s Manual RTD Embedded Technologies, Inc. -
Page 12: Status Leds
Function 10/100 Function CN5 Link at 10 Mbps Low when linked at 10 Mbps, blink for activity CN5 Link at 100 Mbps Low when linked at 100 Mbps, blink for activity | www.rtd.com LAN25255HR/LAN35255HR User’s Manual RTD Embedded Technologies, Inc. -
Page 13: Bus Connectors
The LAN25255HR and LAN35255HR are “Universal” boards, and can connect to either a Type 1 or Type 2 PCIe/104 connector. CN3: PCI Connector The PCI connector is the connection to PCI peripheral modules. This connector is used only as a pass through connector on this board. | www.rtd.com LAN25255HR/LAN35255HR User’s Manual RTD Embedded Technologies, Inc. -
Page 14: Steps For Installing
10. Attach any necessary cables to the PC/104 stack. 11. Re-connect the power cord and apply power to the stack. 12. Boot the system and verify that all of the hardware is working properly. Figure 4: Example 104™Stack | www.rtd.com LAN25255HR/LAN35255HR User’s Manual RTD Embedded Technologies, Inc. -
Page 15: Functional Description
The Figure below shows the functional block diagram of the LAN25255HR. The various parts of the block diagram are discussed in the following sections. Figure 7: LAN25255HR/LAN35255HR and IDAN-LAN25255HR/LAN35255HR Block Diagram BroadCom Gig-Ethernet Switch The main component of the LAN25255HR is the BroadCom BCM53115 Gigabit Ethernet switch. This is an industrial temperature rated, 5 port Gigabit Ethernet switch. -
Page 16: Onboard Leds And External Led Connectors
LED circuitry. These signals are can source or sink 24 mA and the connector has jumper options for 3.3 volt or ground to facilitate external LED configuration. | www.rtd.com LAN25255HR/LAN35255HR User’s Manual RTD Embedded Technologies, Inc. -
Page 17: Idan Connections
Weight: Approximately 0.21 Kg (0.46 lbs.) • Dimensions: 151.972 mm L x 129.978 mm W x 16.993 mm H (5.983 in L x 5.117 in W x 0.669 in H) Figure 5: IDAN Dimensions | www.rtd.com LAN25255HR/LAN35255HR User’s Manual RTD Embedded Technologies, Inc. -
Page 18: Idan Versions
IDAN Versions The IDAN-LAN25255HR and IDAN-LAN35255HR feature rugged 9-pin “D” connectors. For IDAN versions with RJ-45 connectors see RTD’s StackNet line of expandable managed and unmanaged switches. 5.3.1 IDAN-LAN25255HR IDAN-LAN35255HR This utilityModule is an IDAN configuration with 9-pin “D” connectors. The module comes with four 9-pin “D” to RJ45 adapters as shown below. -
Page 19: Steps For Installing
Module Part#: Adam Tech DE09PD Mating Part#: Adam Tech DE09SD The Ethernet signals on the IDAN-LAN25255HR and IDAN-LAN35255HR are available on a male, DB-9 connector. A DB-9 to RJ-45 adapter is also included for each port. DB-9 Pin 1000 Function... - Page 20 Figure 6: Example IDAN System | www.rtd.com LAN25255HR/LAN35255HR User’s Manual RTD Embedded Technologies, Inc.
-
Page 21: Troubleshooting
If problems persist, or you have questions about configuring this product, contact RTD Embedded Technologies via the following methods: Phone: +1-814-234-8087 E-Mail: techsupport@rtd.com Be sure to check the RTD web site (http://www.rtd.com) frequently for product updates, including newer versions of the board manual and application software. | www.rtd.com LAN25255HR/LAN35255HR User’s Manual RTD Embedded Technologies, Inc. -
Page 22: Additional Information
A copy of the latest PC/104 specifications can be found on the webpage for the PC/104 Embedded Consortium: www.pc104.org PCI and PCI Express Specification A copy of the latest PCI and PCI Express specifications can be found on the webpage for the PCI Special Interest Group: www.pcisig.com | www.rtd.com LAN25255HR/LAN35255HR User’s Manual RTD Embedded Technologies, Inc. -
Page 23: Limited Warranty
During the one year warranty period, RTD Embedded Technologies will repair or replace, at its option, any defective products or parts at no additional charge, provided that the product is returned, shipping prepaid, to RTD Embedded Technologies. All replaced parts and products become the property of RTD Embedded Technologies. - Page 24 RTD Embedded Technologies, Inc. 103 Innovation Boulevard State College, PA 16803 USA Telephone: 814-234-8087 Fax: 814-234-5218 www.rtd.com sales@rtd.com techsupport@rtd.com Copyright 2017 by RTD Embedded Technologies, Inc. All rights reserved.
