Ceiling Mount Installation - Optoma EH416 Manual

N
N
ote ote
Please note that
damage resulting from
incorrect installation will
invalidate the warranty.
Warning:
1. If you buy ceiling
mount from other
company, please
be sure to use
the correct screw
size. Screw size
will be different on
different mounts. It
depends on the plate
thickness.
2. Be sure to keep
at least 10cm gap
between the ceiling
and the bottom of the
projector.
3. Avoid installing the
projector near a heat
source.

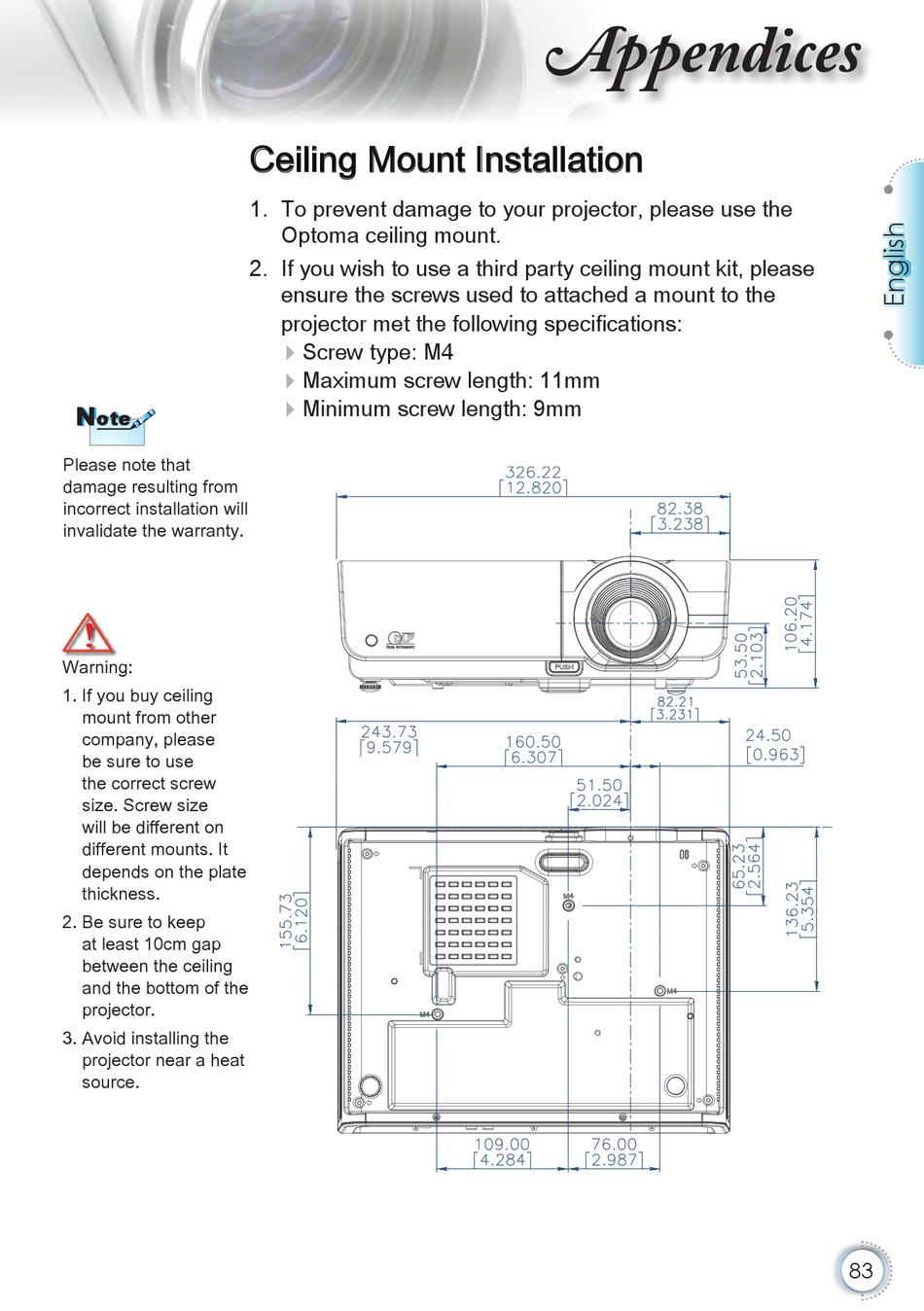

Ceiling Mount Installation

1. To prevent damage to your projector, please use the
Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please
ensure the screws used to attached a mount to the
projector met the following specifications:
Screw type: M4

Maximum screw length: 11mm

Minimum screw length: 9mm

Appendices
83
