Installation
N N
ote ote
300" (overdrive) for
Asia.
16

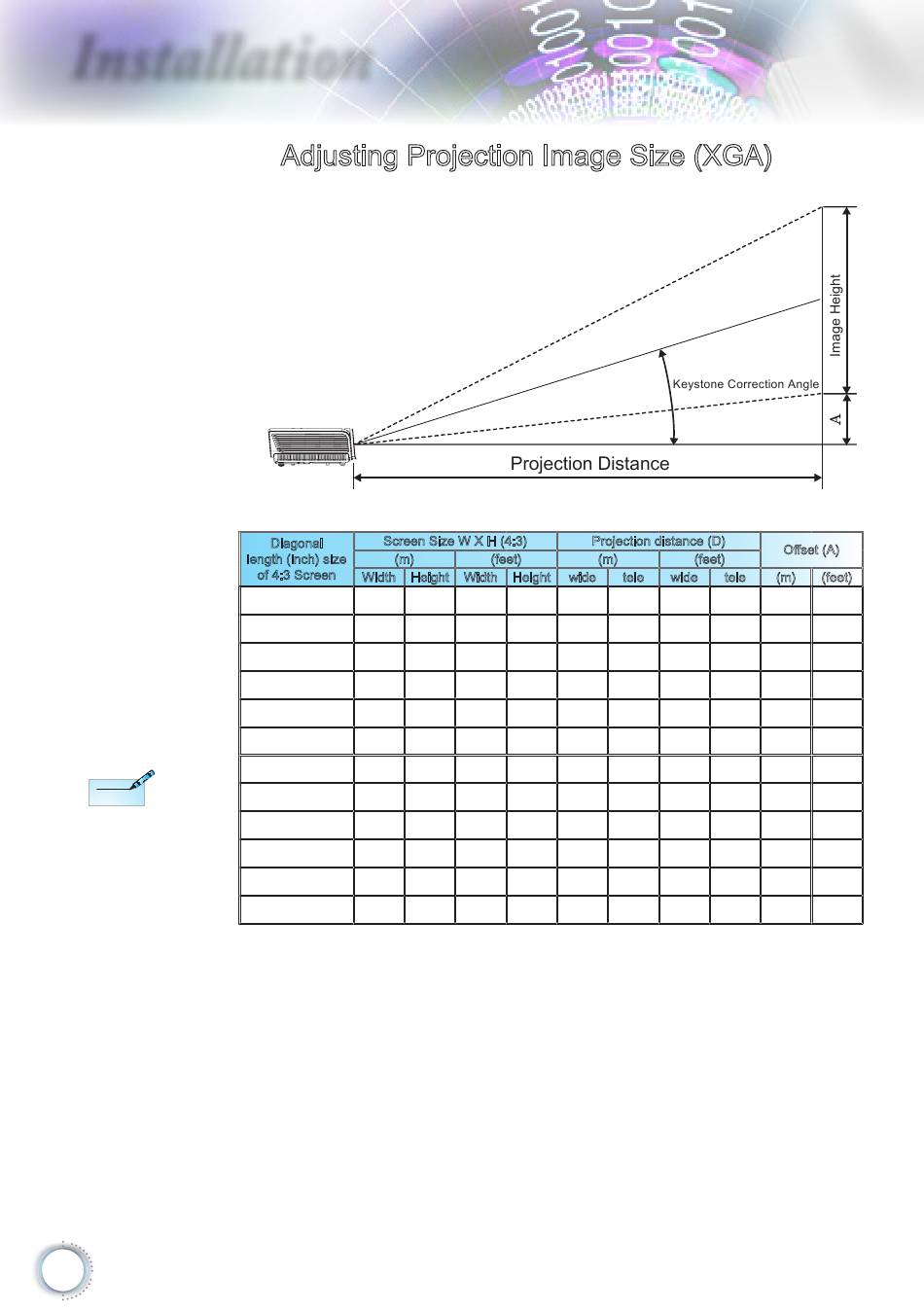

Adjusting Projection Image Size (XGA)

Screen Size W X H (4:3)
Diagonal
length (inch) size (m)
of 4:3 Screen
Width Height
30" 0.61 0.46
40" 0.81 0.61
60" 1.22 0.91
80" 1.63 1.22
100" 2.03 1.52
120" 2.44 1.83
140" 2.84 2.13
160" 3.25 2.44
190" 3.86 2.90
230" 4.67 3.51
280" 5.69 4.27
300" 6.10 4.57
Projection distance (D)
(feet) (m)
Width Height wide tele
2.00 1.50 1.10 1.28
2.67 2.00 1.46 1.71
4.00 3.00 2.19 2.56
5.33 4.00 2.93 3.41
6.66 5.00 3.66 4.27
8.00 6.00 4.39 5.12
9.33 7.00 5.12 5.97
10.66 8.00 5.85 6.83
12.66 9.50 6.95 8.11
15.33 11.50 8.41 9.81
18.66 14.00 10.24 11.95
19.99 15.00 10.97 -
Offset (A)
(feet)
wide tele (m) (feet)
3.60 4.20 0.06 0.19
4.80 5.60 0.08 0.25
7.20 8.40 0.11 0.37
9.60 11.20 0.15 0.49
12.00 14.00 0.19 0.62
14.40 16.80 0.23 0.74
16.80 19.59 0.26 0.86
19.20 22.39 0.30 0.99
22.79 26.59 0.36 1.17
27.59 32.19 0.43 1.42
33.59 39.19 0.53 1.73
35.99 - 0.56 1.85
