N N
ote ote
• The projector
table or stand
should be level
and sturdy.
• Position the
projector so that
it is perpendicular
to the screen.
• For personal
safety, please
secure the cables
properly.
N N
ote ote
Lens Shift is not
available in 1080p short
throw.

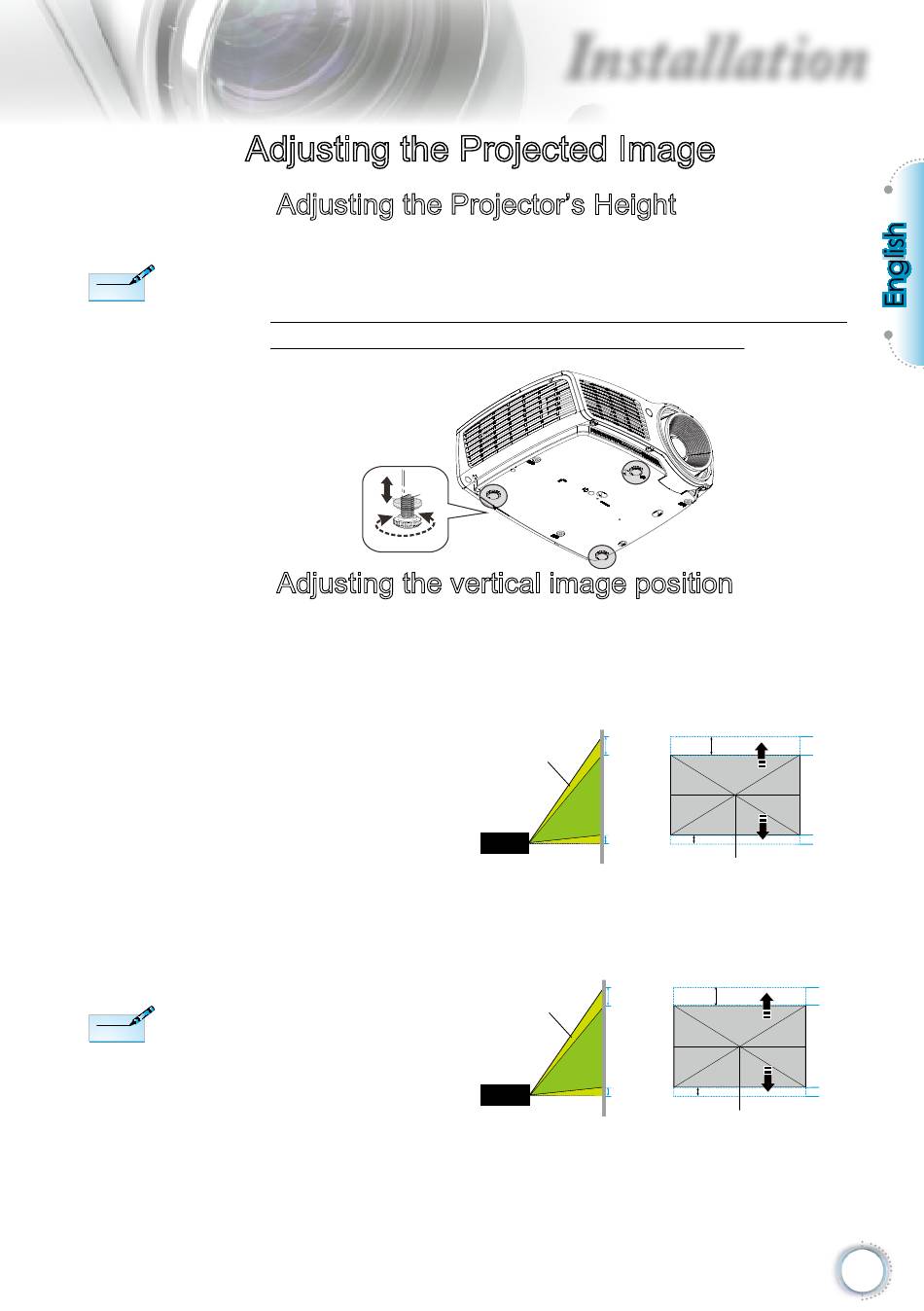

Adjusting the Projected Image

Adjusting the Projector's Height

The projector is equipped with tilt-adjuster feet for
adjusting the image height.
To adjust the angle of the picture, turn the tilt-adjuster right
or left until the desired angle has been achieved.

Adjusting the vertical image position

The Lens Shift function can be used to adjust the
position of the vertically.
Lens shift adjustment for WXGA
The display position
can be shifted upward
up to 7% and down to
4.5% elevation of the
display.
Lens shift adjustment for 1080P
The display position
can be shifted upward
and down to
up to 9%
5%
elevation of the
display.
Installation
Lens shift adjustable range
7%V
Shift to top
1V
4.5%V
Lens shift adjustable range
9%V
Shift to top
1V
5%V
Shift range 7%
Shift range
4.5%
Lens shift center position
Shift range 9%
Shift range 5%
Lens shift center position
