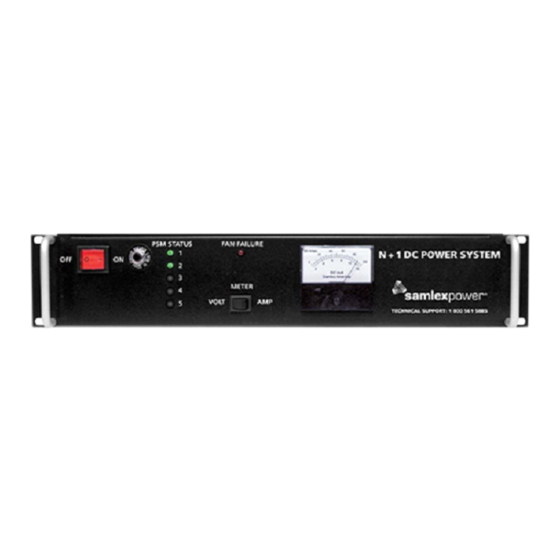

N + 1 DC Power
System
SEC-40BRM-230
SEC-60BRM-230
SEC-80BRM-230
SEC-100BRM-230
owner's
Please read this
manual BEfoRE
Manual
installing your
N + 1 DC Power
System

Advertisement

Table of Contents
loading

Summary of Contents for Samlexpower SEC-40BRM-230

  • Page 1 N + 1 DC Power owner's Please read this manual BEfoRE Manual System installing your N + 1 DC Power SEC-40BRM-230 System SEC-60BRM-230 SEC-80BRM-230 SEC-100BRM-230...
  • Page 2: Table Of Contents

    OwNer'S MaNual | Index Section 1 Important Safety Instructions ..........4 Section 2 Description & Application ............ 6 Section 3 Design & Principle of Operation ........... 7 Section 4 Cooling & Warning for Fan Failure ........8 Section 5 Front Panel Controls & Indicators ......... 8 Section 6 Rear Panel Controls ..............
  • Page 3 Section 13 Limiting Electromagnetic Interference ........ 18 Section 14 Specifications ..............20 Section 15 Appendix: Figures 1 to 3 ............ 21 Section 16 Warranty ................. 23 SAMLEX AMERICA INC. | 3...
  • Page 4: Important Safety Instructions

    SeCtION 1 | Important Safety Instructions The following safety symbols will be used in this manual to highlight safety and information: WARninG! Indicates possibility of physical harm to the user in case of non-compliance. cAUtion! Indicates possibility of damage to the equipment in case of non-compliance. inFo Indicates useful supplemental information.
  • Page 5 (Up to 6' diStAnce) SEC-100BRM-230 100A # 2 Awg SEC-80BRM-230 # 4 Awg SEC-60BRM/SEC-40BRM-230 uP To 60A # 6 Awg Ensure that the AC power is switched off when any device is being connected to the power supply. SAMLEX AMERICA INC. | 5...
  • Page 6: Description & Application

    SeCtION 1 | Important Safety Instructions do not AlloW the ends of the positive and negative wires to touch each other. Fuse Replacement Ensure properly rated fuse (250V, 4A) is used in each of the modules. environment do not expose power supply to rain, snow or water spray dis-assembly And Repair The power supply should be disassembled or repaired by a qualified technician.
  • Page 7: Design & Principle Of Operation

    • SEC-100BRM-230 HAS 5 PSMs of 20A EACh PRoVIDINg A ToTAL of 100A • SEC-80BRM-230 HAS 4 PSMs of 20A EACh PRoVIDINg A ToTAL of 80A • SEC-60BRM-230 HAS 3 PSMs of 20A EACh PRoVIDINg A ToTAL of 60A • SEC-40BRM-230 HAS 2 PSMs of 20A EACh PRoVIDINg A ToTAL of 40A SAMLEX AMERICA INC. | 7...
  • Page 8: Cooling & Warning For Fan Failure

    SeCtION 4 | Cooling & warning for Fan Failure The heat generated due to internal power dissipation is removed by forced cooling through two high power D.C. fans mounted at the back of the unit which suck air from The vents on the sides of the unit & blow outwards from the rear of the unit. it is extremely important that the discharge side of the fans and the suction sides of the vent slots are not blocked.
  • Page 9: Rear Panel Controls

    SeCtION 6 | rear Panel Connectors The following output connectors have been provided (not shown). 1. load+ (positive), load- (negative) load connectors – for connecting to the D.C. load. 2. battery+ (positive), battery- (negative) battery connectors – for connecting external battery for un-interrupted D.C.
  • Page 10: Protections

    LEDs will, however, remain illuminated, but dimmed. when the overload reaches approximately 140A for SEC-100BRM-230 or 112A for SEC-80BRM-230 or 84A for SEC-60BRM-230 or 56A for SEC-40BRM-230 (the output voltage will be approximately 2.7V), the unit will shut down (will enter hiccup mode). The PSM status LEDs will start flashing and PSM status signal for remote indication will oscillate between high and low.
  • Page 11: Operation Of Battery Backup

    SeCtION 8 | Installation & Operation Switch oN the unit by pressing the power oN/off switch to oN position. The switch will be illuminated confirming that input power is available. A short beep may be generated by the temperature fault alarm circuit on powering oN the unit .
  • Page 12 SeCtION 9 | Operation of Battery Back-up The voltage at the output terminals load + and load – will be as follows : At no external load approx. 14V At 10A load approx. 13.8V At loads > 10A approx. 13.8V minus 5mv per amp above 10A when there is a requirement of un-interrupted D.C.
  • Page 13: Output Voltage Adjustment

    SeCtION 9 | Operation of Battery Back-up note: The value of charge limiting resistors is based on a typical 100Ah deep cycle ma- rine battery. If a different type of battery is used, the value of the resistor should Be adjusted to meet associated charging requirements. SeCtION 10 | Output Voltage adjustment note: The voltages indicated are at no load and are measured at any of the module...
  • Page 14 SeCtION 10 | Output Voltage adjustment The voltage at the output terminals load + and load – will be as follows : AT NO EXTERNAL LOAD Module voltage minus 0.2V at 10a load module voltage minus 0.4V AT LoADS > 10A Module voltage minus 0.4V minus 5mv per amp above 10A procedure • Switch off the unit and unplug the power cord.
  • Page 15: Installation & Removal Of Modules

    SEC-40BRM / SEC-60BRM / SEC-80BRM-230 by steps of 20A to a maximum of 100A. for example, an SEC-40BRM-230 (40A, with 2 modules) can be upgraded to SEC-60BRM-230 (60A) by adding 1 more module or to SEC-80BRM-230 (80A) by adding 2 more modules or to SEC-100BRM-230 (100A) by adding 3 more modules.
  • Page 16 SeCtION 11 | Installation & removal of Modules ing and indication on page 5). An LED holder and a green LED with wire and female quick connect terminal are provided with the new module for connecting to the front panel. The vacant hole(s) for the front panel LEDs are closed with plastic plug(s). Remove the plastic plug from the vacant hole for the LED under the existing bottom most LED.
  • Page 17: Trouble Shooting

    SeCtION 12 | trouble-shooting poWeR on/oFF SWitch doeS not liGht When SWitched on Check that power is available in the AC outlet. - Check that the power cord plug is properly plugged in. bReAkeR tRipS The breaker has tripped due to abnormal condition. Call technical support. “FAn FAilURe”...
  • Page 18 SeCtION 13 | limiting electromagnetic Interference (eMI) 1. Switched mode power supplies (SMPS) employ high frequency switching and thus, are a source of radio interference, a recipient of radio interference and a conduit of radio interference (older linear type transformer based power supplies do not employ high frequency switching voltages and will be quieter as compared to switching type of supplies ).
  • Page 19 SeCtION 13 | limiting electromagnetic Interference (eMI) - As explained above, it may trip a gfCI feeding multiple AC outlet circuits / recepta- cles. In such cases, disconnect devices connected to the other AC. - outlet circuits / receptacles served by this gfCI. 6.
  • Page 20 SeCtION 14 | Specifications 230 Version models SpeciFicAtionS Sec-40bRm Sec-60bRm Sec-80bRm Sec-100bRm No. Of Modules Input Voltage Range 210 to 250V AC, 50/60 hz input current Input Current Output Voltage (At Terminals L+ & L- , See Page 12) - Nominal, VDC 13.8V 13.8V 13.8V...
  • Page 21 SeCtION 15 | appendix – Figures 1 to 3 LED1 LED2 NoT To SCALE JuMP1 Figure 1 - layout of power Supply module leGeND S1 to S4 holes for 4 Screws to fasten the Module to the Chassis S5 & S6 holes for 2 Screw to Connect to the Positive and Negative output Bus Bars l &...
  • Page 22 SeCtION 15 | appendix – Figures 1 to 3 Figure 3. continuity of "daisy chain" connections Removing any end module (example PSM1/PSM5 in fig. 2 Above) does not break the daisy chain. however, if any of the sandwiched modules (example PSM 2, 3, 4) is removed, the daisy chain is broken. In this case, the unused female socket for the missing sandwiched module(s) should be shorted by inserting a shorting link to prevent a break in the daisy chain (fig.3)  ...
  • Page 23 2 yeAR limited WARRAnty SEC-40BRM-230, SEC-60BRM-230, SEC-80BRM-230 and SEC-100BRM-230 manufactured by Samlex America, Inc. (the “warrantor“) is warranted to be free from defects in work- manship and materials under normal use and service. The warranty period is 2 years for the united States and Canada, and is in effect from the date of purchase by the user (the “Purchaser“).
  • Page 24 Contact Information Toll Free Numbers Ph: 800 561 5885 Fax: 888 814 5210 Local Numbers Ph: 604 525 3836 Fax: 604 525 5221 Website www.samlexamerica.com USA Shipping Warehouse Kent WA Canadian Shipping Warehouse Delta BC Email purchase orders to orders@samlexamerica.com 11001-SEC-40-60-80-100-BRM-230-0715...
