- Page 1 Switch Mode owner's Please read this manual BEforE Manual DC Power installing unit Supply with Battery Backup SEC-1223BBM...
-
Page 2: Table Of Contents
Owner'S Manual | Index Section 1 Safety Instructions ..............3 Section 2 Layout, Output Connection & Dimensions ......5 Section 3 Description & Principle of Operation ........6 Section 4 Protections ................8 Section 5 Installation ................ 10 Section 6 Operation ................ -
Page 3: Safety Instructions
SeCtIOn 1 | Safety Instructions IMPORTANT SAFETY INSTRUCTIONS SAVe tHeSe inStRUctionS This manual contains important Safety and operating Instructions. Please read before using this unit . The following safety symbols will be used in this manual to highlight safety and information: WARninG! Indicates possibility of physical harm to the user in case of non-compliance. - Page 4 SeCtIOn 1 | Safety Instructions 3-prong, grounded female receptacle (NEMA5-15r). The size of the current carrying conductors should be such that they are able to carry at least 10A for the length of the extension. 7. Place the unit in an area that will allow air to flow freely around the unit. Do NoT block or obstruct vent openings on the sides and at the bottom or install the unit in an enclosed compartment.
-
Page 5: Layout, Output Connection & Dimensions
SeCtIOn 2 | layout, Output Connection & Dimensions SEC-1223BBM 12V BATTERY 12V DC LOAD BOTTOM VIEW LeGenD 1. Lighted Power oN /off rocker Switch (Lights red when oN) 2. AC Power Cord Inlet – Type “IEC 320-C14” (Detachable Power Cord with “IEC 320-C13” connector on one end and NEMA5-15P Plug on the other end is provided with the unit) 3. -
Page 6: Description & Principle Of Operation

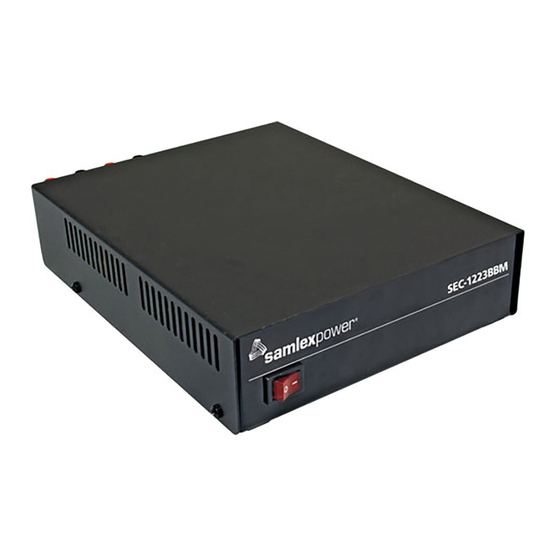

Description & Principle of Operation DeScRiPtion SEC-1223BBM is a Switch Mode Power Supply (SMPS), which converts 120 VAC, 50/60 Hz to regulated 13.8VDC at 23A continuous. It has additional provision for battery backup with charging in conjunction with external 12V Lead Acid Battery. -
Page 7: Principle Of Operation
SeCtIOn 3 | Description & Principle of Operation • Cooling by temperature controlled fan improves efficiency and prolongs life of the fan • UL safety listed as “Information Technology Equipment Power Supply” for USA (UL Standard ANSI/UL-60950-1) and for Canada (CSA Standard CAN/CSA-C22.2 No. 60950-1) • Complies with FCC Part 15(B), Class B for limits on conducted and radiated Electromag- netic Interference (EMI) PRinciPLe oF oPeRAtion Please refer to the Layout at fig. 2.1. The unit consists of 2 Sections - Switch Mode Power Supply (SMPS) Section and Battery Backup and Charging Section. -
Page 8: Protections
SeCtIOn 3 | Description & Principle of Operation note: the fan may not switch on at all in case of low loads or in colder ambient temperatures because the temperature of the transformer windings may not rise to threshold of ≥ 60°c ± 5°c / 140°F ± 9°F under these conditions. In case the fan fails or if the cooling is not adequate due to higher ambient tempera- ture, inadequate air circulation or blockage of ventilation openings, the temperature of the transformer windings will rise. -
Page 9: Over Temperature Protection
SeCtIOn 4 | Protections Battery Backup Function is Used - external Battery is connected If the load tries to draw current higher than the current limit value of 25A of the Power Supply Section, the output voltage of the Power Supply Section will not be regulated and the voltage at the Load Terminals (3, 4) will drop. -
Page 10: Installation
SeCtIOn 4 | Protections In case the fan fails or if cooling is not adequate due to higher ambient temperature or inadequate air circulation or blockage of air ventilation openings, the temperature of the output power transformer windings will rise and at temperature ≥ 105°C ± 5°C / 221°f ±... - Page 11 SeCtIOn 5 | Installation After crimping the Terminal Lugs, use insulating heat shrink tubing or tape to insulate the bare cylindrical portion of the lug. Load connection: The load is connected to the terminals marked “Load +” (4) and “Load - ” (3) through 32V, 25A fuse (f2) (See details below under heading “External fuses”).
- Page 12 SeCtIOn 5 | Installation resistance). Excessive voltage drop across the length of wires connecting the power source to the load produces excessive power loss and may also shut down the load due to under voltage created at the load end. Hence, the voltage drop should be kept to the minimum at around 2% by using thicker wires for longer distances.
-
Page 13: Operation
SeCtIOn 6 | Operation Please refer to fig 2.1, page 5 - Layout & output Connections. cAUtion! If AC input power is not available and a battery has been connected for backup function, the load will be powered by the battery and the battery will continue to discharge as long as the load is in oN condition. - Page 14 SeCtIOn 6 | Operation cHARGinG AnD BAcKUP oPeRAtion Charging current will be proportional to the discharged state of the battery and is lim- ited to maximum of 4A when the battery is completely discharged (Standing Voltage of 11.4V). The current will taper down from 4A as the battery gets charged and its voltage rises.
-
Page 15: Limiting Electro-Magnetic Interference (Emi)
SeCtIOn 7 | limiting electro-Magnetic Interference (eMI) cAUtion! Conducted and radiated noises in this unit are limited as per the applicable National / International Standards. In North America, the applicable standard is fCC Part 15(B) for Class “B” Digital Devices for residential Installations. The corresponding European standard is EN55022, Class “B”... - Page 16 SeCtIOn 7 | limiting electro-Magnetic Interference (eMI) Then, if necessary, relocate either the antenna or the power supply farther apart. The receiver may “hear” the power supply. A slowly moving, slightly buzzing carrier heard in the receiver may be caused by the antenna being too close. As with the transmitter related noise pick up, a loose coaxial connector or a broken or a missing ground may aggravate this problem.
- Page 17 SeCtIOn 7 | limiting electro-Magnetic Interference (eMI) proportional to the person’s skin resistance will flow through the person’s body to Earth Ground. The leakage current through the body is higher when the skin contact resist- ance is lower i.e. if the skin is wet or wounded. This leakage current does not return to the power source but is dissipated in Earth Ground.
-
Page 18: Troubleshooting Guide
SeCtIOn 8 | troubleshooting Guide oPeRAtion AS A SiMPLe PoWeR SUPPLY - onLY LoAD iS connecteD. no eXteRnAL BAtteRY AnD no BAtteRY BAcKUP. Symptom Possible cause Remedy ON / OFF Switch is ON No AC power from the Check AC power is available at the AC •... - Page 19 SeCtIOn 8 | troubleshooting Guide BAtteRY BAcKUP oPeRAtion - eXteRnAL BAtteRY iS connecteD Symptom Possible cause Remedy ON / OFF Switch is ON No AC power from the Check AC power is available at • Switch is NOT lighted AC outlet the AC outlet.
- Page 20 SeCtIOn 8 | troubleshooting Guide Symptom Possible cause Remedy ON / OFF Switch is ON 25A Fuse (F2) in the Load circuit is Remove the cause of the overload • Switch is lighted blown due to: or short circuit • There is no voltage at the at - Excessive short time overload the load end and the load is current >...
-
Page 21: Specifications
SeCtIOn 9 | Specifications cAteGoRY PARAMeteR SPeciFicAtion Input Voltage 120 VAC Nominal (+6% / -10%), 50/60 Hz Input Current 5.5A @ 120 VAC AC INPUT Input Current at No Load 53 mA ± 10% Inrush current at Startup 28A ±5% for 2.8 ms Output Voltage at Load Terminals 13.8VDC ±... - Page 22 SeCtIOn 9 | Specifications cAteGoRY PARAMeteR SPeciFicAtion AC Input Connection - “IEC 320-C14” Inlet Connector on the unit - Detachable Power Cord with: “IEC 320-C13” Connector on one end and NEMA5-15P Plug on the other end DC Output Connectors for Load Terminal with Tubular Hole - Diameter 5mm / INPUT / oUTPUT and Battery Connections...
-
Page 23: Warranty
2 YeAR LiMiteD WARRAntY SEC-1223BBM manufactured by Samlex America, Inc. (the “Warrantor“) is warranted to be free from defects in workmanship and materials under normal use and service. The warranty period is 2 years for the United States and Canada, and is in effect from the date of purchase by the user (the “Purchaser“). - Page 24 Information Toll Free Numbers Ph: 800 561 5885 Fax: 888 814 5210 Local Numbers Ph: 604 525 3836 Fax: 604 525 5221 Website www.samlexamerica.com USA Shipping Warehouse Kent WA Canadian Shipping Warehouse Delta BC Email purchase orders to orders@samlexamerica.com 11001-SEC-1223BBM-0413...
