Samlexpower SEC-1212 Owner's Manual

Desktop switching power supplies
Hide thumbs Also See for SEC-1212:

Advertisement

Table of Contents

Enlarged version
Desktop Switching
Power Supplies
Model:
SEC-1212
SEC-1223
Owner's
Please read this
manual before
Manual
operating your
unit

Advertisement

Table of Contents
loading

Related Manuals for Samlexpower SEC-1212

Summary of Contents for Samlexpower SEC-1212

  • Page 1 Desktop Switching Owner's Please read this manual before Manual Power Supplies operating your unit Model: SEC-1212 SEC-1223...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Topic Page Important safety instructions Description and features Connection and operation Cooling and fan control Battery charging and back up Trouble shooting Limiting Electromagnetic Interference Switching Power Supplies & RF Noise 8,9,10 Specifications Warranty...

  • Page 3: Important Safety Instructions

    CAUTION ! RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING—TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. THERE ARE NO USER SERVICEABLE PARTS INSIDE—REFER TO QUALIFIED SER- VICE PERSONNEL. IMPORTANT SAFETY INSTRUCTIONS Please read before using your power supply.

  • Page 4: Description And Features

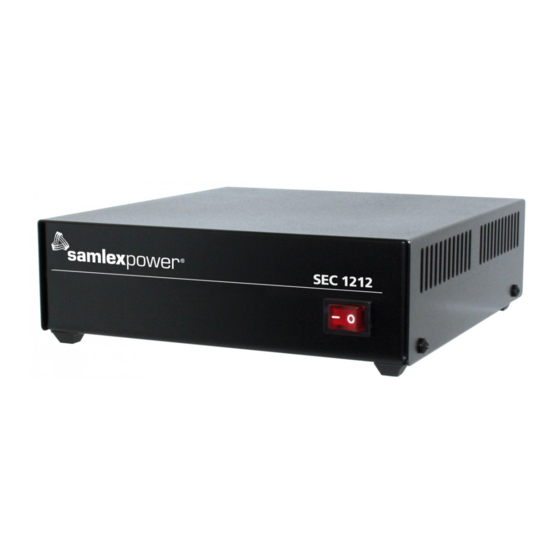

    DESCRIPTION SEC-1212/SEC-1223 are switched mode power supplies which convert 120 VAC, 60 HZ to regulated 13.8 VDC based on pulse width modulation ( PWM ) control. FEATURES BASED ON SWITCHED MODE TECHNOLOGY AND PWM CONTROL COMPACT AND LIGHTWEIGHT HIGH EFFICIENCY AND LESS HEAT DISSIPATION...

  • Page 5: Connection And Operation

    Your 12 V DC device may now be switched on. COOLING (SEC-1212) SEC-1212 is cooled by convection. Operate the unit in a cool, well venti- lated space. COOLING AND FAN CONTROL / THERMAL SHUT DOWN (SEC-1223) SEC-1223 is cooled by convection and forced air.

  • Page 6: Battery Charging And Back Up

    It is recommended that optional battery back-up module BBM-1225 may be used to convert SEC-1212/SEC-1223 for battery back-up application. TROUBLESHOOTING - GENERAL PROBLEM : Power ON/OFF switch does not illuminate when turned on.
  • Page 7 PROBLEM : The output voltage is 0 V or very low PROBABLE CAUSE SUGGESTED REMEDY Input voltage is very low Check that the input voltage is 120VAC The unit is in current limit condition Check the output terminals are not due to overload caused by large reactive shorted.

  • Page 8: Limiting Electromagnetic Interference

    LIMITING ELECTROMAGNETIC INTERFERENCE (EMI) This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15(B) of the FCC Rules. These limits are designed to provide reasonable protection against a harmful interference in a residential installation.

  • Page 9: Switching Power Supplies & Rf Noise

    SWITCHING POWER SUPPLIES AND RF NOISE Switched mode power supplies ( SMPS ) employ high frequency switching and thus, are a source of radio interference, a recipient of radio interference and a conduit of radio interference. ( Older linear type trans- former based power supplies do not employ high frequency switching voltages and will be quieter as compared to switching type of supplies ).
  • Page 10 The receiver may “hear” the power supply. A slowly moving, slightly buzzing carrier heard in the receiver may be caused by the antenna being too close. As with the transmitter related noise pick up, a loose coaxial connector or a broken or a missing ground may aggravate this problem. Normally these noises will be below the background or “band”...
  • Page 11 Following additional guidelines may be followed to reduce the effects of RF noise: Use additional appropriate AC radio frequency interference (RFI) power line filter immediately before the ac input of the power supply. Recommended: Corcom Inc. ( www.cor.com ) “Q” series. Filtered, ferrite coated cord set (www.emceupen.com ) is another choice.

  • Page 12: Specifications

    OUPUT CURRENT, CONTINUOUS SEC-1212 10 A SEC-1223 CURRENT LIMIT SEC-1212 SEC-1223 COOLING SEC-1212 - CONVECTION COOLED SEC-1223 - TEMPERATURE CONTROLLED FAN PROTECTIONS OVER CURRENT, SHORT CIRCUIT AND OVER VOLTAGE (Through PWM Controller) OVER TEMPERATURE SHUT DOWN (SEC-1223) ENVIRONMENTAL TEMP. RANGE SEC-1223...

  • Page 13: Warranty

    3 YEAR Limited Warranty SEC-1212/SEC-1223 manufactured by Samlex America, Inc. ( the “ Warrantor “ ) are warranted to be free from defects in workmanship and materials under normal use and service. This warranty is in effect for 3 years from the date of purchase by the user ( the “ Purchaser “ ) For a warranty claim, the Purchaser should contact the place of purchase to obtain a Return Authorization Number.
  • Page 14 Notes:...
  • Page 15 Attach copy of receipt here:...
  • Page 16 e-mail: samlex@samlexamerica.com 110-17 Fawcett Rd T: 604 525 3836 website: www.samlexamerica.com Coquitlam, B.C. F: 604 525 5221 Canada V3K 6V2 Vesion SEC1212_SEC1223(July2005)
