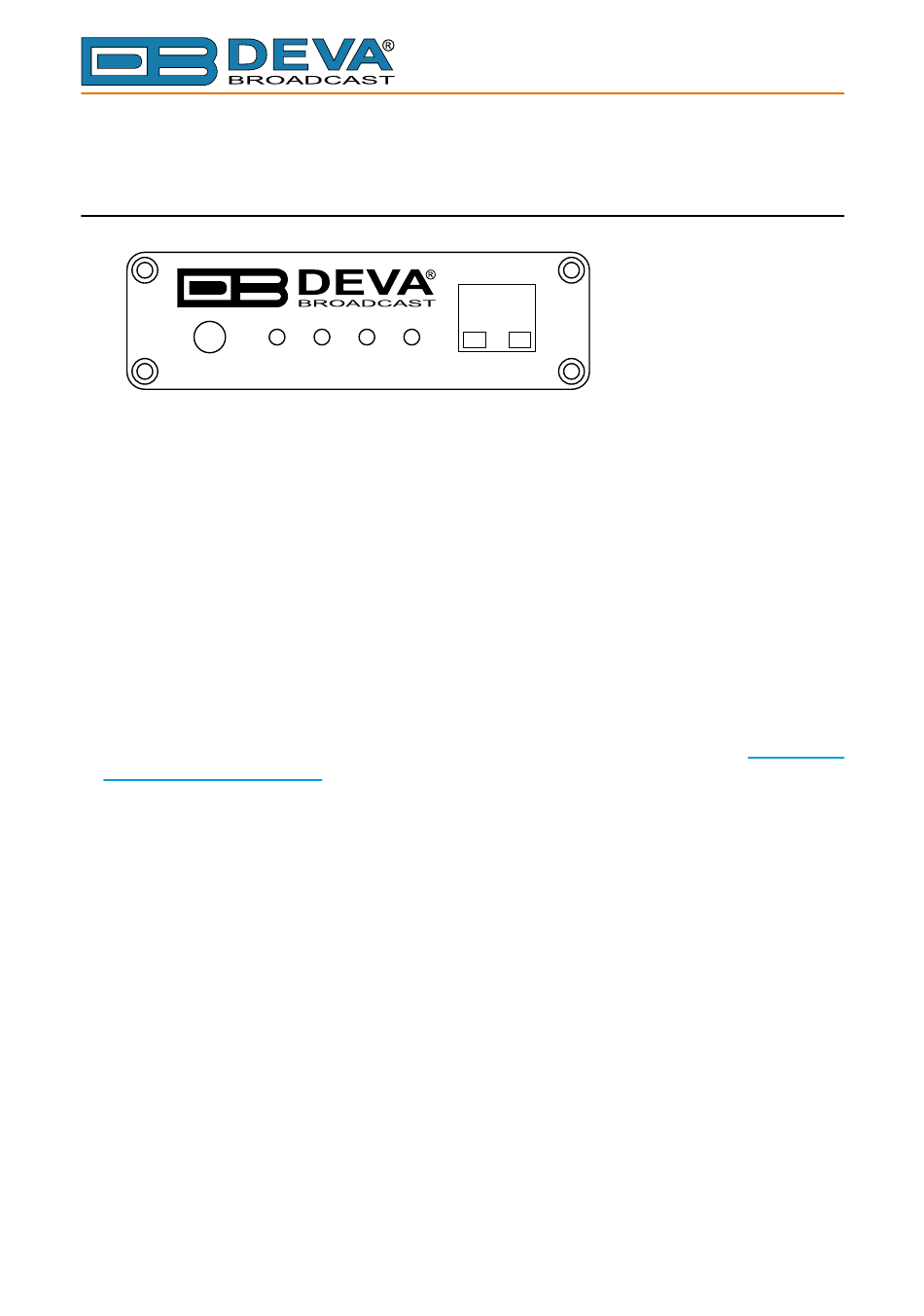

Panel Indicators and Appointments

PHONES

1 - Phones Output. The following audio signals are reproduced through the headphones:

Voice Announcement of DB90-TX IP Audio Encoder's IP address upon startup;

Audio signal from the selected input;

2 - Left Channel Level LED Indicator. This LED can be in one of the following states:

Off - the channel level is within norms;

Blinking – indication of low signal level;

Constantly lit – indication of high signal level;

3 - Right Channel Level LED Indicator. This LED can in one of the following states:

Off - the channel level is within norms;

Blinking – indication of low signal level;

Constantly lit – indication of high signal level;

4 - Connection LED Indicator. This LED can be in one of the following states:

Off - NO clients are connected to the encoder;

Blinking – at least one client is connected to the streamer;

Constantly lit – maximum allowable clients are connected to the streamer (see "Stream

Server Settings" on page 20);

5 - Power LED Indicator.

6 - LAN Port / Internet Input – standard RJ-45 port;

7 - Network Activity LED Indicator (RJ-45 built-in);

8 - Network Availability LED indicator (RJ-45 built-in);

BUSY

PWR
