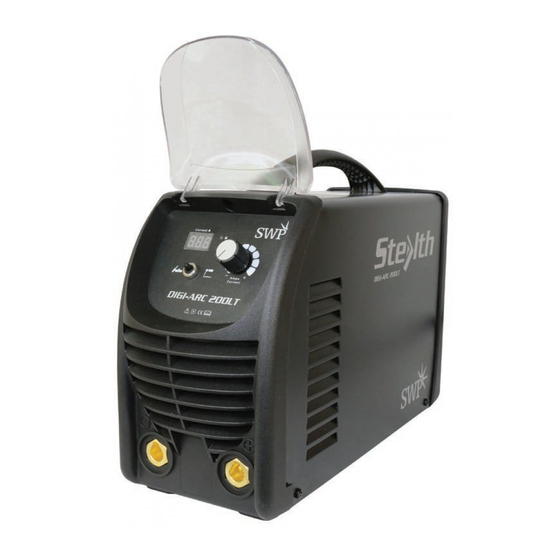

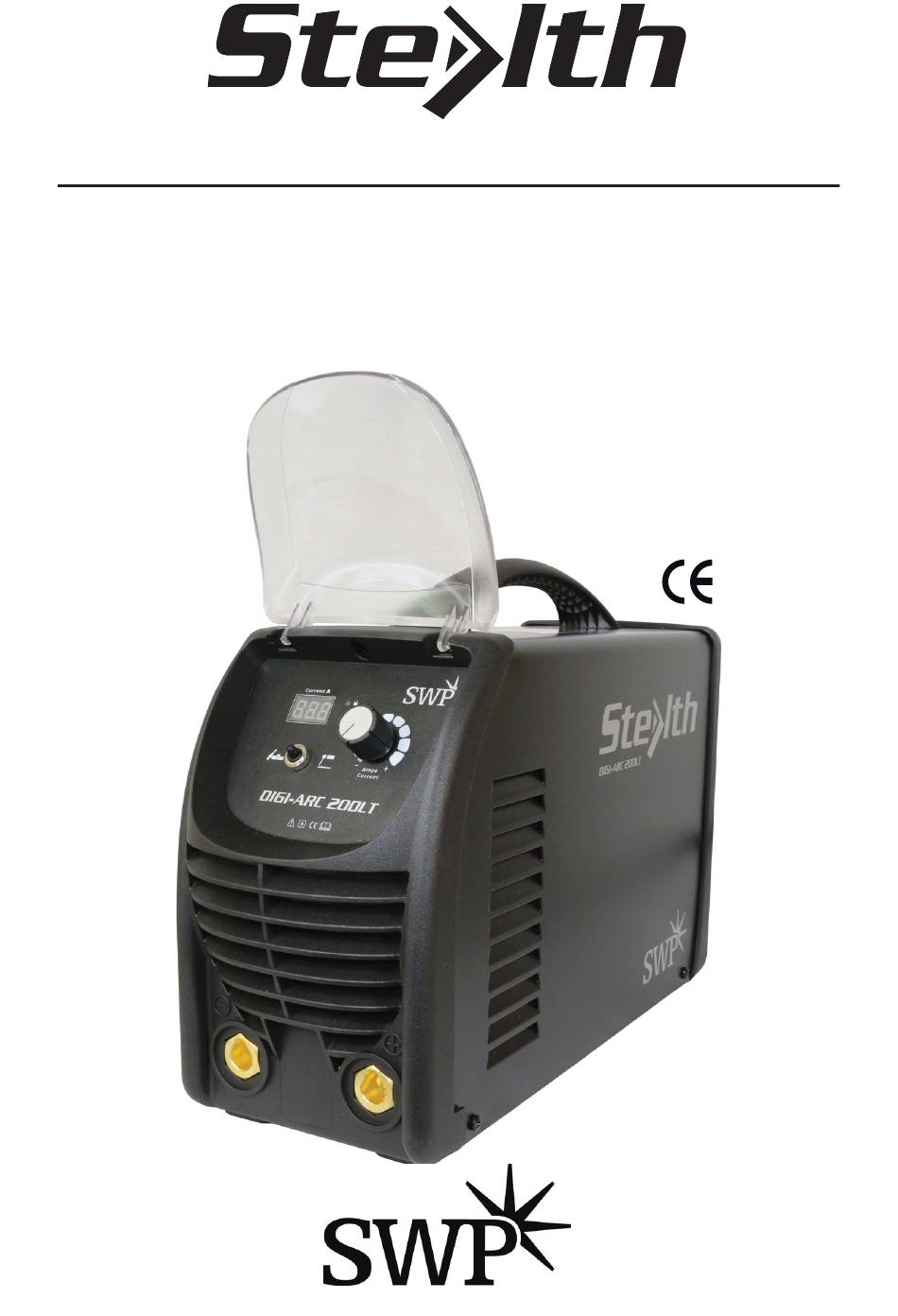

- Page 1 DIGI-ARC 200LT Part No. 9023H OPERATOR’S MANUAL...
- Page 2 STEALTH DIGI-ARC 200LT...
-
Page 3: Table Of Contents
STEALTH DIGI-ARC 200LT CONTENTS SAFETY SUMMARY MAIN ELECTRICAL DIAGRAM TECHNICAL INFORMATION OPERATION CONTROL AND CONNECTORS INSTALLATION & ADJUSTMENT 6.1 INSTALLATION 6.2 OPERATION 6.3 WELDING TABLE OPERATION NOTICES 7.1 INSTALLATION 7.2 SAFETY MAINTENANCE TROUBLESHOOTING AND SERVICE 10 PARTS LIST... -
Page 4: Safety
1. SAFETY STEALTH DIGI-ARC 200LT 1. SAFETY 1. SAFETY 1. SAFETY 1. SAFETY Welding may damage your body or others, so please take protection measure in SAFETY 1. SAFETY Welding may damage your body or others, so please take protection measure in operation. -
Page 5: Summary
Thus, it is characterized with portable, small size, light weight, low consumption and noise etc. Bluweld S series(discrete) has excellent performance: constant current STEALTH DIGI-ARC 200LT output makes welding arc more stable; fast dynamic response speed reduces the SUMMARY impact form the arc length fluctuation to the current. -
Page 6: Technical Information
STEALTH DIGI-ARC 200LT TECHNICAL INFORMATION DIGI-ARC 200LT Power Supply Voltage (V) 1~230±10% Frequency (Hz) 50/60 Rated Input Power (Kw) 6.8 MMA / 4.5 TIG Rate Input Current (A) 47 MMA / 32 TIG 60% 200A Duty cycle (40ºC / 10 min) -
Page 7: Operation Control And Connectors
STEALTH DIGI-ARC 200LT OPERATION CONTROL AND CONNECTORS Positive output: connect welding to the clamp. 6. Installation & Adjustment Negative output: connect to pliers. Note: Please follow steps in strictly accordance with installation! Welding current adjustment knob: turn to adjust the output current size. -
Page 8: Installation & Adjustment
STEALTH DIGI-ARC 200LT INSTALLATION & ADJUSTMENT Note: Please follow steps in strict accordance with installation instructions! Electrical connection must be disconnected after power is switched off! Equipment protection level is IP23. Do not use in the rain! Installation 6.1.1 Each machine is fitted with a power cable based on the input voltage connected to the appropriate selection. -
Page 9: Welding Table
STEALTH DIGI-ARC 200LT Welding Table Note: The following table applies to low-carbon steel. For other materials, please refer to related information. Electrode diameter Recommended welding Recommended welding (mm) current (A) voltage (V) 20~60 20.8~22.4 44~84 21.76~23.36 60~100 22.4~24 80~120 23.2~24.8 108~148 23.32~24.92... -
Page 10: Maintenance
STEALTH DIGI-ARC 200LT 7.2.3 Prevent over-voltage The welding voltage within the circuit will automatically compensate to ensure the welding current is in the permitted range. If the voltage exceeds the allowable value it can damage the machine. The welder should be fully aware of this and take appropriate preventive measures. -
Page 11: Troubleshooting And Service
STEALTH DIGI-ARC 200LT TROUBLESHOOTING AND SERVICE Common faults and solutions: Symptom Solution Power indicator does not light, fan does not – Make sure the power switch is turned on. turn, no welding output – Confirm that the power input cable is connected to electricity. -
Page 12: Parts List
9023H-22 MAIN CONTROL PCB 9023H-27 RECTIFIER – USE 9011H-29 9023H-30 COMPLETE MAIN PCB Specialised Welding Products Ltd Unit 1, Farringdon Industrial Centre, Farringdon, Nr Alton, Hampshire GU34 3DD, UK tel: +44 (0)1420 588180 • fax: +44 (0)1420 588184 • email: sales@swp.uk.net...
