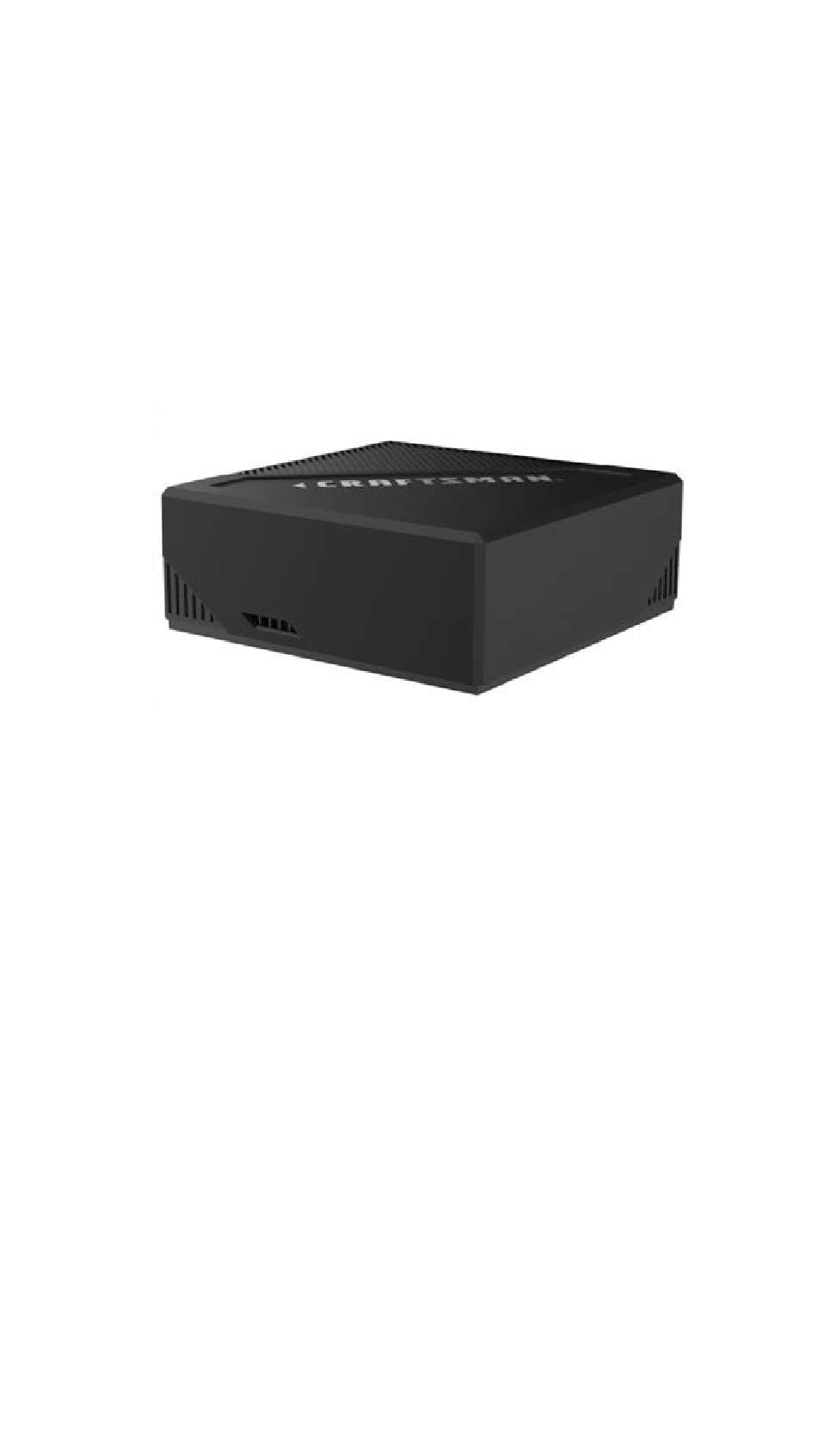

- Page 1 NA503S-4G Multiple RF Home Gateway...
-
Page 2: Table Of Contents
User Guide Table of Contents CHAPTER 1 INTRODUCTION....................1 Package Contents ......................1 Features ..........................1 LEDs ........................... 2 CHAPTER 2 INITIAL INSTALLATION ................4 Requirements ........................4 Procedure ........................... 4 SIM Card Installation ....................... 5 CHAPTER 3 CONFIGURATION ................... 6 Configuration ........................ -
Page 3: Chapter 1 Introduction
Chapter 1 Introduction This Chapter provides an overview of the Multiple RF Home Gateway's fea- tures and capabilities. Congratulations on the purchase of your new Multiple RF Home Gateway. The Multiple RF Home Gateway is a consumer electronic device, which is designed to bridge all appliances of your home, from IP cameras to sensors, and allow you to monitor and manage them over the Internet. -
Page 4: Leds
LEDs Front Panel The Multiple RF Home Gateway has 1 Multi-Color LEDs. On - Power On/Normal Operation POWER (Green) Off - Power Off Rear/Side Panel Connect the supplied power adapter here. Power Port Use a standard LAN cable (RJ45 connector) to connect your PC to the ETHERNET Port port. - Page 5 Button Panel On – System is powered by battery (default). Battery on/off switch Off – System is not powered by battery, but could be charged if AC adapter is plugged into device.
-
Page 6: Chapter 2 Initial Installation
Chapter 2 Initial Installation This Chapter covers the software installation of the Multiple RF Home Gate- way. Requirements Use a standard 10/100/1000 Base T network (UTP) cable with RJ45 connector. Procedure 1. Choose an Installation Site This Gateway is designed for using in fixed position. Please select a suitable place to install the Multiple RF Home Gateway. -
Page 7: Sim Card Installation
Initial Installation SIM Card Installation Ensured the device is powered off. Remove the screws on the back cover of the device with a screwdriver. Find the location of the SIM card tray. Push the SIM card cover upward. Insert the SIM card into the slot. Make sure the SIM card is installed correctly. -
Page 8: Chapter 3 Configuration
Chapter 3 Configuration This Chapter provides Setup details of the Gateway. Configuration The Multiple RF Home Gateway can offer customers with seamless communication between devices and clouds while at home or away. This gateway is designed to provide complete connectivity with all certified devices including cameras, security systems and WiFi/ZigBee/Z- Wave/BLE client devices. -
Page 9: Appendix A Specifications
Appendix A Specifications Multiple RF Home Gateway Model Multiple RF Home Gateway Dimensions 145mm(W) * 145mm(D) * 540mm(H) Operating Temperature 0 C to 40 C Buttons Network Protocol: TCP/IP Network Interface: 1 * 10/100/1000BaseT (RJ45) LAN connection LEDs Battery 2S1P 18650 Battery SIM Card Slot Power Adapter 12V, 2A... - Page 10 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
