Chapter 1 Introduction This Chapter provides an overview of the ZigBee Home Monitoring Gate- way's features and capabilities. Congratulations on the purchase of your new ZigBee Home Monitoring Gateway. The ZigBee Home Monitoring Gateway is a consumer electronic device, which is used for home monitor- ing and security.

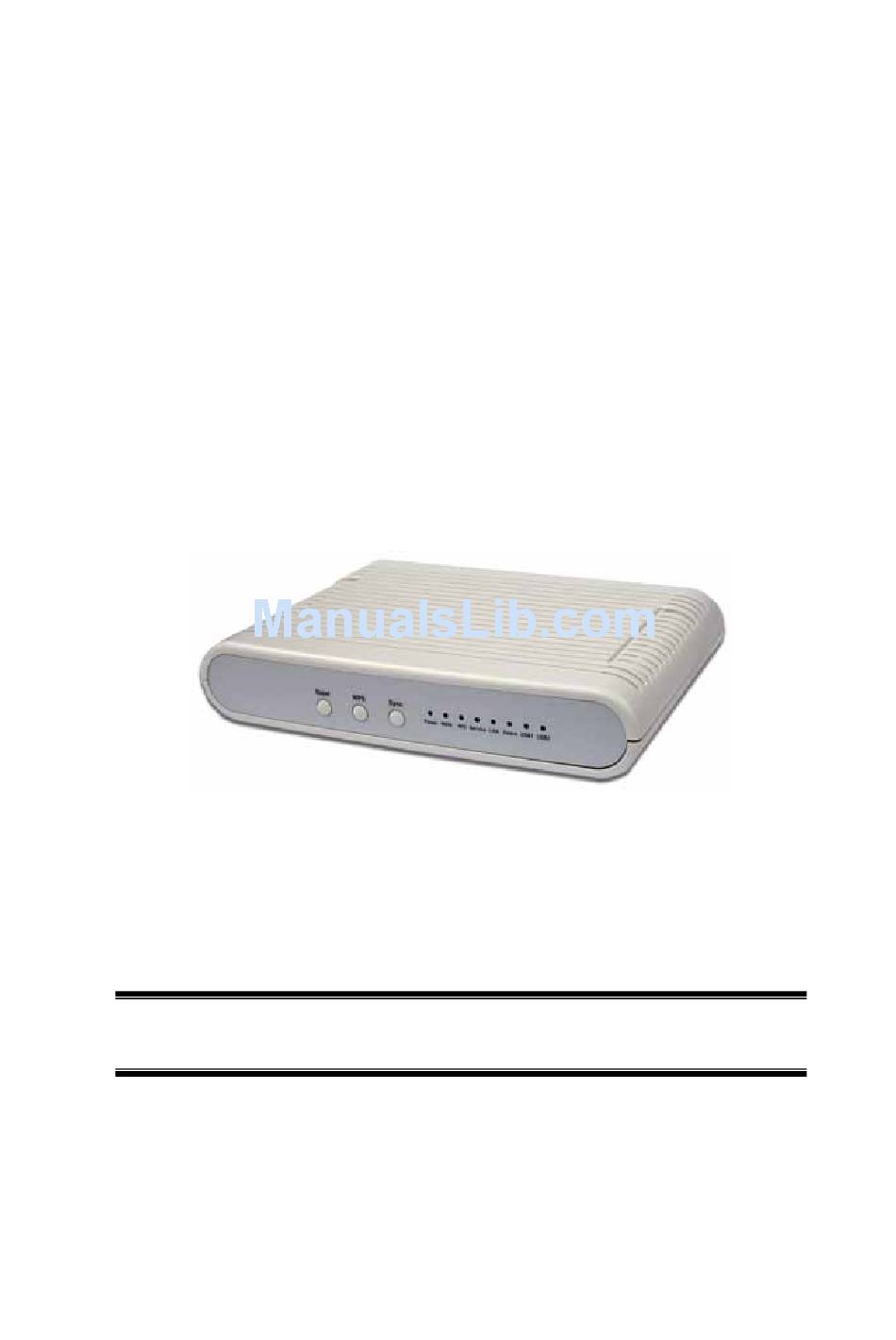

LEDs Front-mounted LEDs The ZigBee Home Monitoring Gateway has 8 LEDs. This button has two (2) functions: Reset • Reboot. When pressed and released, the ZigBee Home Monitoring Gateway will reboot (restart). • Clear All Data. This button can also be used to clear ALL data and restore ALL settings to the factory default values.
Page 5
• On (Amber) - Problem occurred while trying to enable the WPS function. • On (Green) - WPS function is enabled. • Flashing - Data is being transmitted or received via the connection. • Service On (Green)- Open for Sensor Binding (Add) •...
Rear Panel Connect the DSL or Cable Modem here. If your modem came with a WAN port cable, use the supplied cable. Otherwise, use a standard LAN cable. (10/100BaseT) LAN (1~4) Port Use standard LAN cables (RJ45 connectors) to connect your PCs to these ports.
Chapter 2 Initial Installation This Chapter covers the software installation of the ZigBee Home Monitoring Gateway. Requirements • Network cables. Use standard 10/100BaseT network (UTP) cables with RJ45 connectors. Procedure 1. Choose an Installation Site Select a suitable place to install the ZigBee Home Monitoring Gateway. 2.
Chapter 3 Board Description This Chapter provides board description for the ZigBee Home Monitoring Gateway. Components and connectors...
Page 9
• 1. USB type A connector • 2. LAN port • 3. WAN port • 4. Expansion slot connectors • 5. Push buttons. • 6. Console port • 7. LEDs • 8. RT3662 processor • 9. DC power jack...
Page 10
Console port connection guide For platform debugging, please locate the console cable accompanied with the development kit. Then follow the steps illustrated below: Pin definition 1. Connect cable to console port 2. Execute minicom on Linux host machine...
Page 11
3. Press Ctrl+A then Z to enter minicom configuration 4. Set Comm port to baud rate 57600, 8 data bits, no parity bits, and one stop bit.
Chapter 4 FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
