Summary of Contents for Sercomm YN400

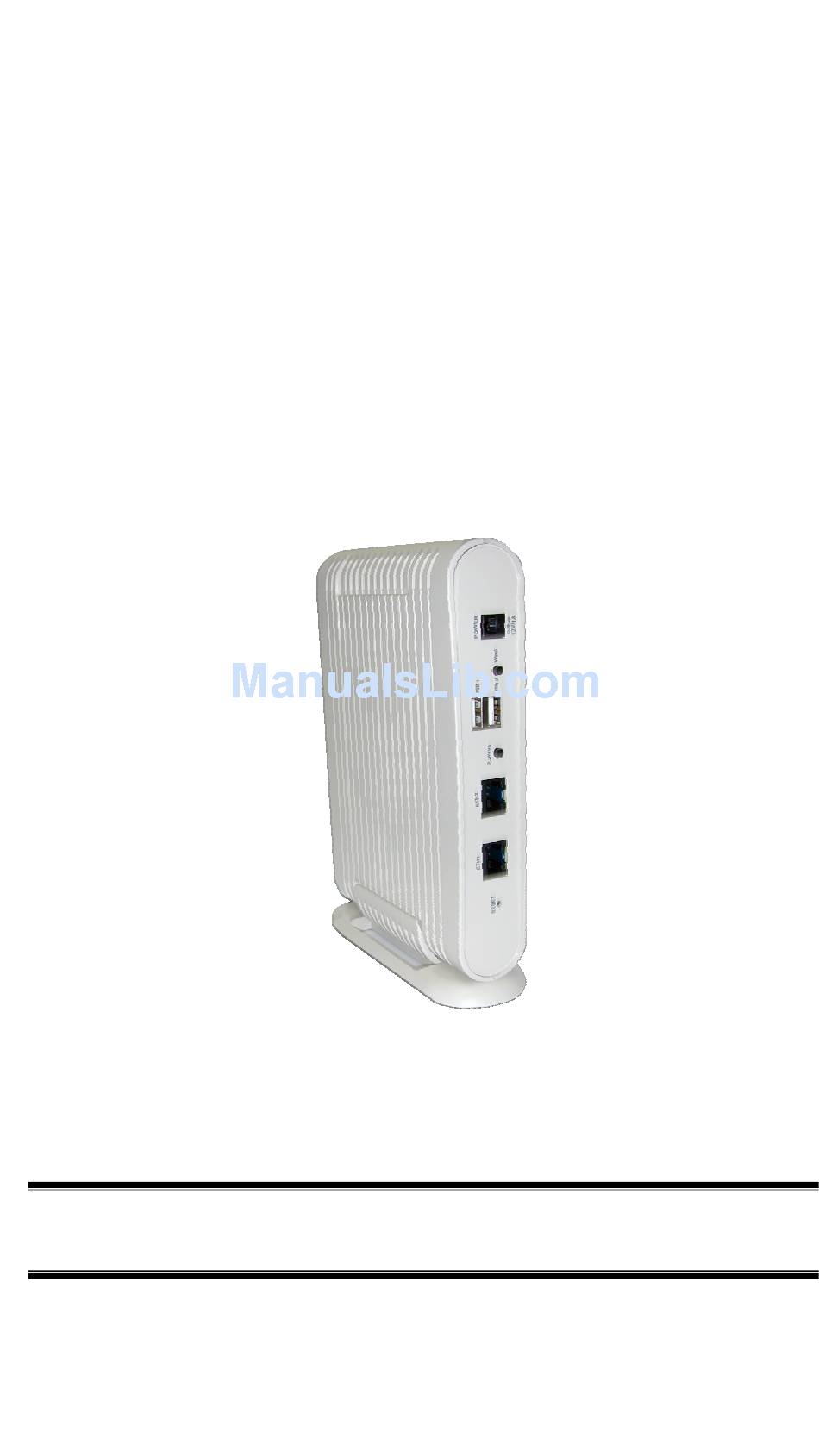

- Page 1 Home Monitoring Gateway User Guide...
-
Page 2: Table Of Contents
Table of Contents CHAPTER 1 INTRODUCTION ..................... 1 Package Contents ......................1 Features ..........................1 LEDs ........................... 2 CHAPTER 2 INITIAL INSTALLATION ................4 Requirements........................4 Procedure ........................... 4 CHAPTER 3 BOARD DESCRIPTION .................. 6 Overview ..........................6 Components and connectors .................... 6 Router/AP configuration .................... -
Page 3: Chapter 1 Introduction
Chapter 1 Introduction This Chapter provides an overview of the Home Monitoring Gateway's fea- tures and capabilities. Congratulations on the purchase of your new Home Monitoring Gateway. The Home Monitor- ing Gateway is a consumer electronic device, which is used for home monitoring and security. Package Contents The following items should be included: •... -
Page 4: Leds
Wireless Adapter User Guide LEDs Front-mounted LEDs The Home Monitoring Gateway has 8 LEDs. • POWER On (Green)- Power On • Off - Power Off • On (Amber) - POST (power on self test) failure or device malfunc- tion • ETH (1~2) On (Green)- LAN connection established. -
Page 5: Rear Panel

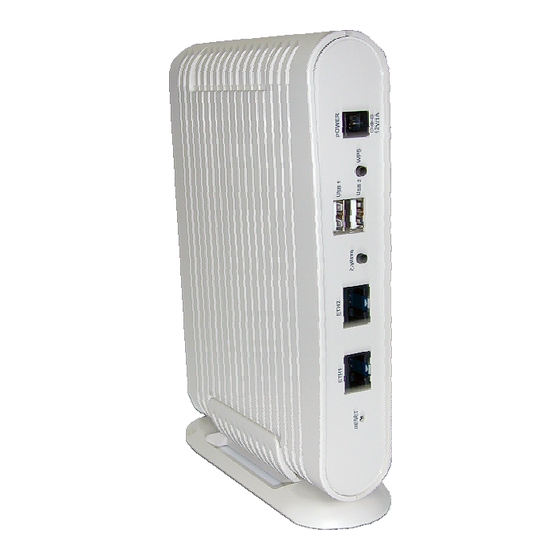

Introduction Rear Panel Reset This button has two (2) functions: • Reboot. When pressed and released, the Home Monitoring Gate- way will reboot (restart). • Clear All Data. This button can also be used to clear ALL data and restore ALL settings to the factory default values. To Clear All Data and restore the factory default values: 1. -
Page 6: Chapter 2 Initial Installation
Chapter 2 Initial Installation This Chapter covers the software installation of the Home Monitoring Gate- way. Requirements • Network cables. Use standard 10/100BaseT network (UTP) cables with RJ45 connectors. Procedure 1. Choose an Installation Site Select a suitable place to install the Home Monitoring Gateway. 2. - Page 7 Initial Installation 5. Check the LEDs • The POWER LED should be ON. • The ETH LED should be ON (provided the PC is also ON.)
-
Page 8: Chapter 3 Board Description
Chapter 3 Board Description This Chapter provides board description for the Home Monitoring Gateway. Overview NA401 is a home gateway/automation, monitoring platform based on the Broadcom chip BCM5354. Below is an image of the board showing different connection and interfaces. Components and connectors •... - Page 9 12 Push button 1 - this push button’s state is accessible via GPIO pin 4. If depressed before system power on (or software reboot), system enters download mode. This mode is used by SerComm during mass production, if board is accidentally booted into this mode, power off than power back on.
- Page 10 Wireless Adapter User Guide...
- Page 11 Appendix B - About Wireless LANs Console port connection guide For platform debugging, please locate the console cable accompanied with the development kit.
-
Page 12: Router/Ap Configuration
Wireless Adapter User Guide Router/AP configuration To configure the gateway settings for the NA401, the user simply connects the host to the LAN port. Then using Internet Explorer connect to the URL http://192.168.1.1 The default user name and password is: User name: (blank) Password: admin The image below shows the configuration page once the user has entered the correct username... - Page 13 Class B Equipment This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter- ference in a residential installation.
