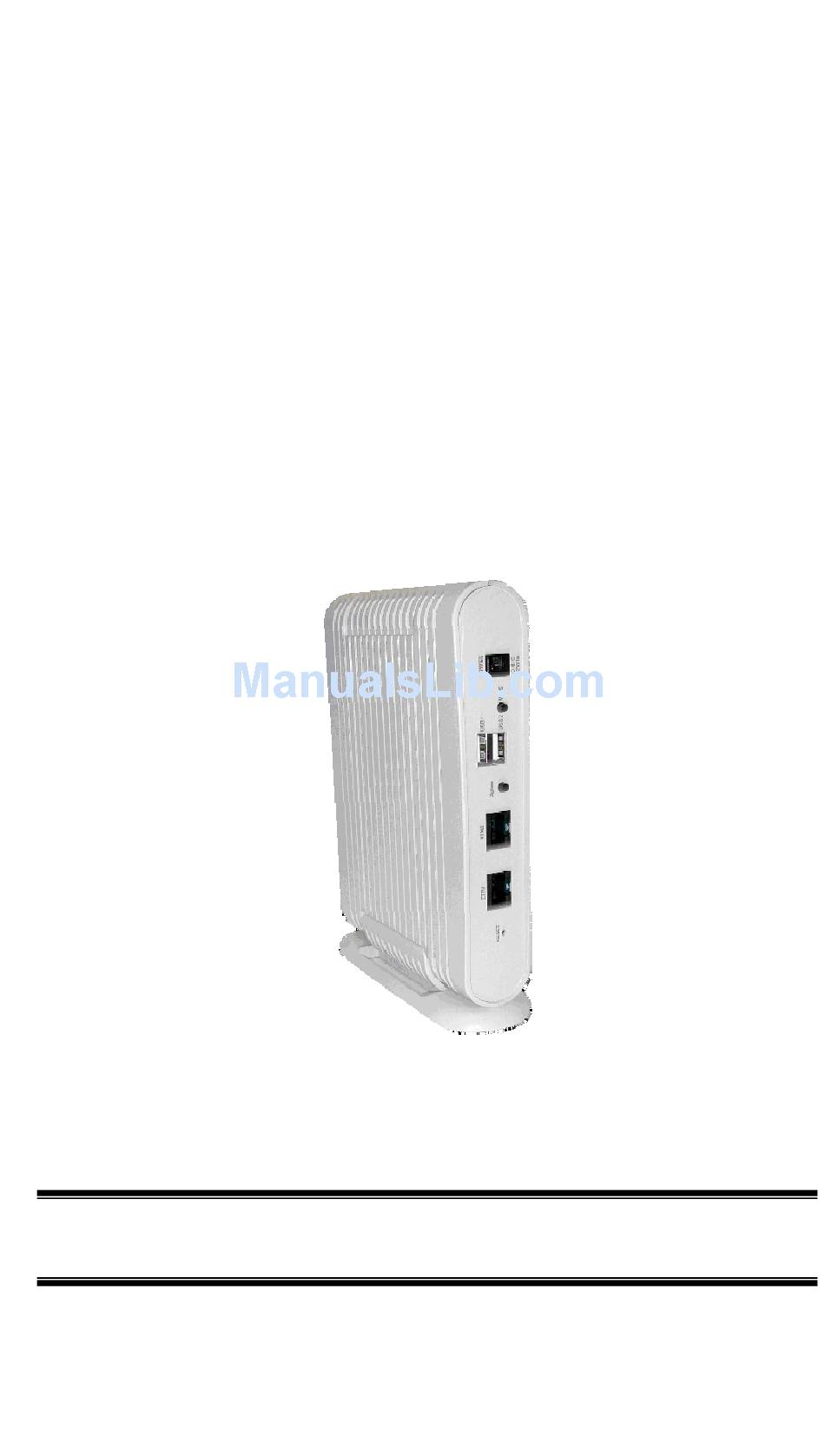

- Page 1 NA403 Home Monitoring Gateway User Guide...
- Page 2 Table of Contents CHAPTER 1 INTRODUCTION ..................... 1 Package Contents ......................1 Features ..........................1 LEDs ........................... 2 CHAPTER 2 INITIAL INSTALLATION ................4 Requirements........................4 Procedure ........................... 4 CHAPTER 3 BOARD DESCRIPTION .................. 6 Overview ..........................6 Components and connectors .................... 6 Router/AP configuration ....................
-
Page 3: Chapter 1 Introduction
Chapter 1 Introduction This Chapter provides an overview of the Home Monitoring Gateway's fea- tures and capabilities. Congratulations on the purchase of your new Home Monitoring Gateway. The Home Monitoring Gateway is a consumer electronic device, which is used for home monitoring and security. -
Page 4: Leds
LEDs Front-mounted LEDs The Home Monitoring Gateway has 8 LEDs. • POWER On (Green)- Power On • Off - Power Off • On (Amber) - POST (power on self test) failure or device malfunc- tion • ETH (1~2) On (Green)- LAN connection established. (Green) •... -
Page 5: Rear Panel
Rear Panel This button has two (2) functions: Reset • Reboot. When pressed and released, the Home Monitoring Gate- way will reboot (restart). • Clear All Data. This button can also be used to clear ALL data and restore ALL settings to the factory default values. To Clear All Data and restore the factory default values: 1. -
Page 6: Chapter 2 Initial Installation
Chapter 2 Initial Installation This Chapter covers the software installation of the Home Monitoring Gate- way. Requirements • Network cables. Use standard 10/100BaseT network (UTP) cables with RJ45 connectors. Procedure 1. Choose an Installation Site Select a suitable place to install the Home Monitoring Gateway. 2. - Page 7 Initial Installation • The ETH LED should be ON (provided the PC is also ON.)
-
Page 8: Chapter 3 Board Description
Board Description This Chapter provides board description for the Home Monitoring Gateway. Overview NA403 is a home gateway/automation, monitoring platform based on the Broadcom chip BCM5354. Below is an image of the board showing different connection and interfaces. Components and connectors 1. - Page 9 9. Push button 1 - this push button’s state is accessible via GPIO pin 4. If depressed before system power on (or software reboot), system enters download mode. This mode is used by SerComm during mass production, if board is accidentally booted into this mode, power off than power back on.
- Page 10 Console port connection guide For platform debugging, please locate the console cable accompanied with the development kit.
-
Page 11: Router/Ap Configuration
Router/AP configuration To configure the gateway settings for the NA403, the user simply connects the host to the LAN port. Then using Internet Explorer connect to the URL http://192.168.1.1 The default user name and password is: User name: (blank) Password: admin The image below shows the configuration page once the user has entered the correct username and password. -
Page 12: Regulatory Approvals
Regulatory Approvals FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
