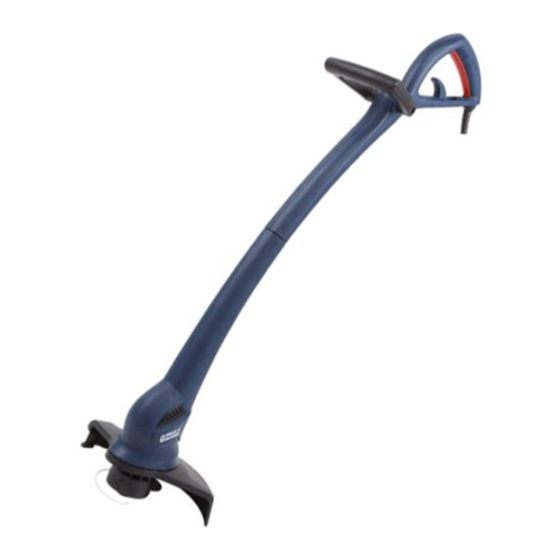

350W
Electric
Grass Trimmer
N1F-GT-250/350-C
Important - Please read these instructions
fully before starting assembly
These instructions contain important information that will help
you get the best from your trimmer, ensuring it is assembled correctly
and safely. If you need help or have damaged or missing parts,
call the Customer Helpline on 0345 605 2067
ORIGINAL
INSTRUCTION
MANUAL
AFTER SALES SUPPORT
0345 605 2067
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Spear & Jackson N1F-GT-250-C
Summary of Contents for Spear & Jackson N1F-GT-250-C
- Page 1 ORIGINAL INSTRUCTION MANUAL 350W Electric Grass Trimmer N1F-GT-250/350-C Important - Please read these instructions fully before starting assembly AFTER SALES SUPPORT 0345 605 2067 These instructions contain important information that will help you get the best from your trimmer, ensuring it is assembled correctly and safely.
- Page 2 SPEAR & JACKSON SINCE 1760 For more than 250 years gardeners have enjoyed high quality performance and great results using Spear & Jackson tools. Our garden power tools combine continuous innovation and the latest in manufacturing technologies with a proud heritage. Each product is carefully designed with performance, comfort and durability firmly in mind, which has earned Spear &...
-
Page 3: Table Of Contents
CONTENTS Safety Information Description of symbols General safety Safety warnings Personal safety Operational safety Maintenance and storage safety Intended use Box Content / Parts Assemble Unpacking Safety guard assemble Front handle assemble Shaft assemble Connect to main supply Operate General operate Switching on/off Bump line feeding Trimming... -
Page 4: Safety Information
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine DESCRIPTION OF SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the grass trimmer. Warning! Cutting device continues to IMPORTANT! rotate after the motor... -
Page 5: General Safety
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine GENERAL SAFETY appliance by a person IMPORTANT! responsible for their safety. ■ Children should be ■ Keep this instruction supervised to ensure that manual in a safe they do not play with the place for future reference. - Page 6 SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine ELECTRICAL SAFETY entangled cords increase the risk of electric shock. ■ Power tool plugs must ■ When operating a power match the outlet. Never modify the plug in any tool outdoors, use an way.
-
Page 7: Personal Safety Y
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine repaired. and clean. Properly maintained cutting tools ■ Disconnect the plug from with sharp cutting edges the power source and/ are less likely to bind and or the battery pack from are easier to control. -
Page 8: Operational Safety
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine serious personal injury. better control of the power tool in unexpected ■ Use personal protective situations. equipment. Always wear ■ Dress properly. Do not wear eye protection. Protective equipment such as dust loose clothing or jewellery. - Page 9 SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine ■ Always ensure that the feet and hands from the cutting means. air vents are kept clear of debris. ■ Before use check the ■ After extending new controls and proper use of the product.
-
Page 10: Maintenance And Storage Safety
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine ■ Disconnect from the power cord (code designation 60227 IEC 53). supply when the cord becomes damaged or ■ Do not expose the product tangled. to rain. ■... -
Page 11: Intended Use
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine similar qualified specialist. manufacturer from his or her legal liability. ■ When not in use, store the product out of the reach of children. ■ Have your power tools serviced by a qualified repair person using only identical replacement... -
Page 12: Box Content / Parts
BOX CONTENT PARTS Pigtail cable Main handle On/off Switch Cable retainer Front handle Guard Cutting head If there are any parts missing, please call the customer helpline on 0345 605 2067 AFTER SALES SUPPORT 0345 605 2067... -
Page 13: Assemble
ASSEMBLE Safety guard assemble i. Align the guard (6) to the trimmer head and place it over it. ii. Secure the guard with the three screws which are pre-assembled on motor housing. Front handle assemble i. Loosen the bolt with a screw driver from the front handle. -
Page 14: Connect To Main Supply
ASSEMBLE Connect to main supply i. Make sure the on/off switch is in its off position. iii. Double the extension cord, about 3cm from the end. Lead the loop through the hole on the rear safe guard and hook the loop over the cord strain relief. Gently pull on the cord to ensure that it is firmly attached. -
Page 15: Operate
OPERATE General operate i. Check the product, its power cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. ii. Double check that accessories or cutting device are properly fixed. -
Page 16: Trimming
OPERATION Trimming i. Ensure the knife protector label is removed before use. Ensure you wear gloves when removing this label. ii. Hold the grass trimmer firmly, keeping your balance with feet slightly apart. Alter the height of the product if needed to ensure an upright posture. -
Page 17: Tips
OPERATION WARNING! · Always fit the guard before using the product · When cutting longer /high grass, please make sure that you cut this down in 2 to 3 stages. · DO NOT cut long grass in one cut, as this will damage your grass trimmer, and make your warranty invalid. -
Page 18: Maintenance
MAINTENANCE This product does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly qualified person to have it checked and repaired. Replacing the spool NOTE: Before replace the spool, make sure the mains plug is disconnected from the unit. - Page 19 MAINTENANCE i. Hold the loose ends of the line together with one hand, find the center of the line with the other hand and hook this center loop into the groove on the spool. ii. Wind the line following the directional arrows on the spool housing and hook the two ends into the side grooves.
- Page 20 MAINTENANCE Storage i. Store the product and its accessories in a dry, frost-free place. ii. Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10°C and 30°C. Transportation i. Switch the product off and disconnect from power supply before transporting it anywhere.
-
Page 21: Technical Data
TECHNICAL DATA Model N1F-GT-250/350-C Input voltage rating 230-240V~, 50Hz Input power 350W No load speed 12000/min Trimming line Ø 1.2 mm, length 2X3m Cutting capacity 25cm Weight 1.58kg Vibration 3.989 m/s² K=1.5 m/s² Part number Accessories GT015-21 Front handle GB/T818-2000 Front handle bolt GT015-14 Trimmer spool... - Page 22 TECHNICAL DATA The sound values have been determined according to noise test code given in EN 50636-2-91, using the basic standards EN ISO 11201 and EN ISO 3744. The sound intensity level for the operator may exceed 80 dB(A) and ear protection measures are necessary.
-
Page 23: Troubleshooting
TROUBLESHOOTING Suspected malfunctions are often due to causes that the user can fix themselves. Therefore, check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself! Gloves and appropriate protective clothing... -
Page 24: Warranty
WARRANTY If your device develops a fault, please don’t hesitate to contact our customer service department on 0345 605 2067, we can solve 80% of problems via the phone. 1. These warranty terms cover additional warranty rights and do not affect your statutory warranty rights.
