aspenhome
ah
ITEM NO: I248-366-1
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
· Read all instructions before use.
· This product is intended for use as a seat for adults. Do not use the product for any other purpose.
· This product is not a toy. Keep the product away from children and pets.
· Always place the product on a flat, stable surface.
· Do not place the product near heat or open flames.
· Do not set heavy objects on the product.
· Never stand on the product or use it as a STEP ladder.
· To avoid a possible pinch hazard, never insert fingers, hands, or other body parts in between the product hinges
and joints, especially when assembling or disassembling the product.
· Ensure all parts are securely attached before use. Periodically check the parts to ensure they are securely in place.
· We will not be responsible for any injury or death resulting from the improper use or care of this chair.
BEFORE USING THIS PRODUCT PLEASE READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
Save these instructions for future reference.
Page 1/3
R

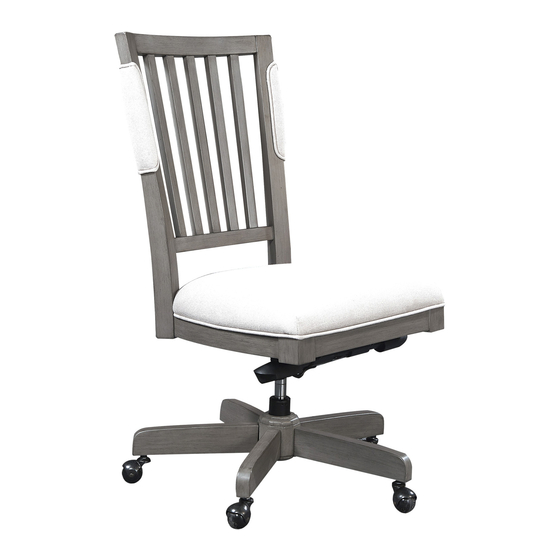

Office Chair
IMPORTANT SAFEGUARDS
FOR INDOOR USE ONLY
MADE IN VIETNAM
ASSEMBLY INSTRUCTIONS
HARDWARE LIST:
Description
No.
Bolt Ø5/16" x 4-1/4"
A
Bolt Ø5/16" x 2"
B
Bolt Ø5/16" x 1-1/2"
C
Lock Washer Ø5/16"
D
Flat Washer Ø5/16" x 3/4"
E
F
Hex Nut 5/16"
G
Hex Wrench
H
Allen Wrench 4mm
COMPONENTS LIST:
Description
No.
Pneumatic cylinder
1
2
Seat Plate
3
Wooden base with Casters
Seating
4
5
Chair Back
Quantity
Sketch
4 PCS
2 PCS
4 PCS
10 PCS
14 PCS
4 PCS
1 PC
1 PC
Quantity
Sketch
1 PC
1 PC
1 PC
1 PC
1 PC
12-08-2020
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Furniture Values International aspenhome I248-366-1
Summary of Contents for Furniture Values International aspenhome I248-366-1
- Page 1 aspenhome ASSEMBLY INSTRUCTIONS ITEM NO: I248-366-1 Office Chair Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment. HARDWARE LIST: Description Quantity Sketch Bolt Ø5/16"...
- Page 2 aspenhome ASSEMBLY INSTRUCTIONS ITEM NO: I248-366-1 Office Chair STEP 1: Insert the Pneumatic Cylinder(1) through the center hole on top of the Wooden base with Casters(3). STEP 2: Attach Seating(4) to Chair back(5) by using bolts(A), bolts(B), lock washer(D), flat washer(E) and 4 hex nut(F), use Allen key(H) and hex wrench(G ) tighten all bolts.
- Page 3 aspenhome ASSEMBLY INSTRUCTIONS ITEM NO: I248-366-1 Office Chair To Adjust Height Adjustment: To raise the seat height, remove weight from the seat and pull up on the Height Adjustment Leveler. To lower the seat height, while seated pull up slowly on the Height Adjustment Leveler until the seat is at the desired height.
