aspenhome
ah
ITEM NO: I644-6030
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
Description
No.
Bolt Ø5/16" x 2"
A
Lock Washer Ø5/16"
B
Flat Washer Ø5/16" x 3/4"
C
D Allen Wrench 4mm
FUNCTIONALITY INSTRUCTION
BEFORE USING THIS PRODUCT PLEASE READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
Save these instructions for future reference.
Page 1/2
R

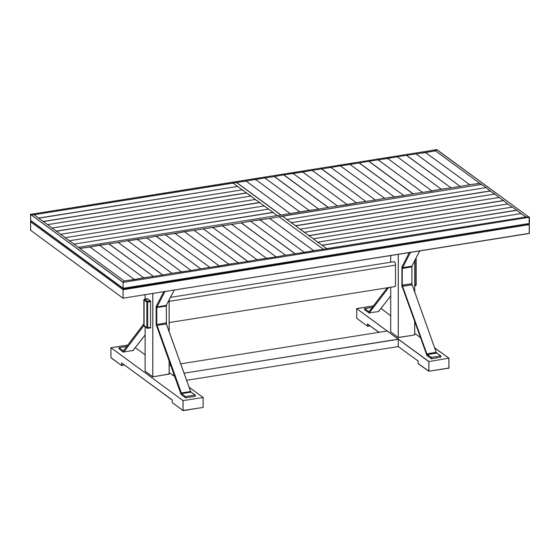

Trestle Dining Table
Quantity
Sketch
16 PCS
16 PCS
16 PCS
1 PC
FOR INDOOR USE ONLY
MADE IN VIETNAM
ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED (NOT PROVIDED)
PHILLIPS SCREWDRIVER
Description
No.
Table Top
1
2
Pedestal
Top Stretcher
3
4
Bottom Stretcher
Wood Covering
5
Leveler on Bases
Adjust the leveler
when necessary
Quantity
Sketch
1 PC
2 PCS
1 PC
1 PC
2 PCS
04-27-2023
Advertisement
Table of Contents
Related Manuals for Furniture Values International aspenhome Trestle I644-6030
Summary of Contents for Furniture Values International aspenhome Trestle I644-6030
- Page 1 aspenhome ASSEMBLY INSTRUCTIONS ITEM NO: I644-6030 Trestle Dining Table Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment. TOOLS REQUIRED (NOT PROVIDED) PHILLIPS SCREWDRIVER HARDWARE LIST: COMPONENTS LIST:...
- Page 2 aspenhome ASSEMBLY INSTRUCTIONS ITEM NO: I644-6030 Trestle Dining Table STEP 1: Put the pedestal upside down on a soft surface. STEP 2: Attach the top stretcher and bottom stretcher to the pedestals by using 4 bolts (A), lock washers (B) and flat washers (C) as shown below. Use the allen wrench (D) to tighten all bolts.
- Page 3 aspenhome ASSEMBLY INSTRUCTIONS ITEM NO: I644-6640S Dining Side Chair w/ Wood Seat (2/Ctn) Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment. TOOLS REQUIRED (NOT PROVIDED) PHILLIPS SCREWDRIVER HARDWARE LIST:...
- Page 4 aspenhome ASSEMBLY INSTRUCTIONS ITEM NO: I644-6640S Dining Side Chair w/ Wood Seat (2/Ctn) STEP 1: Attach the left front leg and right front leg to chair seat by using 4 bolts (B), lock washers (D) and flat washers (E), Do not completely tighten bolts. Right Front Leg Right Front Leg D B F...
- Page 5 aspenhome ASSEMBLY INSTRUCTIONS ITEM NO: I644-6660S Counter Side Chair w/ Uph Seat (2/Ctn) Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment. TOOLS REQUIRED (NOT PROVIDED) PHILLIPS SCREWDRIVER HARDWARE LIST:...
- Page 6 aspenhome ASSEMBLY INSTRUCTIONS ITEM NO: I644-6660S Counter Side Chair w/ Uph Seat (2/Ctn) STEP 1: Attach the left front leg and right front leg to chair seat by using 4 bolts (B), lock washers (D) and flat washers (E), Do not completely tighten bolts. Right Front Leg Right Front Leg E D B F...
