aspenhome
ah
ITEM NO: I221-370C
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
HARDWARE LIST:
Description
No.
Bolt Ø5/16"*1-3/4"
A
Lock Washer Ø5/16"
B
Flat Washer Ø5/16" *3/4"
C
D Allen Wrench 4mm
E
Wood Screw M4*1-3/4"
FUNCTIONALITY INSTRUCTION
2 AC outlet / 2 USB power pack
Flip down keyboard tray with 2
AC outlet Power Pack
BEFORE USING THIS PRODUCT PLEASE READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
Save these instructions for future reference.
Page 1/2

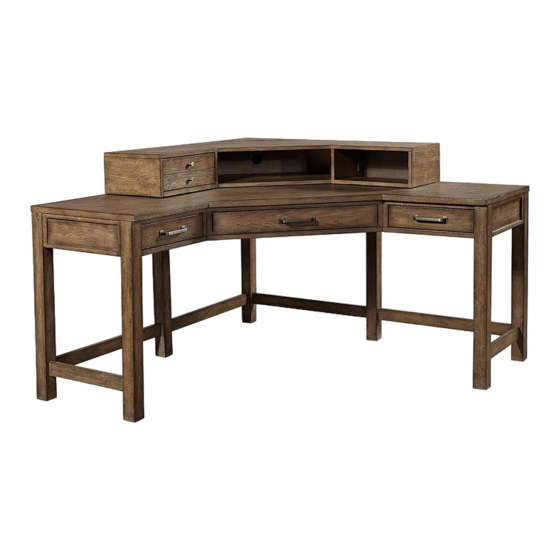

Corner Desk
UNIT SHOULD BE INSTALLED BY 2 OR MORE PERSONS.
Quantity
Sketch
14 PCS
14 PCS
14 PCS
1 PC
8 PCS
FOR INDOOR USE ONLY
MADE IN VIETNAM
R
TOOLS REQUIRED (NOT PROVIDED)
PHILLIPS SCREWDRIVER
COMPONENTS LIST:
Description
No.
Desk Top
1
Leg A
2
Leg B
3
Leg C
4
Leg D
5
6
Stretcher
Quantity
Sketch
1 PC
1 PC
1 PC
2 PCS
1 PC
4 PCS
Metal plate
Hook latch
Press here to release
07-09-2018
