Check the Factory Installed Sensor Connections
1. Verify that the rain collector and temperature/humidity sensor cables are plugged
into the receptacles labeled RAIN and TEMP/HUM on the sensor interface.
2. If your ISS includes UV and/or solar radiation sensors, verify that the sensor
cables are plugged into the receptacles labeled UV and SUN on the sensor
interface.
Connect the Anemometer Cable to the Sensor Interface
Note: The anemometer comes with 40 feet (12 meters) of cable to allow for mounting the
anemometer separately from the rain collector and other sensors. The cable is coiled
and secured at the factory with enough cable unwound from the coil to allow you to
work with it and to allow the anemometer to be mounted on the same pole as the rain
collector.
1. Remove the protective cap from the RJ jack on the anemometer cable.

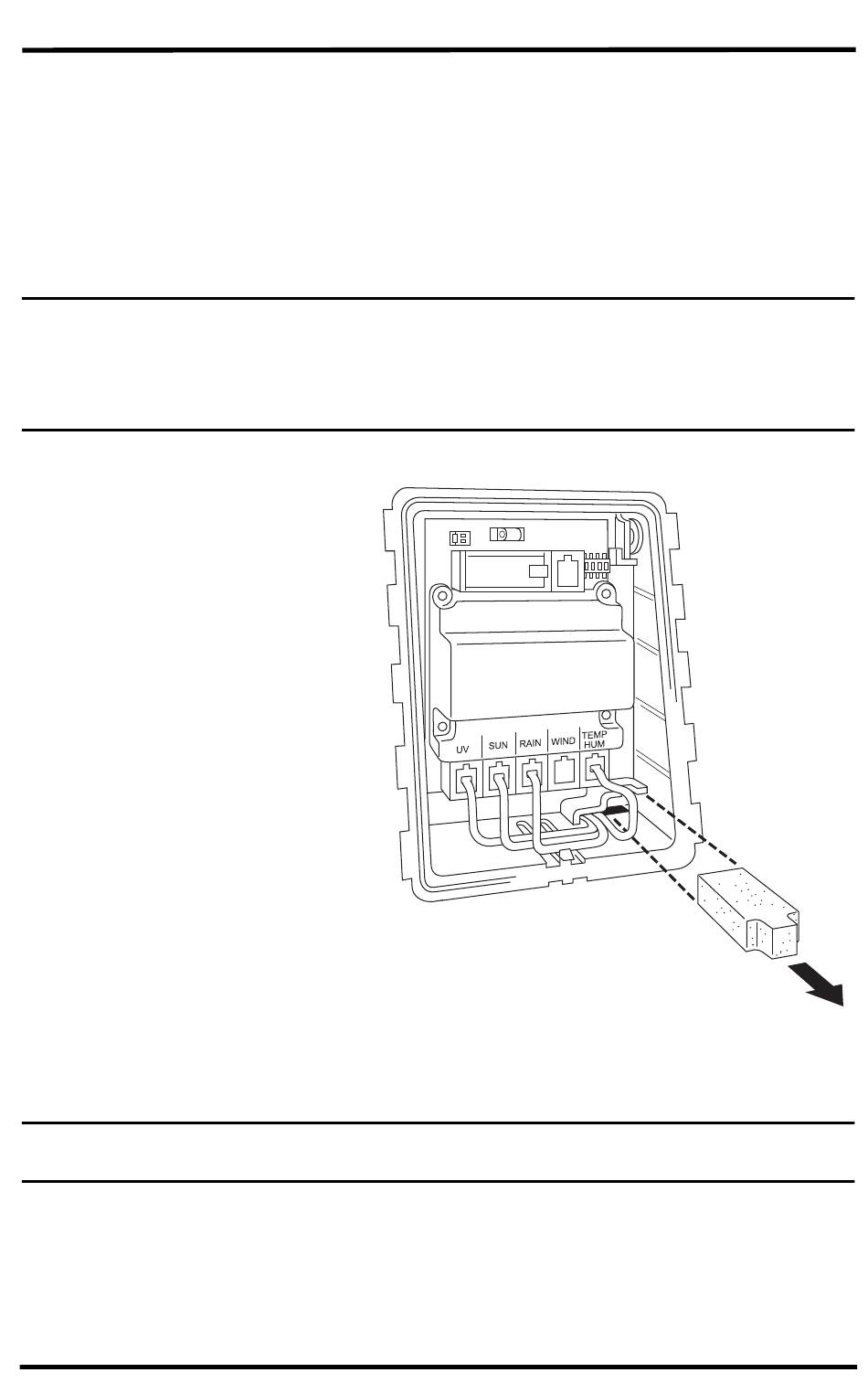

2. Pull the foam insert out of
cable access port and set
the foam insert aside.
3. Insert the anemometer
cable end into the cable
access port from beneath
the box.
4. Slide the cable through
the cable access port with
the connector lever down.
5. Firmly insert the end of
the anemometer cable
into the connector labeled
WIND. The lever clicks
into place.
6. Firmly insert the foam in
between the cables and at
the top of the cable access
port, taking care to ensure
that the foam seals the
access port entirely, leaving no holes or gaps large enough for weather or insects.
You may have to stack the cables to allow the foam to fit.
Note: If you are assembling a cabled station, wait to reinsert the foam until cable assembly is
complete. See "Cabled ISS Assembly" on page 12.
8
Note: Only Plus models have UV and
solar cables already attached.
Sensor
Interface
Foam
Insert
