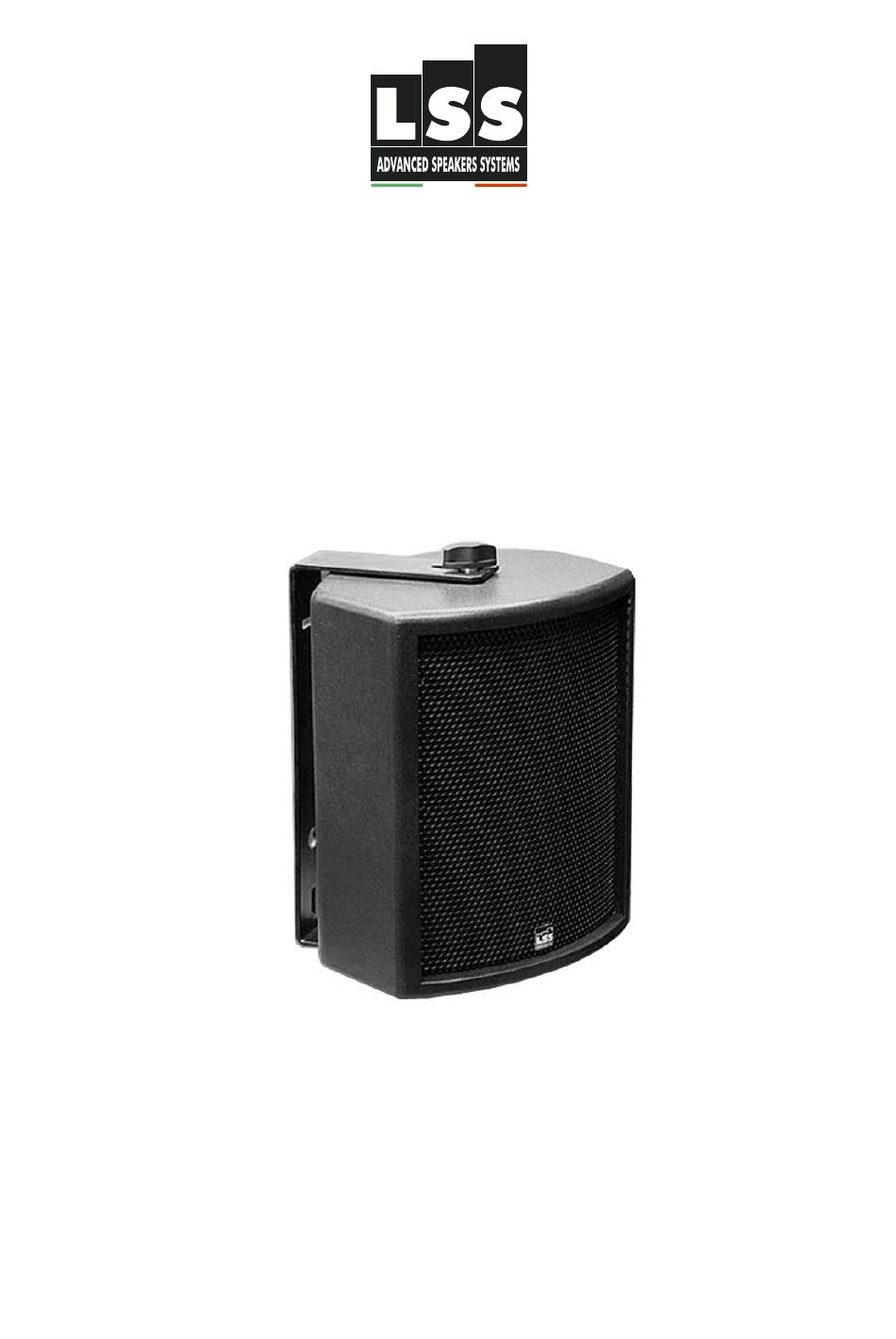

- Page 1 PROFESSIONAL AUDIO SYSTEM ARC115 OPERATING MANUAL Ver. ARC115-EN-1.1 LSS Advanced Speaker Systems Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it...
- Page 2 Every precaution has been taken in the preparation of this manual. Nevertheless, LSS assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.
-
Page 3: Table Of Contents
INTRODUCTION ............................4 SAFETY AND WARNING ..........................5 APPLICATION ..............................6 PHYSICAL DESCRIPTION ........................... 6 TECHNICAL SPECIFICATIONS ........................7 INSTALLATION AND WIRING ........................8 WEEE DIRECTIVE ............................10 TROUBLESHOOTING ..........................11 DIMENSIONS ..............................12 NOTES ................................13 Operating Manual ver. ARC115-EN-1.1 |3... -
Page 4: Introduction
LSS produces professional audio products – the result of exceptional engineering and meticulous craftsmanship. This manual is intended for use with LSS loudspeaker. This includes: safety precautions; installation, set-up and operating instruction. Please read this manual plus any accompanying manual and follow all relevant precautions and instructions. -
Page 5: Safety And Warning
LSS loudspeakers can produce sound levels capable of causing permanent hearing damage from prolonged exposure. The higher the sound level, the less exposure needed to cause such damage CAUTION: This product is energized as long as it is connected to the AC. -
Page 6: Application
ARC115_______________________________________________________________________________ APPLICATION LSS's ARC115 is a compact full range loudspeaker system, ideal for the reproduction of spoken and background music, it was designed for fixed installation to support music and paging reproduction in train stations, gymnasium, commercials centre, etc. ARC115 uses a loudspeaker from 130 mm (5") double cone with membrane... -
Page 7: Technical Specifications
Vertical 100 ° Enclosure material MDF of 12 mm [0.47 inches] Texture polyurethanic black Finish paint Suspension U Bracket MECHANYCAL Powder coated perforated steel Grille with anti-dust foam Connectors Black and Red clamps Accessories U-Bracket (included) Operating Manual ver. ARC115-EN-1.1 |7... -
Page 8: Installation And Wiring
ARC115_______________________________________________________________________________ INSTALLATION AND WIRING ARC115 speaker can be mounted on the wall or roof using its own bracket. The bracket must be fixed to the wall through the fixing holes using plugs suitable to support the weight of the entire apparatus. - Page 9 12 Ohms Input B 8 Ohms 7 Ohms Input A Ohms 1.9 Ohms 2 Ohms 1.8 Ohms Caution: Do not exceed the maximum load rating of the amplifier. Mixer You can now use the system Operating Manual ver. ARC115-EN-1.1 |9...
-
Page 10: Weee Directive
Warning: If the product is used for business purposes, the following steps to delete it: contact your LSS dealer for information about the product recall. Might be charged for the costs of collection and recycling. Small products (and amounts) might be taken back by your local collection facilities. -
Page 11: Troubleshooting
Poor system hissing, grounding or ground Check and correct the system grounding, as required. humming loop If these suggestions do not solve your problem, contact your nearest LSS dealer or LSS distributor. Operating Manual ver. ARC115-EN-1.1 |11... -
Page 12: Dimensions
ARC115_______________________________________________________________________________ DIMENSIONS SIDE FRONT REAR 16cm 18cm BOTTOM 12| Operating Manual ver. ARC115-EN-1.1... -
Page 13: Notes
______________________________________________________________________________ NOTES Operating Manual ver. ARC115-EN-1.1 |13... - Page 14 ARC115_______________________________________________________________________________ CONTACT INFORMATION: LSS Advanced Speaker Systems Via On. Longo 53 89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it 14| Operating Manual ver. ARC115-EN-1.1...
