  • Page 1 icrowave rawer Installation Guide and Users Manual...

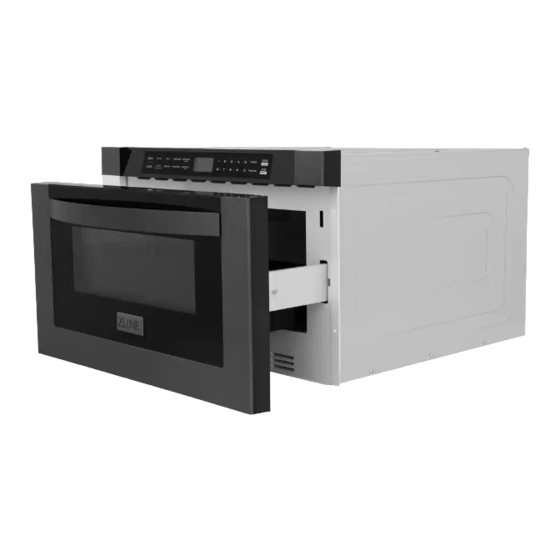

  • Page 3 Take back your counterspace with the ZLINE microwave drawer. Meeting standards set by the Americans with Disabilities Act, this top loading microwave drawer has one-touch opening and closing technology with a powerful 1,000 watt output. With 1 1 power levels at your disposal, enjoy 1.2 cubic feet seamlessly built-in to any cabinetry.

  • Page 4: Specifications

    PRECAUTIONS Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. Do not place any object between the oven front face and the door or allows soil or cleaner residue to accumulate on sealing surfaces.

  • Page 5: Important Safety Instructions

    important safety instructions When using electrical appliances basic safety precautions should be followed, including the following: To reduce the risk of burns, electric shock, fire, personal injury, or exposure to excessive microwave energy, read all instructions before using the appliance. This appliance must be grounded or connected to a properly grounded outlet.
  • Page 6 important safety instructions Visible bubbling or boiling when the container is removed from the microwave oven is not always present. This could result in very hot liquid suddenly boiling over when the container is disturbed. WARNING To reduce the risk of injury to persons: Do not overheat liquid.

  • Page 7: Grounding Instructions

    grounding instructions This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

  • Page 8: Installation Instructions

    installation instructions Microwave Drawer Microwave Drawer install ation manual install ation manual IAL WARNING SPECIAL WARNING ALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER. IMPORTANT: save this INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER. IMPORTANT: save this ation manual for local electrical inspector’s use.

  • Page 9: Clearances & Dimensions

    installation instructions CLEARANCES & DIMENSIONS Dimensions shown in Figure 1 must be used. Given dimensions provide minimum clearance. Locate electrical outlet in the shaded area in the upper left-hand corner of the cutout (also see Figure 3) Contact surface must be solid and level. The floor of the opening should be constructed of plywood strong enough to support the weight of the oven.
  • Page 10 installation instructions...

  • Page 11: Drawer Install Ation

    installation instructions DRAWER INSTALL ATION Figure 4 1. Place the drawer adjacent to the wall or cabinet opening. Plug the power supply cord into the electrical outlet. 2. Carefully guide the drawer into the prepared opening. Avoid pinching the cord between the oven and wall. 3.

  • Page 12: Radio Interference

    radio interference Operation of the microwave oven may cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures: Clean door and sealing surface of the oven. Reorient the receiving antenna of radio or television.

  • Page 13: Materials You Can Use In Microwave

    materials you can use in microwave Utensils Usage Browning dish Follow manufacturer instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do not use cracked or chipped dishes.

  • Page 14: Setting Up Your Oven

    setting up your oven Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: : Control Patch : Control Box : Right Mounting Plate : Cavity : Handle : Windows : Door Frame : Automatic putter : Drawer : Hinge Joint Board...

  • Page 15: Operation

    operation ) Open ) Setup ) Auto Menu ) Defrost Weight ) Close ) Clock/Kitchen Timer ) Defrost Time ) Number Keys ) Power Start/+30sec. ) Time Cook ) Stop/Cancel Power on: When the microwave oven is plugged into an outlet, buzzer sounds once. Screen displays “WELCOME”.

  • Page 16: Kitchen Timer

    operation Kitchen Timer: Press “CLOCK/KITCHEN TIMER” button twice, Screen will display 00:00. “FUNCTION” will light. Press the number buttons to enter the time. The maximum cooking time is 99 minutes 99 seconds. Press “START/+30SEC.” to confirm the setting. . The time begins to count down. When the kitchen time arrives, buzzer will ring 5 times.

  • Page 17: Time Defrost Function

    operation Microwave Cooking Function: In waiting state, instant cooking at 100% power level with 30 seconds cooking time can be started by pressing “START/+30SEC”. Each press on the same button will increase cooking time by 30 seconds. During microwave and defrost by time, “START/+30SEC.” can be pressed to increase cooking time.
  • Page 18 operation Auto Menu-Popcorn: Press “POPCORN” button. Screen displays “1.75”. “AUTO MENU” and “OZ” indicators will light. Continue to press “POPCORN” button, “1.75”, “3” or “3.5” will display in order. Press “START/+30SEC.” to start cooking. Buzzer sounds once. “OZ” will go out. The cooking time begins to count down.

  • Page 19: Buzzer On/Off

    operation Auto Menu-Melt: Press “MELT” button. Screen displays “BUTTER”. “AUTO MENU” indicator will light. Continue to press “MELT” button, “BUTTER”, “CHOCOLA”, “CHEESE” or “MARSHMA” will display in order. Press “START/+30SEC.” to confirm the selection. Press “MELT” button to select the weight. “OZ” will light except butter menu. Press “START/+30SEC.”...

  • Page 20: Inquiring Function

    operation Inquiring Function: (1) In cooking state, press “CLOCK/KITCHEN TIMER ” button to check the clock. The current time will display for 3 seconds. (2) In the microwave cooking state, press “POWER” button to inquire the microwave power. The current microwave power will display for 3 seconds. Other Specifications: The buzzer sounds once by efficient press, inefficient press will be no response.

  • Page 21: Troubleshooting

    troubleshooting Check your problem by using the chart below and try the solutions for each problem. If the microwave oven still does not work properly, contact the nearest authorized service center. Trouble Possible Cause Possible Remedy Electrical cord is unplugged. Plug into the outlet.
  • Page 22 Kitchen and Bath Three Locations: 350 Parr Circle Reno, NV 89512 916 Delaware Avenue Marysville, OH 43040 319 Rowland Mill Road Bruceton, TN 38317 www.zlinekitchen.com 1-614-777-5004...
