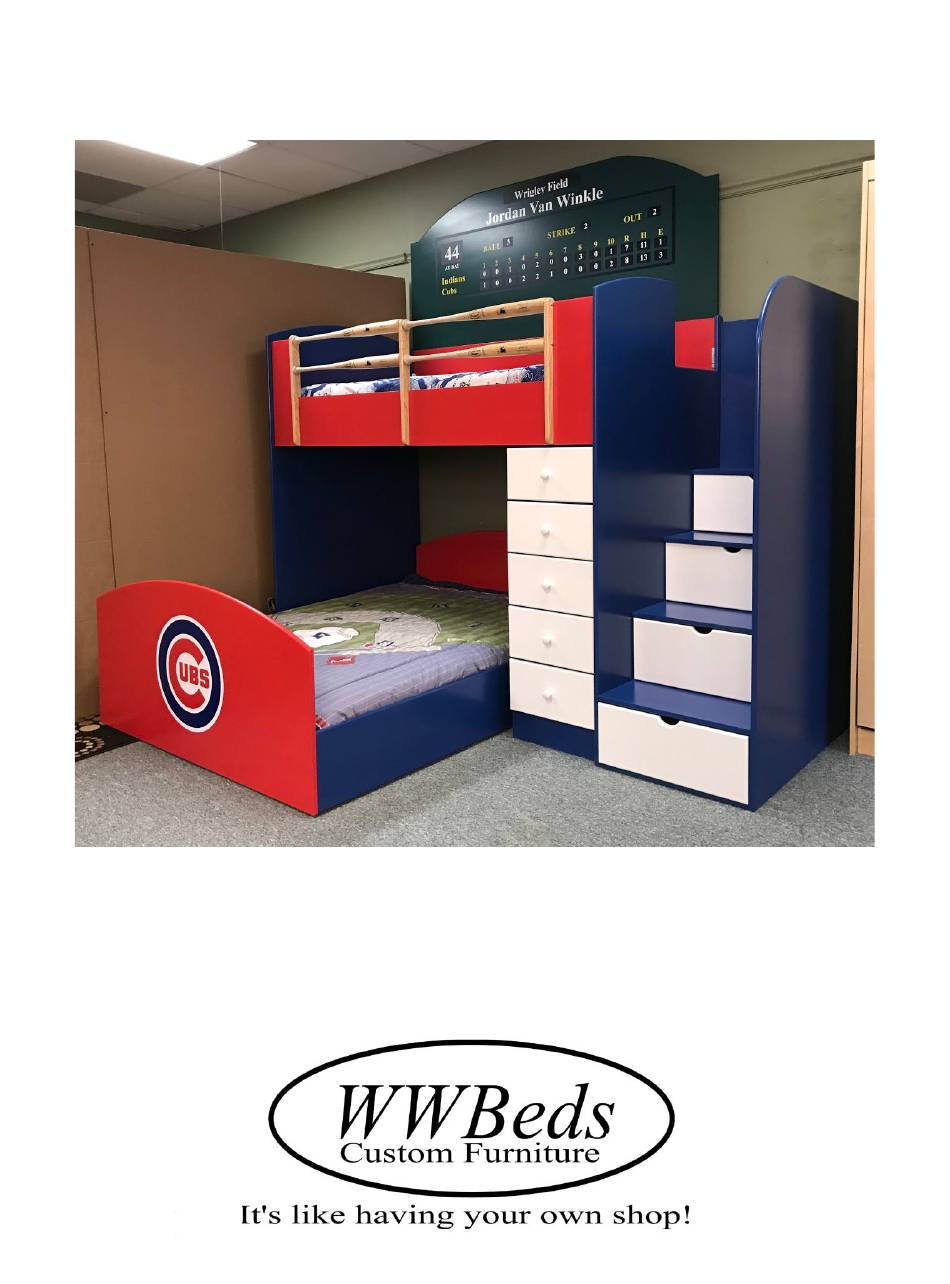

- Page 1 Baseball Loft Style 2 Assembly Instructions Questions call 501.753.9699...
-
Page 2: Parts Included
Table of Contents: Table of Contents: Parts Included: Tools Needed: Step 1 | Position Main Parts in Room Step 2 | Attach Back Guardrail to Stairs Step 3 | Attach the Large Side Panel Step 4 | Attach Scoreboard Step 5 | Slide back to the wall Step 6 | Add Bookcase and Chest Step 7 | Add Front Guardrail. - Page 3 Step 1 | Position Main Parts in Room The stairs are designed to go on the right. You’ll have the Large Side Panel on the left. You’ll be setting this up about 20” - 24” from the wall. This will give you room to attach the scoreboard later.
- Page 4 Step 2 | Attach Back Guardrail to Stairs With a helper attach the Back guardrail to the stairs by locking the brackets together. The tabs on the brackets will interlock. Put two ¾” set screws in the open holes on each bracket to lock them into place.
- Page 5 Step 4 | Attach Scoreboard The Scoreboard is held on by 2 boards. If they were removed for shipping, put them back on the back of the scoreboard using 1-¼” screws. With a helper set it on top of the Back Guardrail.
- Page 6 Step 7 | Add Front Guardrail. Slide the Front Guardrail into place as you did the Back Guardrail in step 2. Step 8 | Add Twin Slats The twin size slats for the top bed are tied together and will space themselves out. Set the slats on the cleat of the siderail, stretch into place and attach them to the cleats using 1 ¼”...
- Page 7 Assembly questions call us at 501.753.9699...
