Summary of Contents for Digitus DA-10060

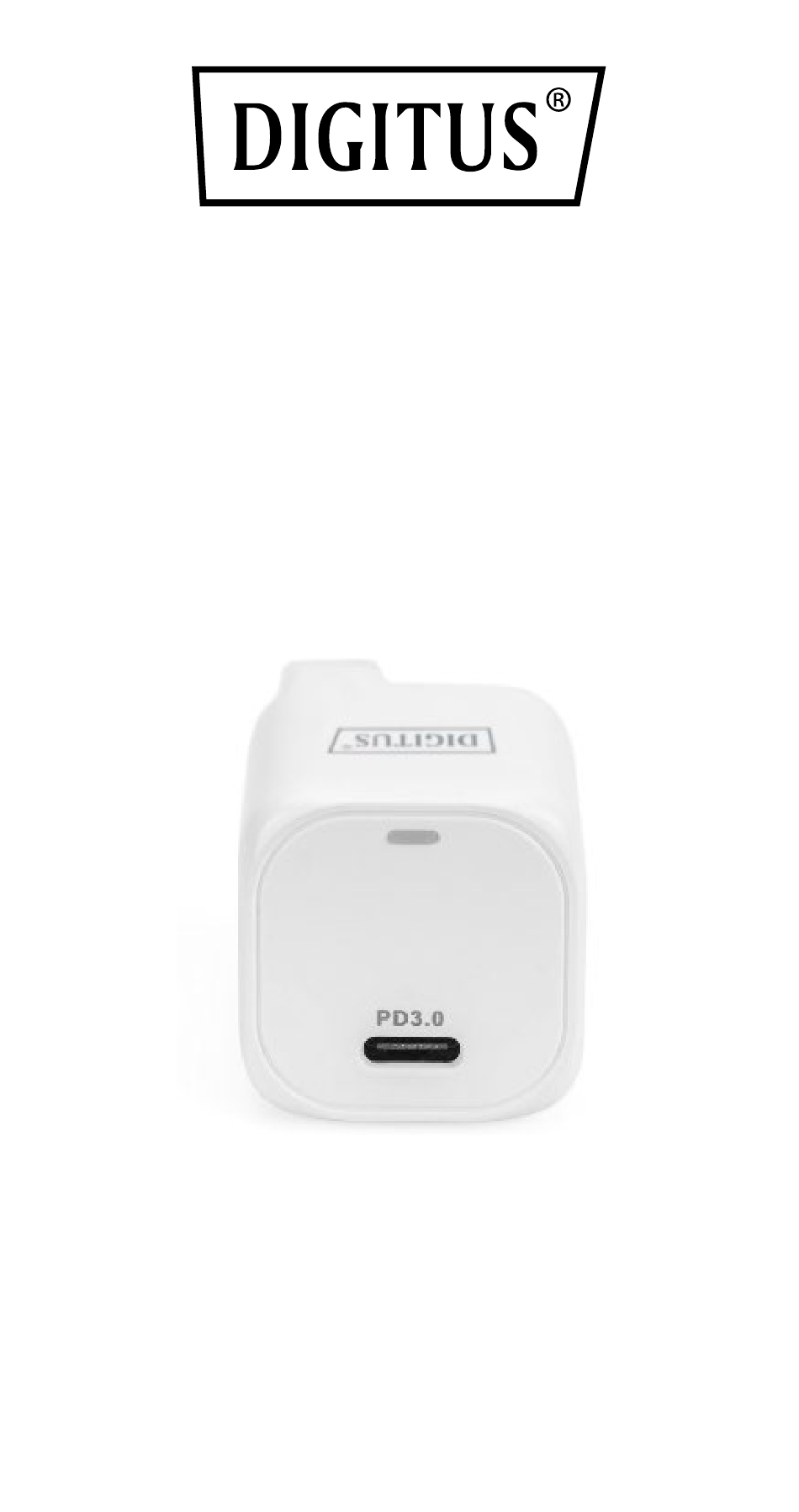

- Page 1 USB-C Mini Charging Adapter 20W Quick Installation Guide DA-10060...
- Page 2 Please keep this manual for future reference. 1. INTRODUCTION The DIGITUS® MINI Charging Adapter is suitable for USB-C devices such as smartphones, tablets or notebooks and provides an output of up to 20W. Thanks to the super...
- Page 3 3. SPECIFICATIONS Input/output Input 100-240VAC 50/60Hz Input Plug EU plug 5V/3A 9V/2.22A Output 12V/1.67A (20W Max) Protection Over Current Protection Over Voltage Protection Over Load Protection Short Circuit Protection Over Temperature Protection Performance Ripple And Noise ≤200mV Efficiency ≥85% Line Regulation ±5% Mechanical Color...
- Page 4 5. OPEARTION 5.1 Operation Procedures Plug the DC connector of power adapter into a socket. Plug one USB connector of the cable into the interface of the charger and plug the other connector of the cable into the electronic device (Apple iPad, Google Chrome book, Apple iPhone, Samsung Smartphone, MP3, PC, etc.) ...
- Page 5 6. CONNECTION DIAGRAM 1) Smartphone 2) Tablet Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com ASSMANN Electronic GmbH Auf dem Schüffel 3...
