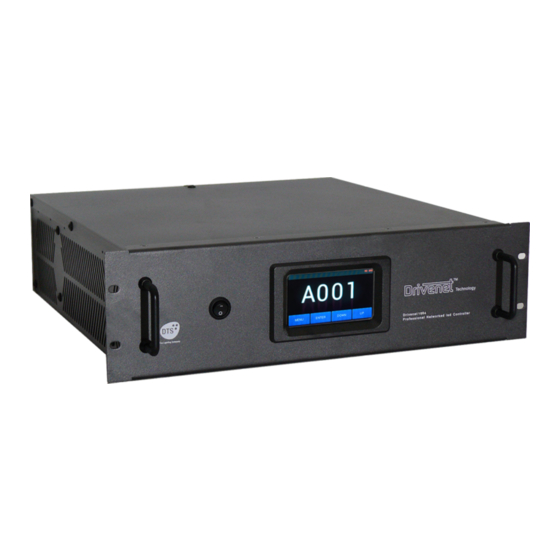

DRIVENET 1664
al Datasheet
al Datasheet
User's Manual rel 1.0 GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRIVENET 1664 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DTS DRIVENET 1664

Summary of Contents for DTS DRIVENET 1664

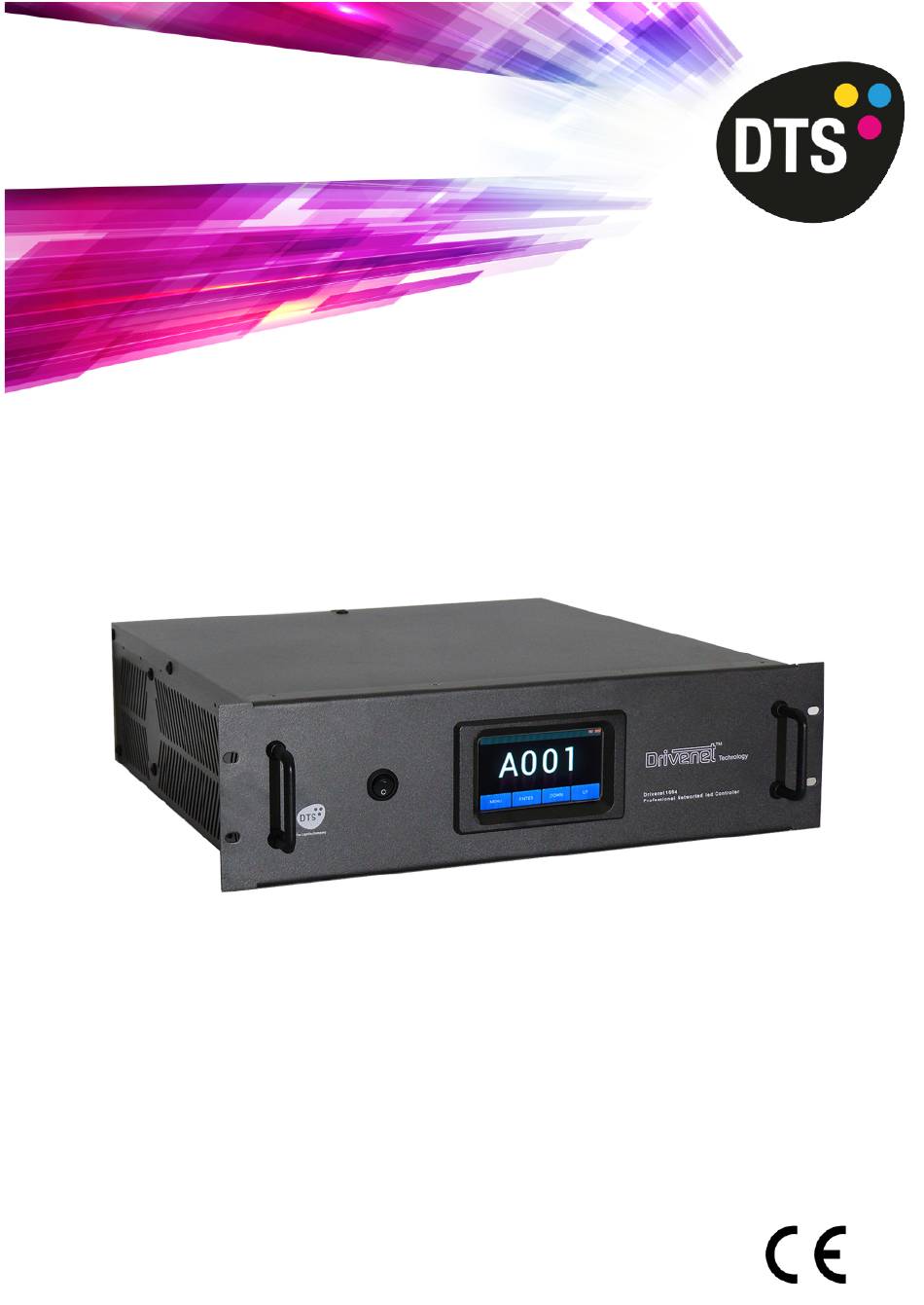

  • Page 1 DRIVENET 1664 al Datasheet al Datasheet User’s Manual rel 1.0 GB...
  • Page 2 D.T.S . DTS si riserva il diritto di apportare senza preavviso cambiamenti e modifiche estetiche , funzionali o di design a ciascun proprio prodotto. D.T.S non assume alcuna responsabilità sull’uso o sull’applicazione dei prodotti o dei circuiti descritti.

  • Page 3: Technical Specifications

    DRIVENET 1664 TECHNICAL SPECIFICATIONS DTS Product codes: 03.LA.198 DRIVENET 1664 Screw terminal outputs Input voltage/frequency range: 180-240Vac 50-60Hz (Voltage not compatible in: USA, Canada, Mexico, Venezuela, Colombia, Ecuador, Central America and Carribean area, Japan, Taiwan, Libia) Output channels: 64 (4 channels x 16 groups)
  • Page 4 DRIVENET 1664 DIMENSIONS...

  • Page 5: Important Safety Information

    Unplug the unit prior to performing any operation which involves touching the inside of the unit. This equipment must be grounded, do not connect to non-grounded supplies. The use of a thermal magnetic circuit breaker is recommended for each DRIVENET 1664. Use only AC supplies 180-240V 50-60Hz (Voltage not compatible in: USA, Canada, Mexico, Venezuela, Colombia, Ecuador, Central America and Carribean area, Japan, Taiwan, Libia).

  • Page 6: Dmx Signal Connection

    DRIVENET 1664 DMX SIGNAL CONNECTION: The unit operates using a digital DMX 512 signal. Connection between the controller and the unit or between units must be carried out using a two pair screened ø 0.5 mm cable and a CANNON XLR 5 pins connector.

  • Page 7: Dmx Address

    DRIVENET 1664 DMX ADDRESS DRIVENET 1664 can be used in 9 DMX modes: 64 ch (default), 128 ch, 10 ch, 14 ch, 160 ch, 224 ch, 96 ch or 1 ch mode. If you want to use the DRIVENET 1664 in 64 channels mode, select the “...

  • Page 8: Rdm Functions

    Please follow the procedure below to perform the update: 1. Connect the DTS Dongle Firmware Uploader to a spare USB port on the PC. 2. Connect the unit DMX input to the DTS Dongle Firmware Uploader DMX output with a standard DMX cable and turn ON the unit.

  • Page 9: Display Functions

    Using these functions, it is possible to change some of the parameters and add some functions. Changing the DTS setting can vary the functions of the unit so that it does not respond to the DMX 512 signal used to control it.

  • Page 10: Dmx Mode

    DRIVENET 1664 DMX SETUP DMX Setup DMX MODE MAP Menu Up-Down ENTER Up-Down ENTER Full Type 8 bit 64ch = 64 DMX ch (default) DMX MODE = RGBW 4 ch each output: 1-Red, 2-Green, 3- DMX MODE Full Type 8 bit 64ch Blue, 4-White.
  • Page 11 DRIVENET 1664 RED Min default = 0 Menu Up-Down ENTER Up-Down ENTER RED Max default = 100 RED MIN RGBW MINIMUM VALUES This menu allows to select the minimum GREEN Min default = 0 levels for Red/White1, Green/White2, GREEN Max default = 100 Blue/White3 and White/White4.

  • Page 12: Automatic Mode

    DRIVENET 1664 AUTO By setting all the units connected to the AUTO Menu Up-Down ENTER Up-Down ENTER MASTER to DMX address 1, them will be SURE? synchronized with the Master unit AUTOMATIC MODE MENU: NO - ENTER: YES following the chase selected on it,...
  • Page 13 DRIVENET 1664 Menu Up-Down ENTER Up-Down ENTER ACTIVATE REC MODE CHPR1,2,3=011,012,013 REC MODE In DMX Recorder mode it is possible To create and store the scenes of the CHPR menu by using an external DMX MENU ENTER DOWN controller. DRIVENET is forced to Z1 Type 8 bit 10ch mode.
  • Page 14 DRIVENET 1664 SLAVE SLAVE Menu Up-Down ENTER Up-Down ENTER SURE SLAVE MODE The unit is forced to DMX address 1 MENU: NO - ENTER: YES receiving signal from the unit set in Auto mode. MENU ENTER DOWN EMERGENCY EMERGENCY EMERGENCY...
  • Page 15 DRIVENET 1664 TIME TIME Menu Up-Down ENTER Up-Down ENTER UNIT This menu shows the total UNIT life time 121 Hr - 36 min and the RGBW life time MENU ENTER DOWN NETWORK NETWORK Art-NET ENABLED or DISABLED Menu Up-Down ENTER...
  • Page 16 DRIVENET 1664 SYSTEM SYSTEM FAN MAX SPEED Menu Up-Down ENTER Up-Down ENTER 50% - 100% FAN MAX SPEED Default = 100% 100% FAN MAX SPEED This menu allows to select the internal fans speed MENU ENTER DOWN SOFTWARE SOFTWARE Display board software version...

  • Page 17: Dmx Protocol

    DRIVENET 1664 DMX PROTOCOL FULL TYPE 8 BIT 64 ch mode (Default) GREEN 1 GREEN 5 GREEN 9 GREEN 13 BLUE BLUE BLUE BLUE WHITE 1 WHITE 5 WHITE 9 WHITE 13 GREEN 2 GREEN 6 GREEN 10 GREEN 14...
  • Page 18 DRIVENET 1664 RED 2 Parameter: DMX CHANNEL Move DMX range Mid point range Mode Option Function Value DMX value (degrees) 000-255 Proportional colour GREEN 2 Parameter: DMX CHANNEL Move DMX range Mid point range Mode Option Function Value DMX value...
  • Page 19 DRIVENET 1664 RED 4 Parameter: DMX CHANNEL Move DMX range Mid point range Mode Option Function Value DMX value (degrees) 000-255 Proportional colour GREEN 4 Parameter: DMX CHANNEL Move DMX range Mid point range Mode Option Function Value DMX value...
  • Page 20 DRIVENET 1664 RED 6 Parameter: DMX CHANNEL Move DMX range Mid point range Mode Option Function Value DMX value (degrees) 000-255 Proportional colour GREEN 6 Parameter: DMX CHANNEL Move DMX range Mid point range Mode Option Function Value DMX value...
  • Page 21 DRIVENET 1664 RED 8 Parameter: DMX CHANNEL Move DMX range Mid point range Mode Option Function Value DMX value (degrees) 000-255 Proportional colour GREEN 8 Parameter: DMX CHANNEL Move DMX range Mid point range Mode Option Function Value DMX value...
  • Page 22 DRIVENET 1664 RED 10 Parameter: DMX CHANNEL Move DMX range Mid point range Mode Option Function Value DMX value (degrees) 000-255 Proportional colour GREEN 10 Parameter: DMX CHANNEL Move DMX range Mid point range Mode Option Function Value DMX value...
  • Page 23 DRIVENET 1664 RED 12 Parameter: DMX CHANNEL Move DMX range Mid point range Mode Option Function Value DMX value (degrees) 000-255 Proportional colour GREEN 12 Parameter: DMX CHANNEL Move DMX range Mid point range Mode Option Function Value DMX value...
  • Page 24 DRIVENET 1664 RED 14 Parameter: DMX CHANNEL Move DMX range Mid point range Mode Option Function Value DMX value (degrees) 000-255 Proportional colour GREEN 14 Parameter: DMX CHANNEL Move DMX range Mid point range Mode Option Function Value DMX value...
  • Page 25 DRIVENET 1664 RED 16 Parameter: DMX CHANNEL Move DMX range Mid point range Mode Option Function Value DMX value (degrees) 000-255 Proportional colour GREEN 16 Parameter: DMX CHANNEL Move DMX range Mid point range Mode Option Function Value DMX value...
  • Page 26 DRIVENET 1664 DMX PROTOCOL Z1 TYPE 8 BIT 10 ch mode SHUTTER DIMMER GREEN BLUE WHITE WHITE PRE-PROGRAMMED MACRO FUNCTIONS DMX CHANNEL SHUTTER Parameter: Move DMX range Mid point Mode Option Function range Value DMX value (degrees) Black-out Open 10-19...
  • Page 27 DRIVENET 1664 GREEN Parameter: DMX CHANNEL Move DMX range Mid point Mode Option Function range Value DMX value (degrees) 0-255 Proportional colour BLUE Parameter: DMX CHANNEL Move DMX range Mid point Mode Option Function range Value DMX value (degrees) 0-255...
  • Page 28 DRIVENET 1664 DMX CHANNEL Parameter: Move DMX range Mid point Mode Option Function range Value DMX value (degrees) IF CHANNEL 7 (WHITE PRE-PROGRAMMED) = WHITE CTC (Dmx range value 206 - 255) Color Temperature Correction Macros 0-255 IF CHANNEL 7 (WHITE PRE-PROGRAMMED) = NO FUNCTION (Dmx range value 0 - 43)

  • Page 29: Connection Diagram

    LED IN The maximum number of VICE R FC connectable to each output of ATTENTION: OUT1 DRIVENET 1664 PSU is 12 pcs. TO CLOSE THE LINE THE DIP Never plug the cable coming from SWITCH OF THE the PSU into OUT 1, OUT 2 or OUT...
  • Page 30 The maximum number of FOS 100 FC connectable to each output of the DRIVENET 1664 PSU is 1 piece. The maximum number of FOS 33 FC connectable to each output of the DRIVENET 1664 PSU is 3 pcs (2 x FOS 33 IN/OUT + 1 x FOS 33 END).
  • Page 31 WHITE + The maximum number of FREELINE 60 FC or FREELINE 90 FC unit connectable to each output of the DRIVENET 1664 PSU is 1 piece. NEVER CONNECT OR DISCONNECT THE UNIT WHEN THE PSU IS TURNED ON. The maximum distance between the DRIVENET PSU and the unit should not exceed 10 meter...
  • Page 32 ISO 9001:2008 DTS products are designed DTS quality system is certified and manufactured at the to the ISO 9001:2008 standard DTS plants in Italy *0517I276* D.T.S. Illuminazione s.r.l - Via Fagnano Selve 12-14 47843 Misano Adriatico (RN) Italy Tel.: +39 0541 611131 Fax +39 0541 611111 Info@dts-lighting.it www.dts-lighting.it...
