Micropilot FMR51, FMR52 FOUNDATION Fieldbus
8.6

Configuring level measurement

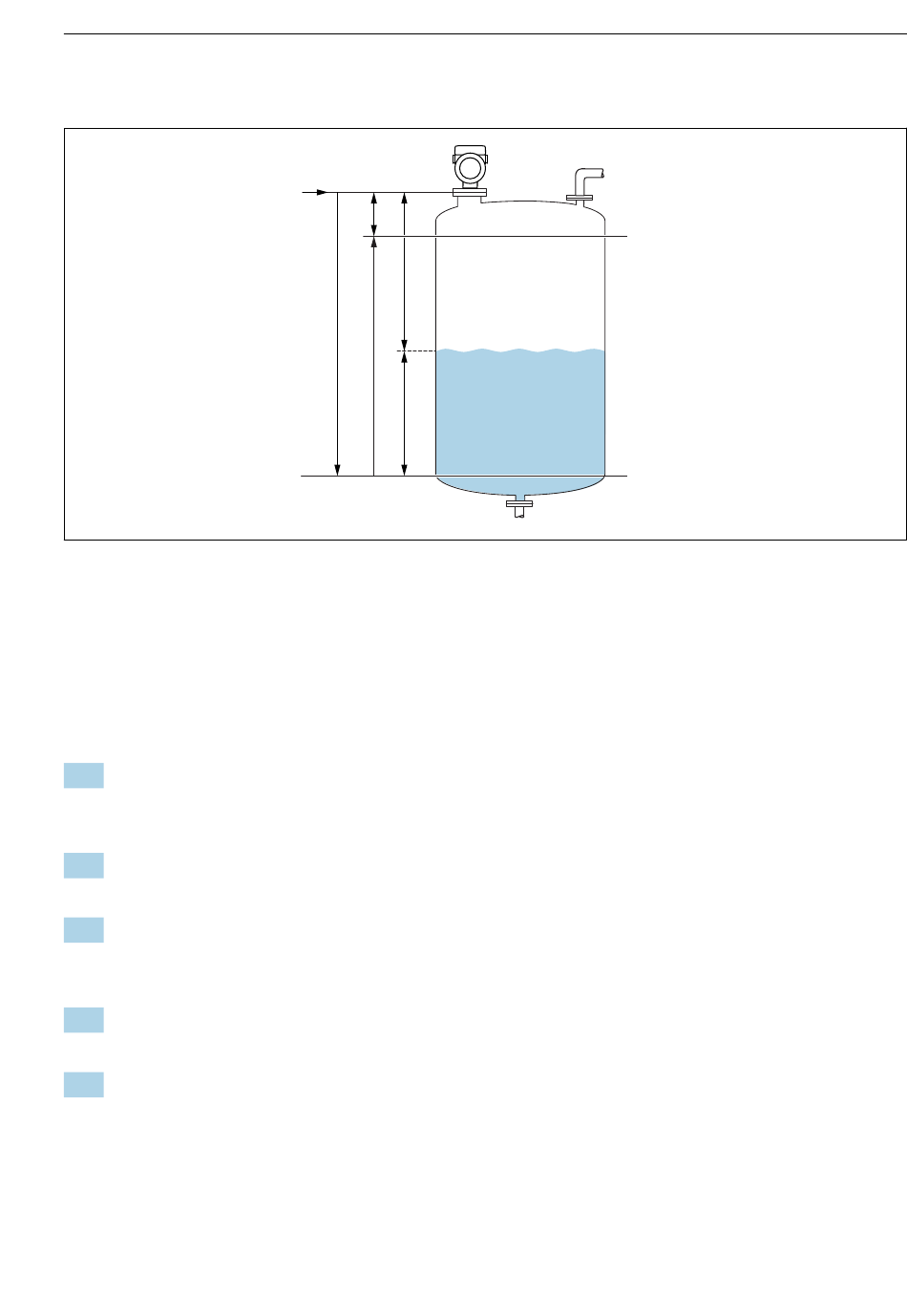

 14
Configuration parameters for level measurement in liquids
R
Reference point of measurement
D
Distance
L
Level
E
Empty calibration (= zero point)
F
Full calibration (= span)
1.
Setup → Device tag
 Enter a unique name for the measuring point to identify the device quickly within
the plant.
2.
Setup → Distance unit
 Used for the basic calibration (Empty / Full).
3.
Setup → Bin type
 Optimizes the signal filters for the respective bin type. Note: ' W orkbench test'
deactivates all filters. This option should exclusively be used for tests.
4.
Setup → Medium group
 Specify media group ("aqueous": DK>4 or "other": DK>1.9)
5.
Setup → Empty calibration
 Specify empty distance E (distance from reference point R to 0% mark).Setup
→ Advanced setup → Level → Tank/silo heightIf the parametrized measuring range
(Empty calibration) differs significantly from the tank or silo height, it is
recommended to enter the tank or silo height in this parameter. Example:
Continuous level monitoring in the upper third of a tank or silo. Note: For tanks
with conical outlet, this parameter should not be changed as in this type of
applications ' E mpty calibration' is usually not << the tank or silo height.
Endress+Hauser
R
BD
D
E
F
L
Commissioning
100%
0%
A0016933
35
