ASSEMBLY INSTRUCTIONS

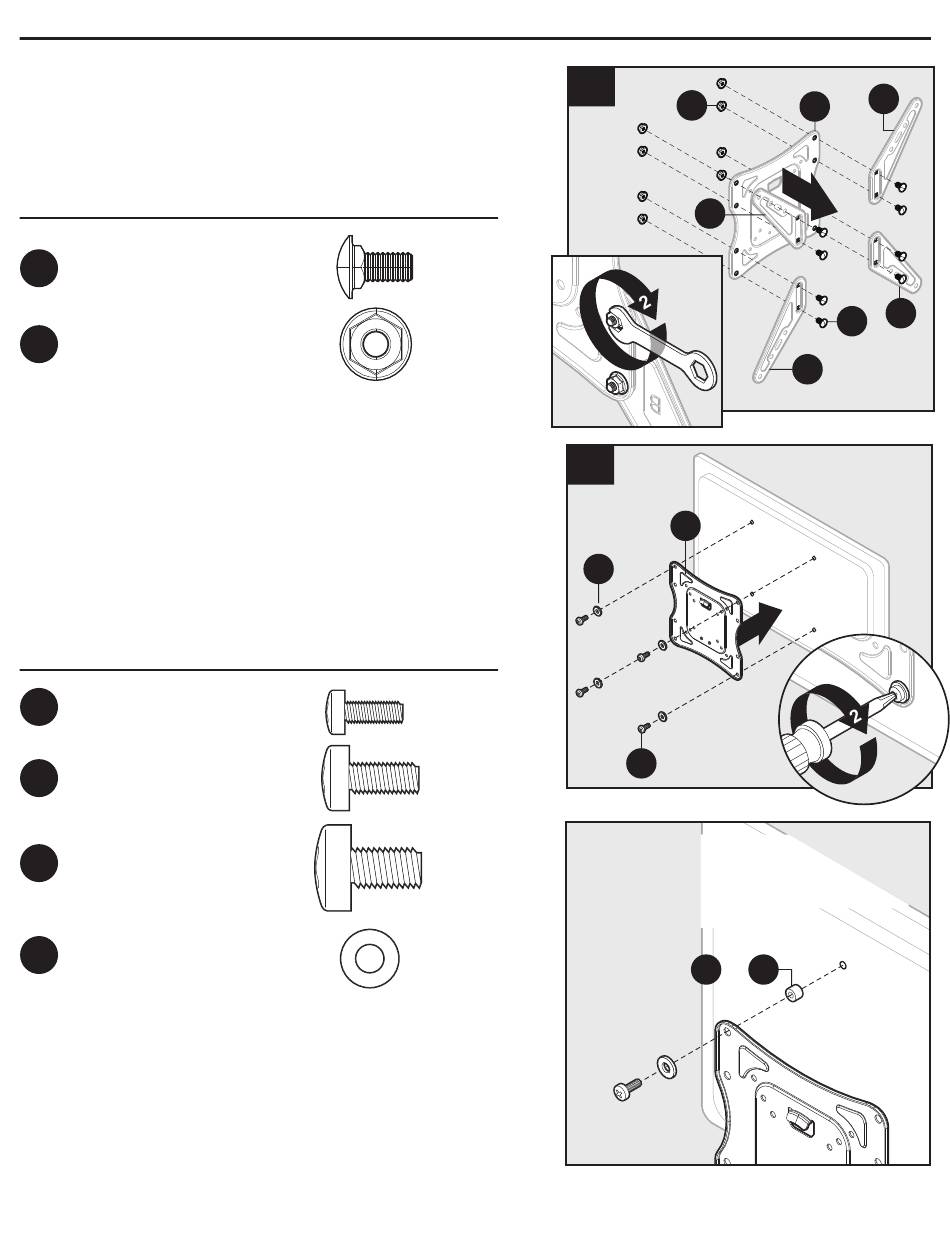

4. If needed, attach monitor adapters A (C) and
monitor adapters B (D) to monitor plate (E) in the
desired configuration using carriage screw (OO)
and nut (QQ). Secure with included wrench (RR).
Hardware Used
OO
M6 x 12 Carriage screw
QQ
M6 nut
5a. For flat back flat panel: Attach monitor plate (E)
with four steel washers (KK) and four screws (*).
* Note: Monitor plate (E) can be attached with M4 x 12
screws (AA), M6 x 15 screws (CC), or M8 x 15 screws
(DD) depending on your TV. Steel washer only for M4
and M6 screws.
Hardware Used
AA
M4 x 12 Screw
CC
M6 x 15 Screw
DD
M8 x 15 Screw
KK
Steel washer
4
x 8
x 8
5a
KK
x 4
x 4
Tip: 5 mm spacers (LL) and/or
x 4
10 mm spacers (MM) can also be
used to provide clearance for cables
and connectors.
x 4
7
QQ
E
1
C
D
E
1
*
LL or MM
D
C
OO
