ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-602-674-1000, 8 a.m. - 5 p.m., MST, Monday - Friday.
AB16244

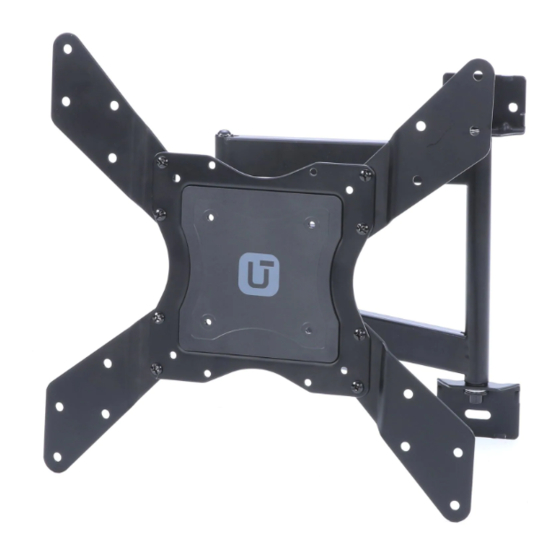

FULL MOTION TV MOUNT
Purchase Date
1
ITEM #0794078
MEDIUM – LARGE
MODEL #UT70C
Lowes.com
Español p. 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UT70C and is the answer not in the manual?

Questions and answers

Related Manuals for Utilitech UT70C

Summary of Contents for Utilitech UT70C

  • Page 1 ITEM #0794078 MEDIUM – LARGE FULL MOTION TV MOUNT MODEL #UT70C Español p. 16 ATTACH YOUR RECEIPT HERE Serial Number Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-602-674-1000, 8 a.m. - 5 p.m., MST, Monday - Friday.

  • Page 2: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Mounting arm Monitor adapter B End cap Monitor plate (pre-assembled to Monitor adapter A Mounting arm (A)) Lowes.com...
  • Page 3 HARDWARE CONTENTS (shown actual size) M4 x 12 M5 x 12 M6 x 15 M8 x 15 Screw Screw Screw Screw Qty. 4 Qty. 4 Qty. 4 Qty. 4 Anchor Qty. 2 8 mm Lag bolt Qty. 2 M4 x 30 M5 x 30 M6 x 30 M8 x 30...

  • Page 4: Safety Information

    SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNING • FAILURE TO READ, THOROUGHLY UNDERSTAND, AND FOLLOW ALL INSTRUCTIONS CAN RESULT IN SERIOUS PERSONAL INJURY, DAMAGE TO PERSONAL PROPERTY, OR VOIDING OF FACTORY WARRANTY.

  • Page 5: Specifications

    SPECIFICATIONS Dimensions and Mounting Configurations 400 mm (15.7 in.) 200 mm 300 mm (11.8 in.) (7.9 in.) 100 mm (3.9 in.) 400 mm (15.7 in.) 300 mm (11.8 in.) 200 mm (7.9 in.) 200 mm (7.9 in.) 300 mm (11.8 in.) 400 mm (15.7 in.) Lowes.com...
  • Page 6 ASSEMBLY INSTRUCTIONS 1. Remove two mounting arm screws (PP) from mounting arm (A) and save them for later use. Hardware Used Mounting arm screw 2. Remove monitor plate (E) from mounting arm (A). 3. Determine mounting configuration to use based 15.7 in.
  • Page 7 ASSEMBLY INSTRUCTIONS 4. If needed, attach monitor adapters A (C) and monitor adapters B (D) to monitor plate (E) in the desired configuration using Phillips screws (OO). Hardware Used Phillips screw 5a. For flat back flat panel: Attach monitor plate (E) with four square washers (KK) and four screws (*).
  • Page 8 ASSEMBLY INSTRUCTIONS 5b. For curved back flat panel: Attach monitor plate (E) with four spacers (*), four square washers (KK) and four screws (**). * Note: 5 mm spacers (LL) or 10 mm spacers (MM) can be used depending on your TV. ** Note: Monitor plate (E) can be attached with M4 x 30 screws (EE), M5 x 30 screws (FF), M6 x 30 screws (GG), or M8 x 30 screws (HH) depending on...
  • Page 9 ASSEMBLY INSTRUCTIONS 6. If screws are too long, additional 5 mm spacers (LL), 10 mm spacers (MM), and steel washers (NN) may be needed. Hardware Used 5 mm Spacer 10 mm Spacer Steel washer Wood Stud Installation Note: For concrete, proceed to step 12. 7.
  • Page 10 ASSEMBLY INSTRUCTIONS 8. Use mounting arm (A) to mark two mounting hole locations. 9. Drill two 7/32 in. pilot holes 2-1/3 in. (60 mm) deep at the marked locations for the mounting holes. 10. Mount top of mounting arm (A) using 8 mm lag bolt (II) with a 1/2 in.
  • Page 11 ASSEMBLY INSTRUCTIONS 11. Make sure mounting arm (A) is level, then secure bottom of mounting arm (A) using 8 mm lag bolt (II). Hardware Used 8 mm Lag bolt Concrete Installation 12. Use mounting arm (A) to mark two mounting hole locations.
  • Page 12 ASSEMBLY INSTRUCTIONS 14. Insert anchors (JJ) into holes. Tap with hammer (not included) if necessary. Hardware Used Anchor 15. Mount top of mounting arm (A) using 8 mm lag bolt (II) with a 1/2 in. socket wrench (not included). Hardware Used 8 mm Lag bolt 16.
  • Page 13 ASSEMBLY INSTRUCTIONS Final Installation 17. Snap end caps (B) onto top and bottom of mounting arm (A). 18. Place mounting plate (E) onto mounting arm (A). 19. Secure mounting plate (E) to mounting arm (A) with the two previously removed mounting arm screws (PP).
  • Page 14 ASSEMBLY INSTRUCTIONS Post Installation Level 20. If needed, flat panel can be leveled +/– 3 degrees. ± 3° Note: Leveling will be difficult if mounting arm screws (PP) are too tight. Adjust Tilt 21. Adjust TV to desired tilt and hold in place. Rotate handle clockwise as far as possible.

  • Page 15: Warranty

    This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Specifications are subject to change without prior notice. Printed in China Utilitech & UT Design® is a registered trademark of LF, LLC. All rights reserved. Lowes.com...
  • Page 16 ARTÍCULO #0794078 MEDIANO – GRANDE SOPORTE DE MOVIMIENTO COMPLETO PARA INSTALAR TELEVISOR MODELO #UT70C ADJUNTE SU RECIBO AQUÍ Número de serie Fecha de compra ¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro Departamento de Servicio al Cliente al 1-602-674-1000, de lunes a viernes de 8 a.m. a 5 p.

  • Page 17: Contenido Del Paquete

    CONTENIDO DEL PAQUETE PIEZA DESCRIPCIÓN CANTIDAD PIEZA DESCRIPCIÓN CANTIDAD Brazo de montaje Adaptador del monitor B Tapa de extremo Placa del monitor (preensamblada en el Adaptador del monitor A brazo de montaje [A]) Lowes.com...
  • Page 18 ADITAMENTOS (se muestran en tamaño real) Tornillo Tornillo Tornillo Tornillo M4 x 12 M5 x 12 M6 x 15 M8 x 15 Cant. 4 Cant. 4 Cant. 4 Cant. 4 Ancla de expansión Cant. 2 Tirafondo de 8 mm Cant. 2 Tornillo Tornillo Tornillo...

  • Page 19: Información De Seguridad

    INFORMACIÓN DE SEGURIDAD Lea y comprenda por completo este manual antes de intentar ensamblar, utilizar o instalar el producto. ADVERTENCIA • NO LEER, COMPRENDER COMPLETAMENTE O SEGUIR TODAS LAS INSTRUCCIONES PUEDE PROVOCAR LESIONES PERSONALES GRAVES, DAÑOS A LA PROPIEDAD PERSONAL O LA ANULACIÓN DE LA GARANTÍA DE FÁBRICA.

  • Page 20: Especificaciones

    ESPECIFICACIONES Dimensiones y configuraciones de montaje 400 mm (15,7 pulg.) 200 mm 300 mm (11,8 pulg.) (7,9 pulg.) 100 mm (3,9 pulg.) 400 mm (15,7 pulg.) 300 mm (11,8 pulg.) 200 mm (7,9 pulg.) 200 mm (7,9 pulg.) 300 mm (11,8 pulg.) 400 mm (15,7 pulg.) Lowes.com...
