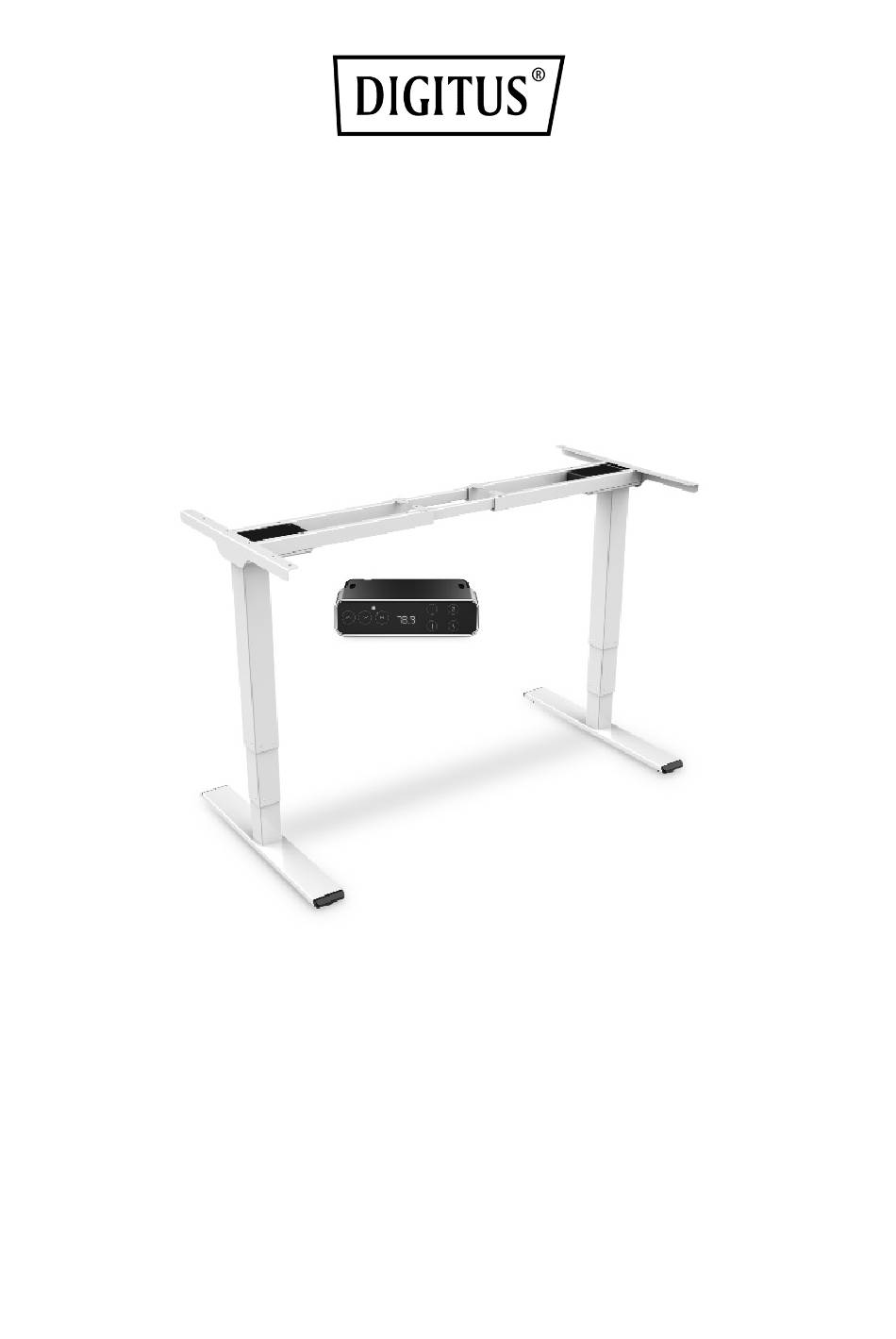

- Page 1 Electrically Height-Adjustable Desk Frame Frame Assembling and Display Manual DA-90433 / DA-90434 / DA-90435...
-
Page 2: Table Of Contents

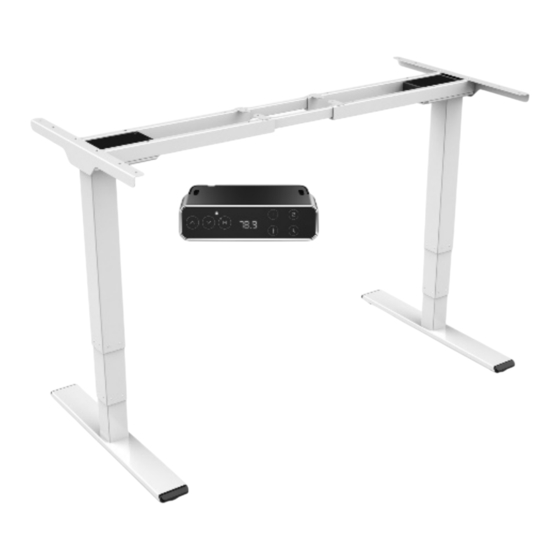

With this electric height-adjustable table frame you can easily convert your desk into an ergonomic sit/stand workstation. Save the cost and hassle of finding a height-adjustable desktop and just use the DIGITUS® electrically height- adjustable table frame instead. This set is suitable for all tabletops between 110 and 200 cm in width and 60 to 100 cm in depth. -
Page 3: Package Content
Weight 28,3 kg Color DA-90433: White DA-90434: Black DA-90435: Grey Power supply letter Euro, plug (type C, CEE 7/16) – C7, device socket, length: 3 m Shape Rectangular Column Stage Height Range 620-1270 mm (without tabletop) Width Range 1100-1700 3. Package content •... -
Page 4: Component List
4x M6 8x M6 8x M6 6x St 4.2 6x Cable tie 16x St 4.2 1x Allen Key 4 x 4 mm Attention: The drawings are for guidance only and they may differ slightly from the product and fittings received. Please contact our customer service department if you have any questions. -
Page 6: Step 1: Install The Supporting Beam And The Side Bracket
Step 1: Install the supporting beam and the side bracket: Tighten it • If the connecting rod cannot be inserted into the supporting beam, please loosen the screws on the beam • Using screws (A) to connect to the connection rod (3) with the left supporting beam (4) and the right supporting beam (5), and tighten them with the allen key (G) •... -
Page 7: Step 3: Install The Feet
Step 3: Install the feet: • Connect the feet (1) and the lifting column (2) with screws (C) and tighten them with the allen key (G) Step 4: Install the adapter arm: The expansion of supporting beam cannot exceed this hole. Loosen Adjust Tighten... -
Page 8: Step 5: Install The Tabletop, Handset, Control Box And Adapter
Step 5: Install the tabletop, handset, control box and adapter: Insert • Fix the tabletop with screws (F), and then to fix the control box (9) on the tabletop with screws (F). The handset (10) is fixed on the tabletop with self- owned screw and insert the adapter into the adapter arm. -
Page 9: Operating Unit
Port for adapter cable Port for cable Port for connected Headset to the lifting column 5. Operating unit Product Outline LED Display Product Specification Button introduction: There are seven buttons that "▲", "▼", "1", "2", " ", " ", "M" (1) "▲": Adjust the desk upwards (2) "▼": Adjust the desk downwards (3) "1":... -
Page 10: Operating Instructions
Operating Instructions • Child lock function: a. When the child lock is turned on, the child lock blue indicator light (﹀ and M directly above) lights up b. Press the button indicator to flash once c. To unlock or start the child lock, you need to press and hold the M button for about 5 seconds. -
Page 11: Important Safety & Usage Instructions
• Troubleshooting: a. Reset the system: When the LED shows " " or " ", press “▼” button and hold it until the desk reaches its lowest height and rebounds (drives up a bit) - then stops and show the current height, it means the reset has been successfully finished. - Page 12 • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person in order to avoid a hazard • Please make sure there is no hazard sources in your operating environment e.g., do not litter the tools around.
-
Page 13: Waste Disposal
• Never operate the system if it's in moist environment or its electrical components have contact with liquid • Don't operate the system if the control box makes noise or odor. Alterations of the given power unit and control box aren't allowed •...
