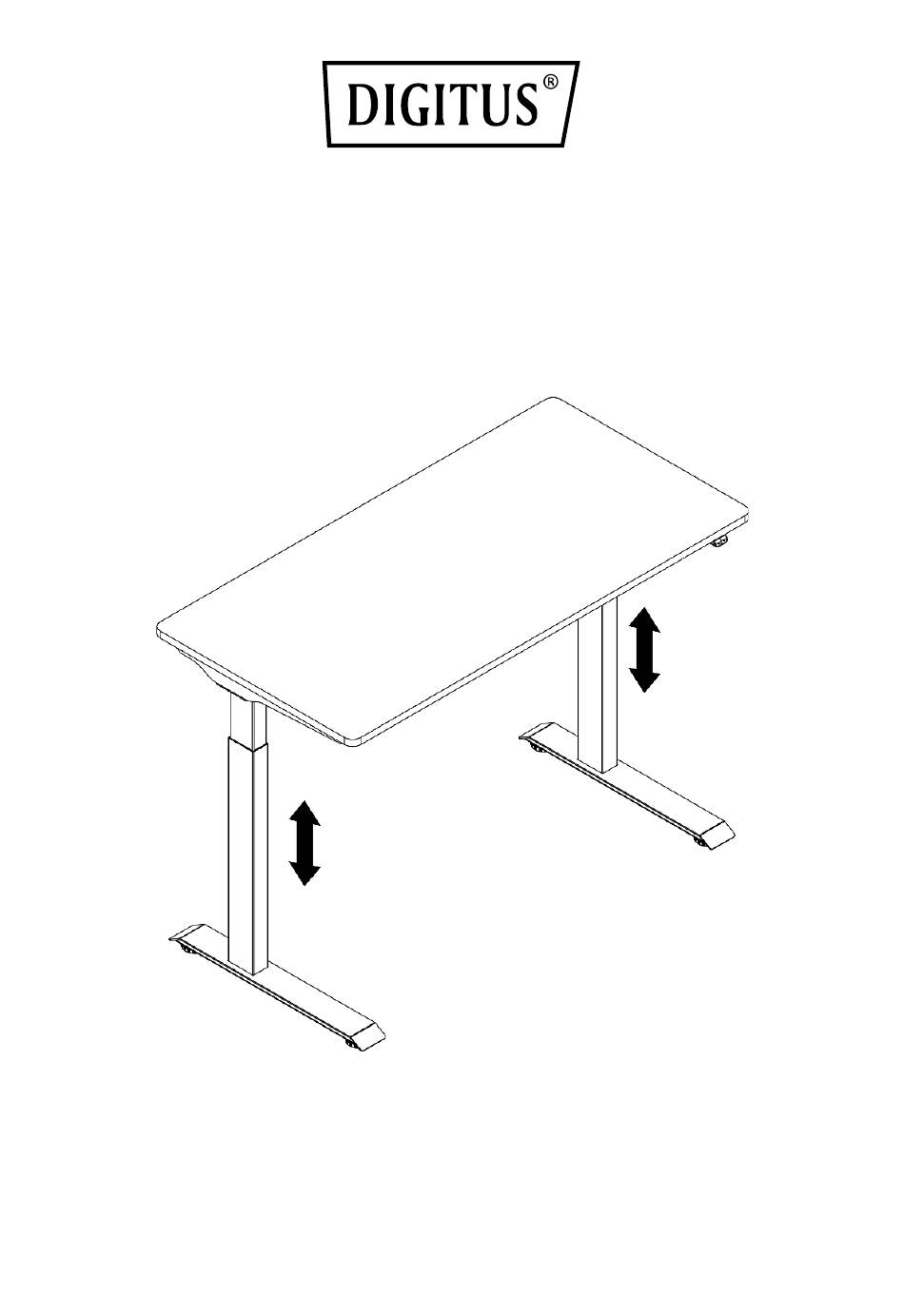

- Page 1 Electric Height-Adjustable Desk Quick Installation Guide DA-90407...
-
Page 2: Package Content

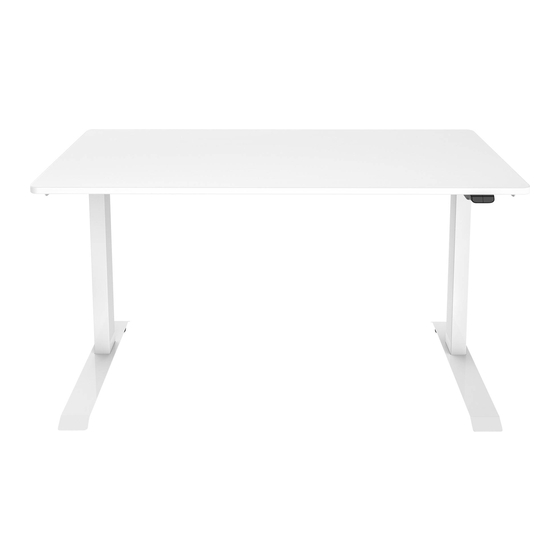

Do a good deed for yourself and your health with this height-adjustable table frame from DIGITUS®! The height of the table can be adjusted conveniently using the integrated control panel from 73 to 123 cm. Installation is relatively easy to carry out thanks to pre-assembled table elements. -
Page 3: Product Features
Attention: The drawings below are only for reference which might be slightly different from the actual object, please in kind prevail. Any tools missing or installation problems, please contact the customer service firstly. Product features • Height adjustable between 73 and 123 cm Dimensions of tabletop: W 120 x D 60 cm •... -
Page 4: Mounting Instructions
Mounting instructions Step 1) Install the lifting column Rotate the column after inserting it to the bottom to avoid height difference. Long side of the column Short side of the desktop Install the lifting column ② to the tabletop ①, then tighten the screws B with allen key D. - Page 5 ③ + ④ Tighten the screws (B) with 4*4 allen key Step 2) Install the feet Connect lifting columns ② to the feet ④, tighten the screws C with allen key D.
- Page 6 Step 3) Install the hand switch Fix the hand switch with the screws A and tighten it with 5*5 wrench D. Step 4) Connect all cables to the adapter Connect the power after the wiring is complete. Connect the switch cable to the DC port and the motor cable to the M1 port. Insert the adapter ⑥...
- Page 7 Fix the cables to the tabletop with cable management ⑦ to keep the desk tidy. Organzise the cables Ripped Fixed...
- Page 8 Operation instructions Hand switch Product specification DC input:19-33VDC, 150W • Output M1:19-33VDC, 4A • Number of controlled motors:1 PC • Standby power:<0.5W • • Overload protection Overtime protection • • Sensor anti-collision protection (first gear) • Working frequency: Work 2 minutes, rest 18 minutes •...
- Page 9 Reset At the lowest position, long press the down button for more than 5 seconds to enter the reset state, until the lifting system bottoms out and the rebound stops, the reset is successful. When the lifting system fails, release the button and long press the down button until the lifting system bottoms out and rebounds and stops, and the reset is successful.
-
Page 10: Security Advice
1. Restart after suspending for 18 mins Overwork while connecting with power (Duty cycle: max 2 min on/10 min off) 2. Contact your supplier or dealer 1. Perform a reset operation Not enough up & down height 2. Contact your supplier or dealer Security advice Power supply: AC100V-240V,50/60Hz Service Environment: 0-40℃... -
Page 11: Waste Disposal
Waste disposal This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.
