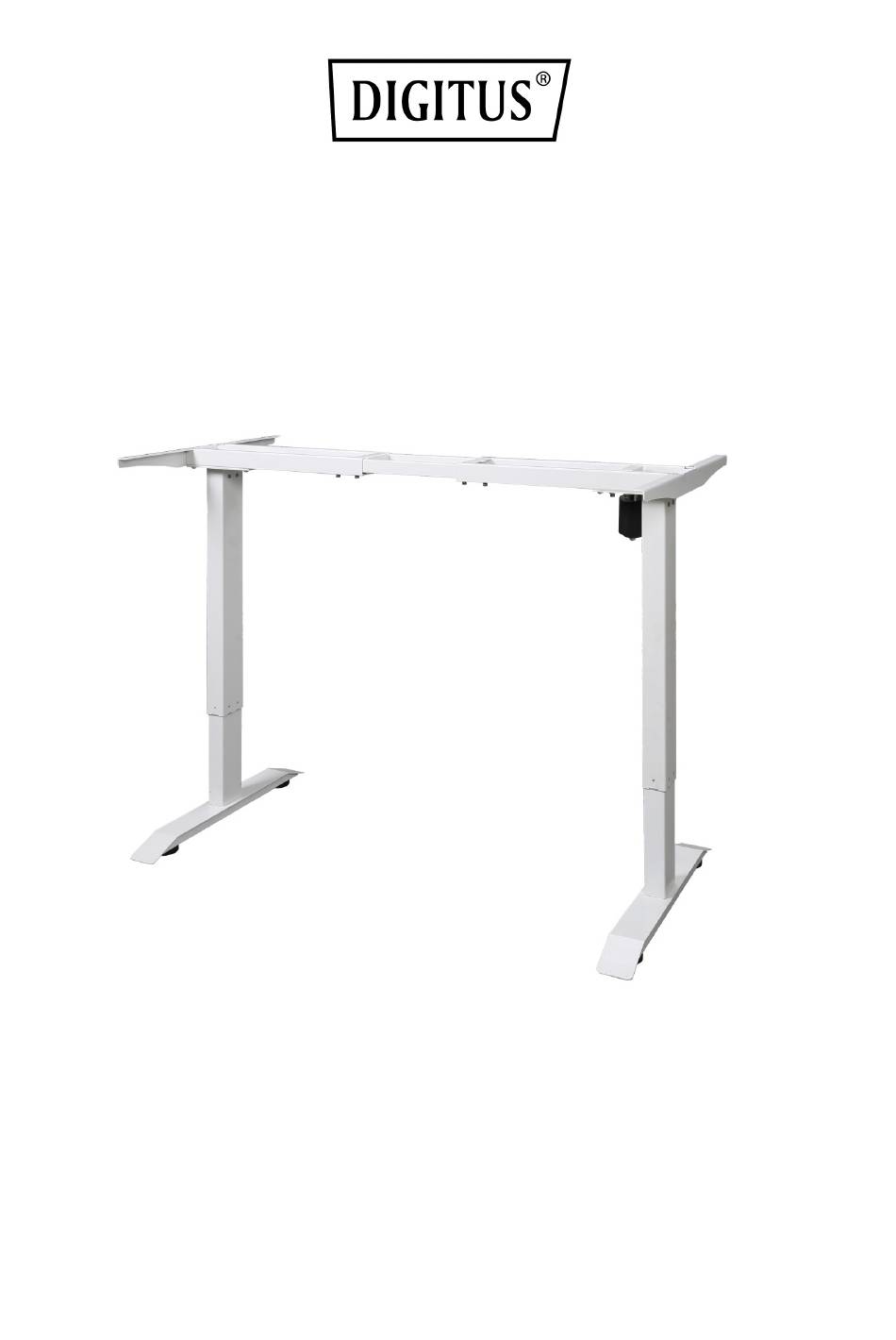

- Page 1 Electric Height-Adjustable Variable Stand / Sit Desk Frame USER MANUAL DA-90387 Rated Voltage: 100-240v Continuous Working 2 Minutes, rest at least 18 minutes.
-
Page 2: Caution / Information
CAUTION / INFORMATION IMPORTANT: Please read this manual carefully 1. This height adjustable desk has electric motors and is designed for use in dry work areas only. 2. Make sure no obstacles are in the desk’s path. Make sure the desktop is not touching any walls. Make sure all cords are appropriate length to accommodate the change in height. - Page 3 Tools Required Hexagonal Wrench 2.5mm, 4mm, 5mm Screwdriver (Prepared Yourself) Hardware M6x20 M6x14 (18) ST4.8x19 (10) ST3.5x19 Desktop Gaskets Hexagonal Wrench 2.5mm Hexagonal Wrench 4mm/ 5mm Clips Adjustable Feet Control box Keypad Power Cord...
- Page 4 Part Diagram Description Crossbar Assembly Legs Feet Adjustable Foot Transmission Bar Desktop Bracket Keypad Controller...
-
Page 5: Installation Step
Installation Step 1. Loosen Crossbar. Loosen the screw and adjust the length of the table to expose the mounting holes on the side of the side. - Page 6 2. Assembly Left/right Legs 3. Attach the desk feet...
- Page 7 Attach the desktop bracket Assembly the Transmission Bar Loosen the screws of the hexagonal tube Insert transmission bar Adjust the length according the size of desktop Tighten the screws on the hexagonal tube. Insert the desk gasket on the desktop bracket.
- Page 8 Fit the desktop on the frame...
- Page 9 Connection and installation of Control box and keyboard Plug cables from the motor to the control box. Plug the cable from the keyboard to the control box. Plug the power cable to the other side of control box. Use the ST 4.8*16 screws fix the keyboard and control box under the desktop.
- Page 10 Digital Keyboard Manual 1. Overview Main features of the programmable Keyboard are showed in the figure below: M: Store Memory Key Memory Position Key 1 Memory Position Key 2 Memory Position Key 3 Memory Position Key 4 ...
- Page 11 2. Keyboard Function and Operation Function Description Note For an upward adjustment of the The desk will desk push this continue driving Desktop Desk button. upwards until you Up Key Upwards Push this button release the button, or until the desired the maximum height height of the desk is reached...
- Page 12 b. If the Position of desktop is not at the lowest height. Please press the "UP" and "DOWN" at the same time until the desk reaches its lowest height, and the system will make a sound of beep, reset is complete. 4.
- Page 13 5. Switch the unit between CM and Inch The height unit can be switched between CM and Inch, check the proceed as follows: Press the "M" and "1" at the same time for 3 seconds. Display started flashing and read "C-E". Press "1"...
- Page 14 Display Trouble Resolve Readout Description Lifting speed of please check all the wired connection two legs is not are secure , including legs to cable, and able to lift at cables to control box. same position. Make sure the loading capacity of desk desk Leg 1 was is less then 250lbs, and then reset the overloaded...
