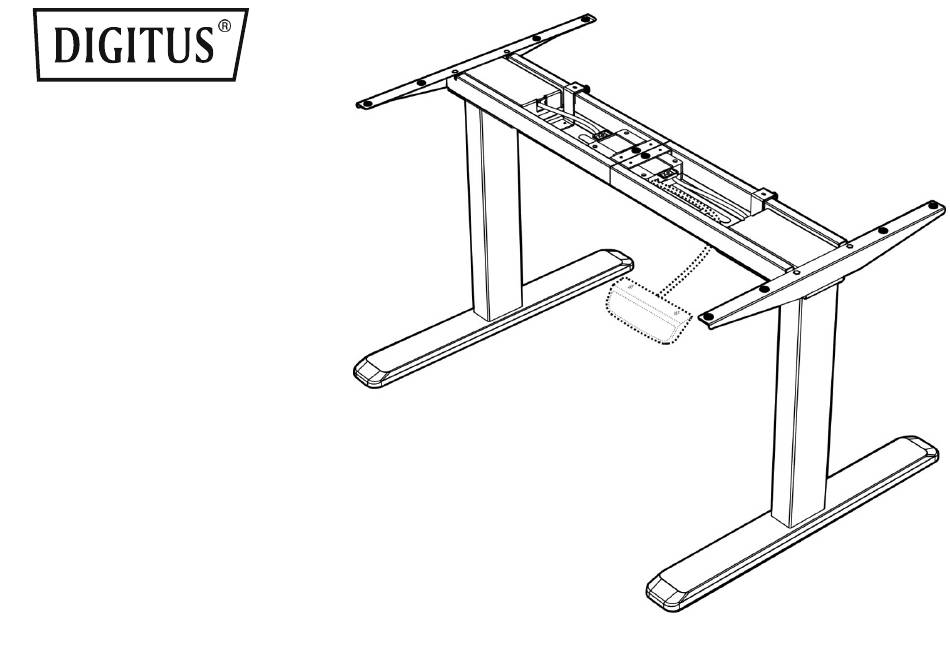

- Page 1 Instruction Manual ELECTRIC SIT-STAND DESK DA-90388 • DA-90389 • DA-90390...
- Page 2 | Preface This electric height adjustable standing desk consists of a heavy-duty steel desk frame and a motorized height adjustment system. Please read and completely understand this manual before installation in order to make sure the safe and correct use of the system and maintain the longevity of the overall construction and the built-in electronics.
-
Page 3: Electrical Safety Instructions
Electrical Safety Instructions: The product is powered by electricity. In order to avoid burns, fire and electric shock, please read the instructions carefully. Don't clean the product with water Never operate the system if it's in moist environment while the power is still connected. or its electrical components have contact with liquids. - Page 4 | Preparation What are the specifications you need to know? Weight Capacity Power input Operation Temperature 125kg (275lbs) (100-240V) (-5°C ~+40°C) What are the tools you require while installation? Bubble Level Allen Wrench Drill Screwdriver (Included) What's the thing you'd A Shipping Blanket better have before to protect the desk...
- Page 5 | Checklist and Installation A (x1) B (x2) C (x2) D (x2) Crossbar Side Bracket Lifting Column Foot E (x1) F (x1) G (x1) H (x1) Fixing Plate Control Box Power Plug Cable Management Tray The picture of the controller is for your reference only.
- Page 6 S-A (x8) S-B (x8) S-C (x10) Hex Head Screw Hex Head Screw Head Screw+ 1 Spacer S-D (x2) S-E (x2) S-F (x4) Head Screw Head Screw Head Screw S-G (x3) S-H (x10) S-I (x1) Cable Clip Anti-Vibration Pad Allen Wrench Now let's start the installation.
- Page 7 | Attaching Side Brackets Shipping Blanket Please prepare a spacious area for installation, and put a shipping blanket on the area to prevent scratches. Carefully place the desktop(not included) upside down on the blanket Place the crossbar and side brackets on the top.
-
Page 8: Adjusting The Frame
| Adjusting the Frame Loosen the hex head screws that fix the adjustable junction, but don't completely take out the screws. - Page 9 Ensure that the frame is placed in the center of the table. Then adjust the frame to suit the size of the tabletop. When adjusting the frame position, please make sure it doesn't exceed the range of silk screen printing on the inner crossbar.
- Page 10 Retighten all the hex head screws to finish the adjustment.
- Page 11 | Drilling Mounting Holes Use a drill to make mounting holes on the backside of the tabletop through the 8 mounting holes on the side brackets. Note: The depth of the mounting holes should be over 10mm and the diameter should be less than 3mm. Drill...
- Page 12 | Assembling the Lifting Columns Insert one lifting column into one end of the crossbar with the head of the lifting column facing inward. Make sure the mounting holes on the lifting column completely align with the screw holes on the crossbar. ...
- Page 13 | Assembling the Feet Place the foot on the bottom of the lifting column. Align the mounting holes on the foot with the screw holes on the lifting column. Fix the foot using 4 screws with the Allen wrench ...
- Page 14 | Assembling the Fixing Plate Align the mounting holes on the fixing plate with the screw holes as shown. Attach the fixing plate on the center of the crossbar with 2 screws using a screwdriver. Note: The arrow on the fixing plate indicates the direction of sliding in the control box. Follow the direction of the arrow to mount the control box in the next step.
- Page 15 | Attaching the Control Box Turn over the desk frame with the crossbar facing up. At least two people are required when turning over the desk frame. If only one person turns over the desk frame, CAUTION serious bodily injuries might occur. ...
- Page 16 The arrow on the fixing plate indicates the direction of sliding in the control box Follow the direction of the arrow to mount the control box. Slide the control box to the center of fixing plate.
- Page 17 | Assembling the Cable Management Tray Align the mounting holes on the tray hangers with the screw holes on the cable management tray. Assemble the tray hangers to the cable management tray with 4 screws from below using a screwdriver Screwdriver Hang the cable management tray on the crossbar as shown.
- Page 18 Tighten the knobs on the tray hangers.
- Page 19 | Assembling the Desktop Attach the anti-vibration pad to the surface of the crossbar on the ten positions as shown.
- Page 20 Align the previously drilled screw holes with the mounting holes on the crossbar. Insert and tighten the 4 screws from below. Repeat the same process to assemble the other side of the desktop. Screwdriver...
- Page 21 • Attach the controller to the desktop with 2 screws using a driller. • Stick the adhesive cable clip under desk to organize cords. Drill...
-
Page 22: Level Adjustment
| Level Adjustment There are two adjustable foot pads under each foot. If the floor isn't even, simply turn the pad to adjust the level to make the desk stable. Tip: Use a bubble level to check if the desktop is even. Bubble Level... -
Page 23: Height Adjustment
| Height Adjustment Connect the desk to power. You can now use the sit-stand desk. Note: We have another manual of the digital controller for detailed instruction. Please check the Digital Control Panel For Electric Height Adjustable Desk User Guide.
