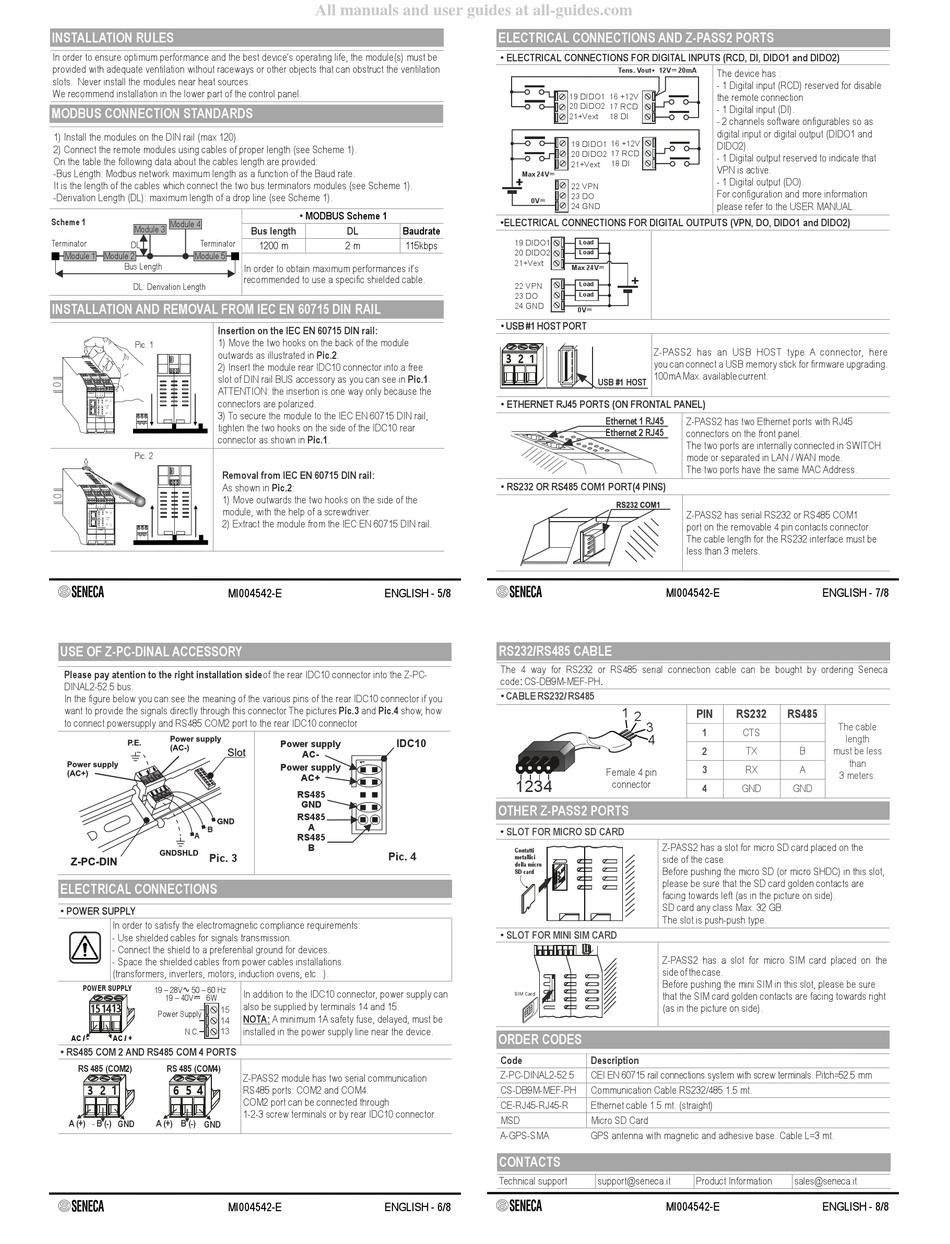

INSTALLATION RULES
In order to ensure optimum performance and the best device's operating life, the module(s) must be
provided with adequate ventilation without raceways or other objects that can obstruct the ventilation
slots. Never install the modules near heat sources.
We recommend installation in the lower part of the control panel.
MODBUS CONNECTION STANDARDS
1) Install the modules on the DIN rail (max 120).
2) Connect the remote modules using cables of proper length (see Scheme 1).
On the table the following data about the cables length are provided:
-Bus Length: Modbus network maximum length as a function of the Baud rate.
It is the length of the cables which connect the two bus terminators modules (see Scheme 1).
-Derivation Length (DL): maximum length of a drop line (see Scheme 1).
Scheme 1
Module 4
Module 3
Terminator Terminator
DL
Module 1 Module 2 Module 5
Bus Length
DL: Derivation Length
INSTALLATION AND REMOVAL FROM IEC EN 60715 DIN RAIL
Insertion on the IEC EN 60715 DIN rail:
1) Move the two hooks on the back of the module
Pic. 1
outwards as illustrated in Pic.2.
2) Insert the module rear IDC10 connector into a free
slot of DIN rail BUS accessory as you can see in Pic.1.
ATTENTION: the insertion is one way only because the
USB #1 1 2 3 13 14 15
4 5 6
S SENECA
PWR RX1 connectors are polarized.
MAIN
RUN TX1 ANT
LAN/
WAN RX2 3G PWR
SWITCH TX2 STAT
VPN RX4
3) To secure the module to the IEC EN 60715 DIN rail,
SERV TX4 DIV
ANT
Z-PASS2
COM1
tighten the two hooks on the side of the IDC10 rear
connector as shown in Pic.1.
Pic. 2
Removal from IEC EN 60715 DIN rail:
As shown in Pic.2:
1) Move outwards the two hooks on the side of the
USB #1 1 2 3 13 14 15
4 5 6
module, with the help of a screwdriver.
S SENECA
PWR RX1
MAIN
RUN TX1 ANT
LAN/
WAN RX2 3G PWR
SWITCH TX2 STAT
2) Extract the module from the IEC EN 60715 DIN rail.
VPN RX4
SERV TX4 DIV
ANT
Z-PASS2
COM1

MI004542-E
USE OF Z-PC-DINAL ACCESSORY
Please pay atention to the right installation side of the rear IDC10 connector into the Z-PC-
DINAL2-52.5 bus.
In the figure below you can see the meaning of the various pins of the rear IDC10 connector if you
want to provide the signals directly through this connector . The pictures Pic.3 and Pic.4 show, how
to connect powersupply and RS485 COM2 port to the rear IDC10 connector .
B
A
Pic. 3
ELECTRICAL CONNECTIONS
 POWER SUPPLY
In order to satisfy the electromagnetic compliance requirements:
- Use shielded cables for signals transmission.
- Connect the shield to a preferential ground for devices.
- Space the shielded cables from power cables installations.
(transformers, inverters, motors, induction ovens, etc...).
POWER SUPPLY
19 – 28V 50 – 60 Hz
19 – 40V 6W
151413
15
Power Supply
14
N.C. 13
AC / - AC / +
 RS485 COM 2 AND RS485 COM 4 PORTS
RS 485 (COM2) RS 485 (COM4)
3 2 1 6 5 4
A (+) B (-) GND
A (+) B (-) GND

MI004542-E
All manuals and user guides at all-guides.com

MODBUS Scheme 1
Bus length DL Baudrate
1200 m 2 m 115 kbps
In order to obtain maximum performances it's
recommended to use a specific shielded cable.
ENGLISH - 5/8
IDC10
Power supply
AC-
Power supply
AC+
RS485
GND
RS485
A
RS485
B
Pic. 4
In addition to the IDC10 connector, power supply can
also be supplied by terminals 14 and 15.
NOTA: A minimum 1A safety fuse, delayed, must be
installed in the power supply line near the device.
Z-PASS2 module has two serial communication
RS485 ports: COM2 and COM4.
COM2 port can be connected through
1-2-3 screw terminals or by rear IDC10 connector.
ENGLISH - 6/8
ELECTRICAL CONNECTIONS AND Z-PASS2 PORTS
 ELECTRICAL CONNECTIONS FOR DIGITAL INPUTS (RCD, DI, DIDO1 and DIDO2)
Tens. Vout+ 12V 20mA
19 DIDO1
16 +12V
20 DIDO2
17 RCD
21+Vext 18 DI
16 +12V
19 DIDO1
17 RCD
20 DIDO2
18 DI
21+Vext
Max 24V
22 VPN
23 DO
0V
24 GND
ELECTRICAL CONNECTIONS FOR DIGITAL OUTPUTS (VPN, DO, DIDO1 and DIDO2)
19 DIDO1 Load
20 DIDO2 Load
21+Vext
Max 24V
Load
22 VPN
Load
23 DO
24 GND
0V
 USB #1 HOST PORT
Z-PASS2 has an USB HOST type A connector, here
3 2 1
you can connect a USB memory stick for firmware upgrading.
100mA Max. available current.
USB #1 HOST
 ETHERNET RJ45 PORTS (ON FRONTAL PANEL)
Ethernet 1 RJ45
Ethernet 2 RJ45
 RS232 OR RS485 COM1 PORT(4 PINS)

MI004542-E
RS232/RS485 CABLE
The 4 way for RS232 or RS485 serial connection cable can be bought by ordering Seneca
code: CS-DB9M-MEF-PH.
 CABLE RS232/ RS485
1 2
3
4
Female 4 pin
1 2 3 4 connector
OTHER Z-PASS2 PORTS

SLOT FOR MICRO SD CARD
Z-PASS2 has a slot for micro SD card placed on the
Contatti
metallici side of the case.
della micro
Before pushing the micro SD (or micro SHDC) in this slot,
SD card
please be sure that the SD card golden contacts are
facing towards left (as in the picture on side).
SD card any class Max. 32 GB.
The slot is push-push type.

SLOT FOR MINI SIM CARD
Z-PASS2 has a slot for micro SIM card placed on the
side of the case.
Before pushing the mini SIM in this slot, please be sure
SIM Card
that the SIM card golden contacts are facing towards right
(as in the picture on side).
ORDER CODES
Code Description
Z-PC-DINAL2-52.5 CEI EN 60715 rail connections system with screw terminals. Pitch=52.5 mm
CS-DB9M-MEF-PH Communication Cable RS232/485 1.5 mt.
CE-RJ45-RJ45-R Ethernet cable 1.5 mt. (straight)
MSD Micro SD Card
A-GPS-SMA GPS antenna with magnetic and adhesive base. Cable L=3 mt.
CONTACTS
Technical support support@seneca.it

MI004542-E
The device has :
- 1 Digital input (RCD) reserved for disable
the remote connection
- 1 Digital input (DI).
- 2 channels software onfigurables so as
digital input or digital output (DIDO1 and
DIDO2).
- 1 Digital output reserved to indicate that
VPN is active.
- 1 Digital output (DO).
For configuration and more information
please refer to the USER MANUAL.
Z-PASS2 has two Ethernet ports with RJ45
connectors on the front panel.
The two ports are internally connected in SWITCH
mode r o separate in LAN / WAN d mode .
The two ports have the same MAC Address.
Z-PASS2 has serial RS232 or RS485 COM1
port on the removable 4 pin contacts connector.
The cable length for the RS232 interface must be
less than 3 meters.
ENGLISH - 7/8
PIN RS232 RS485
The cable
1 CTS
length
2 TX B must be less
than
3 RX A
3 meters.
4 GND GND
Product Information sales@seneca.it
ENGLISH - 8/8
