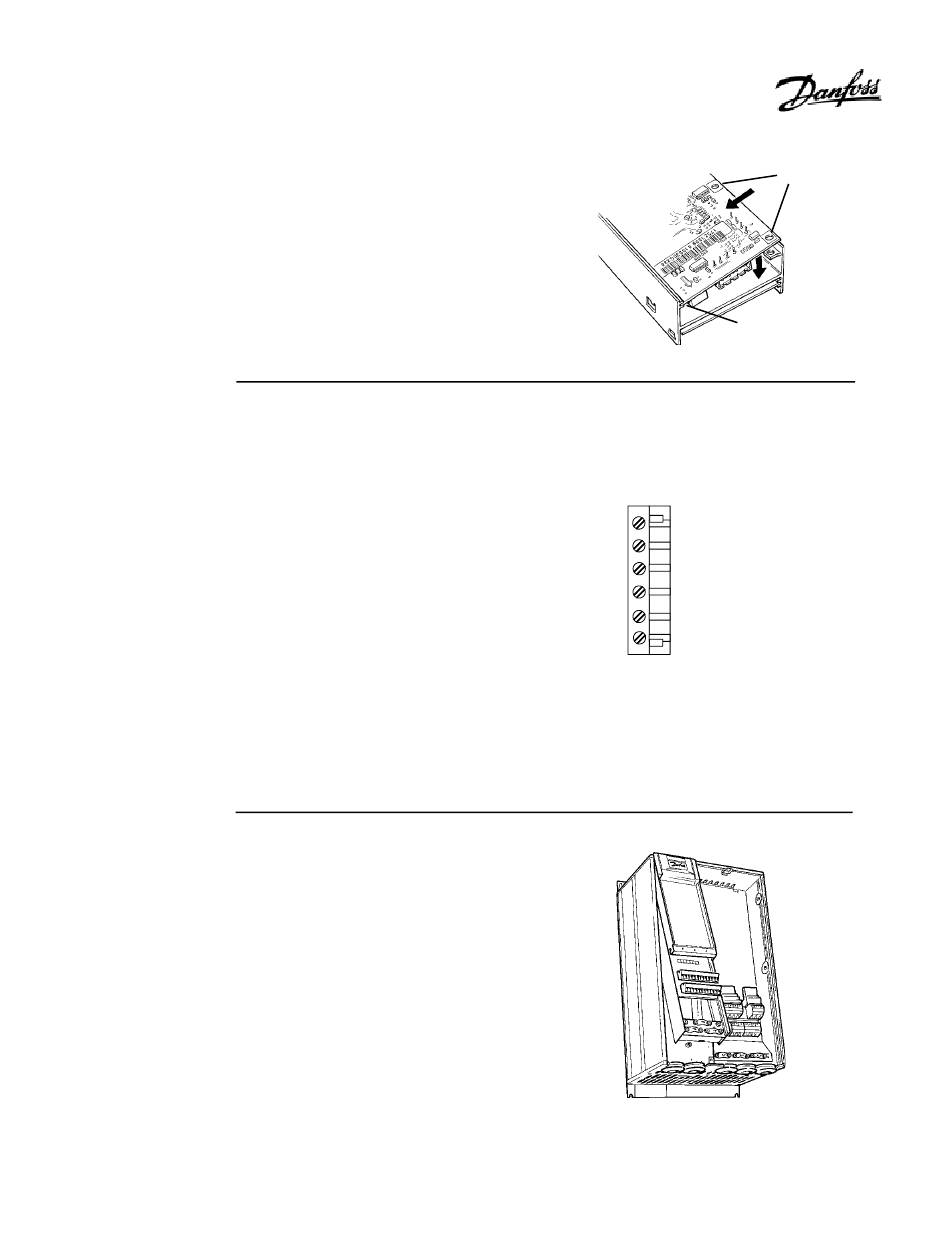

4. Secure • On back of cassette, insert edge of
Modbus RTU option card into slot at side
Modbus RTU
of cassette (A).
Option Card
• Secure opposite side of card with 2
self-tapping screws and washers provided
(B). Using a Torx T-10 screw driver, tighten
to 8 in-lbs.
5. Wire
Use 18 to 22 gauge wire. Torque
Modbus RTU
terminals to 4.5 in-lbs. Modbus
Option Card
interface connector terminals 5
Connector to
and 6 are spares.
VLT 6000
Terminals
• Wire Modbus interface connector (24 V
power) pin 1 to VLT 6000 terminal 12 or
13.
• Wire Modbus interface connector (RTxD)
pin 2 to VLT 6000 terminal 69.
• Wire Modbus interface connector (com)
pin 3 to VLT 6000 terminals 39 and 61.
• Wire Modbus interface connector
(RTxD') pin 4 to VLT 6000 terminal 68.
• Plug Modbus interface connector into
bottom of Modbus RTU option card.
6. Install
Ribbon
Ribbon cables must be recon-
Cables
nected to same connections
from which removed.
• Connect control card cassette to hinge
at top of drive.
• Connect ribbon cables.
