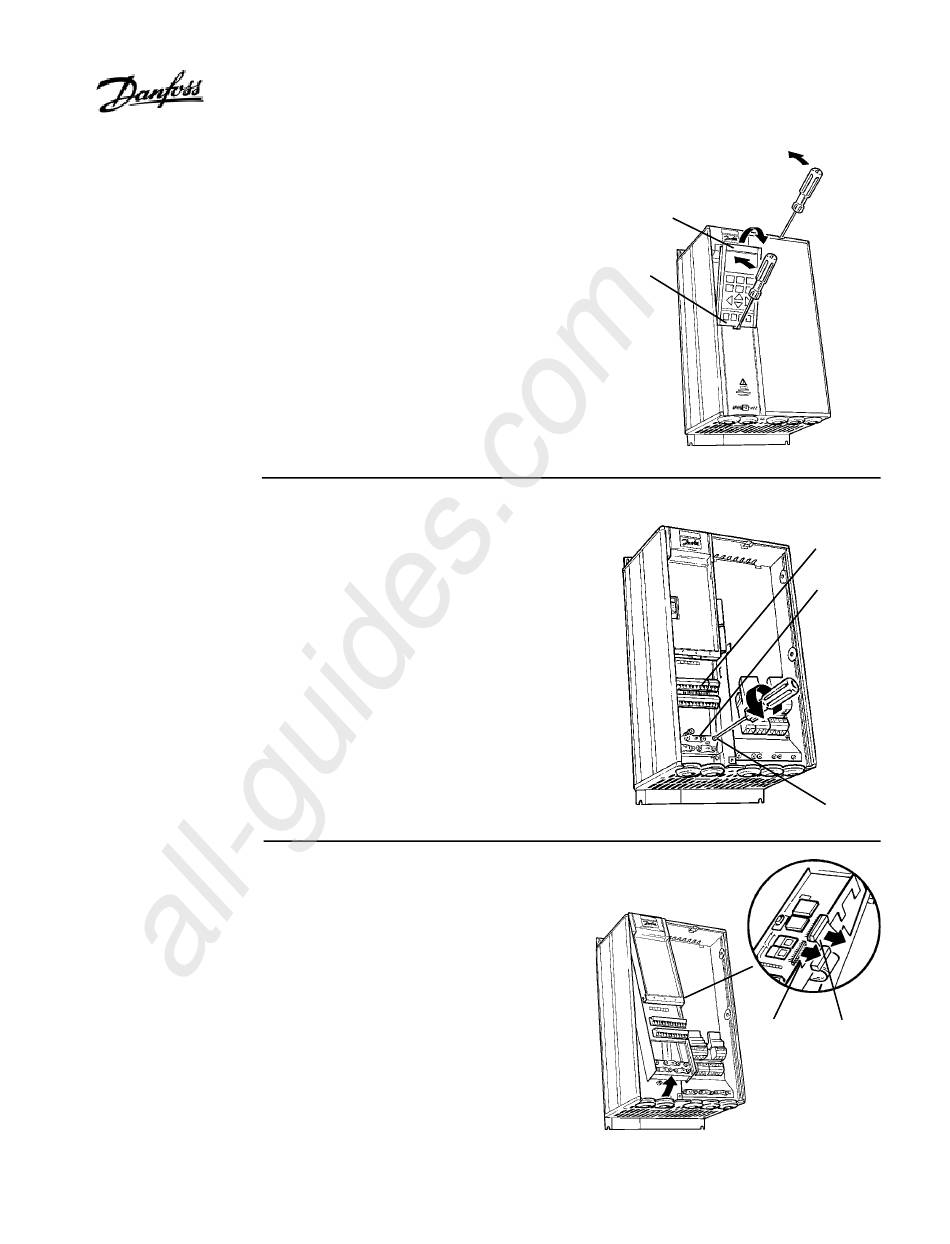

1. Access to
NEMA 1 Drives:
Control
• Remove Local Control Panel (LCP) by
Card
pulling out from top of display (A) by hand.
Cassette
LCP connector on panel back will
disconnect.
• Remove protective cover by gently prying
with a screw driver at notch (B) and lift
cover out of guide pin fittings.
NEMA 12 Drives:
• Open front panel of drive by loosening
captive screws and swing open.
• Disconnect Local Control Panel (LCP)
cable.
2. Disconnect
• Remove control wiring by unplugging
connector terminals (A).
Control Card
• Remove grounding clamps (B) by
Cassette
removing two screws holding each in
place. Save screws for reassembly.
• Loosen two captive screws (C) securing
cassette to chassis.
• Lift control card cassette from bottom.
3. Remove
• Unplug two ribbon cables (A) and (B) from
Cassette
VLT 6000 control board.
and Ribbon
• Unhinge cassette at top to remove.
Cables
Ribbon cables will need to be
reconnected to same connec-
tions from which removed.
10
All manuals and user guides at all-guides.com
NOTE
(A)
(B)
(A)
MG.10.P2.22 - VLT is a registered Danfoss trademark
(A)
(B)
(C)
(B)
