Summary of Contents for amaran 60x

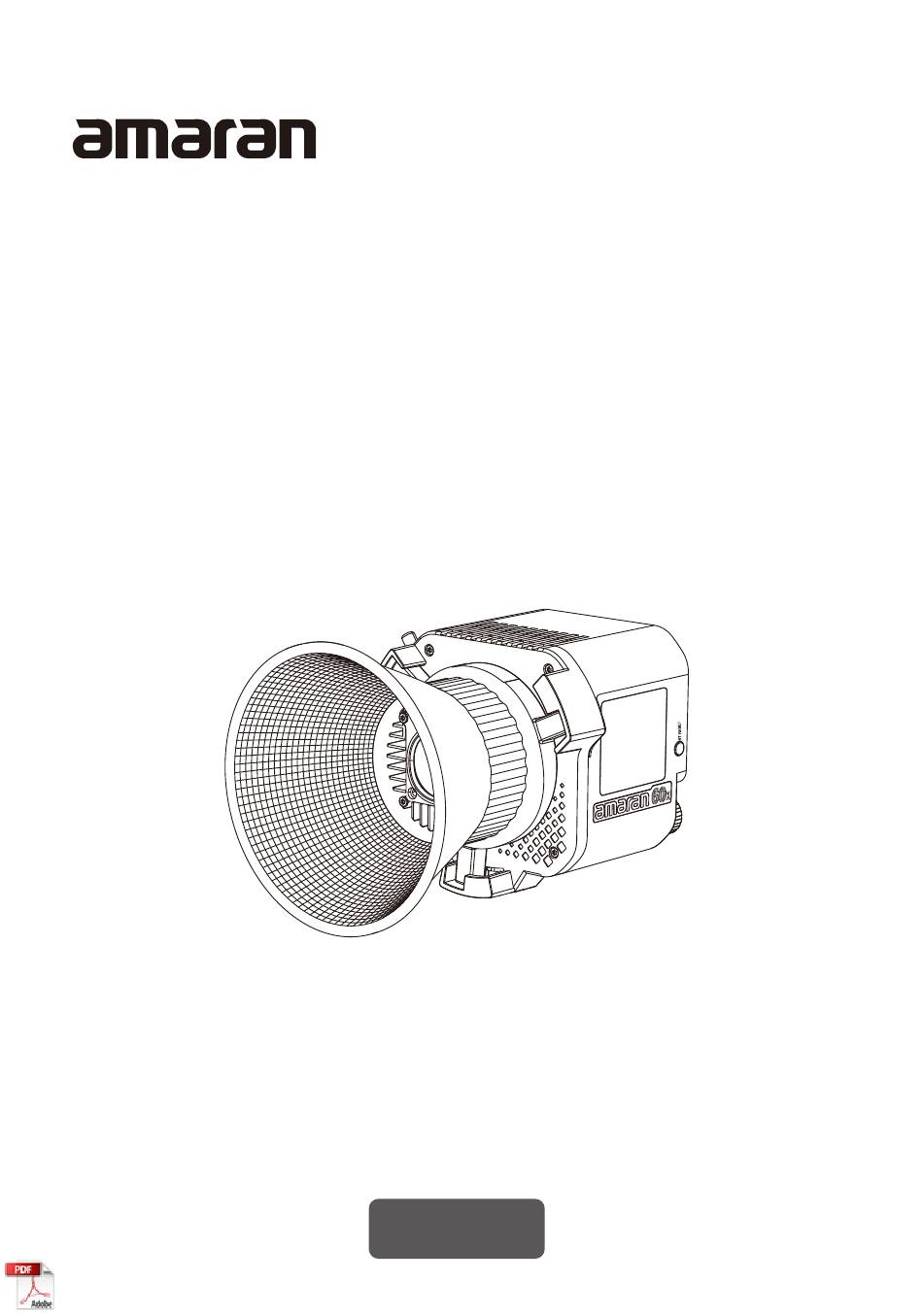

- Page 1 60x Product Manual English...
-
Page 2: Important Safety Instructions

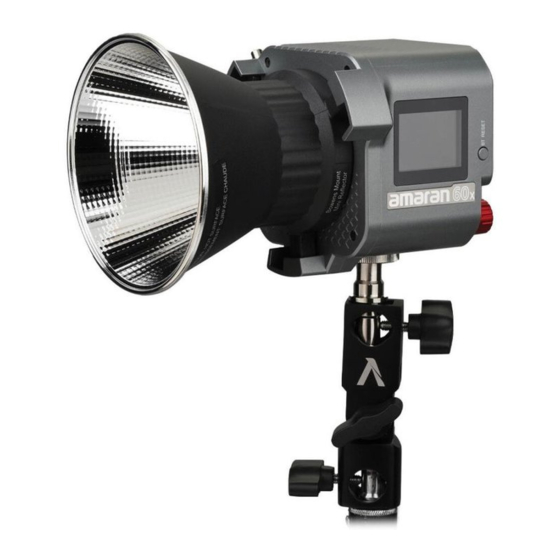

Thank you for purchasing "amaran" series of LED photography lights - amaran 60x. amaran 60x is amaran series of newly designed high cost performance lamps. Compact structure design, compact and light,excellent texture. Has a high performance level, such as high brightness, high indication, can adjust the brightness, etc. - Page 3 8. Let the lighting fixture cool completely before storing. 9. To reduce the risk of electric shock, do not immerse this fixture in water or any other liquids. 10. To reduce the risk of fire or electric shock, do not disassemble this fixture.
-
Page 4: Fcc Compliance Statement
21. This product is certified by RoHS, CE, KC, PSE, and FCC. Pleas operate the product in full compliance with the operation standards. Please note that this warranty does not apply to repairs arising from malfunctions, although you may request such repairs on a chargeable basis. - Page 5 Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a different circuit than the receiver is connected to. Consult the dealer or an experienced radio/TV technician for help. RF Warning Statement: This device has been evaluated to meet general RF exposure requirements. Check list When you unbox the product, please make sure all the items listed below are included.
-
Page 6: Product Details
Product Details 1. Light Bowens Mount Release Latch Bowens Mount COB LED Bowens Mount Mini Reflector Display Seat button Power switch button DC-in connector Adjusting knob... -
Page 7: Installations
Installations 1. Attaching/detaching the protection cover Push the handle of the lever in the direction of the arrow shown in the picture, and rotate the cover to pull it out.Reverse rotation will put the protective cover into. * Notice: Always remove the protection cover prior to turning on the light. Always re-install the cover when packing it away. - Page 8 4. Soft light umbrella installation Insert the soft light handle into the hole and lock the lock knob on the hole. 5.Battery handle installation Tighten the lamp body and the battery handle via 1/4 screw, then attach the battery plate or V-mount battery to the handle with the V-mount lock.
-
Page 9: The Power Supply
The power supply Powered by AC AC 100V-240V * Please press the spring-loaded lock button on the power cord to remove the power cord. Do not pull it out forcibly. Powered by DC *The batteries are not included. Please press the spring-loaded lock button on the battery plate to remove the power cord. -
Page 10: Manual Control
Operations 1. Press the power button to turn the light on and off 2. Manual control Press the knob for 1.5 second to switch the function between INT/CCT adjustment. Brightness adjustment: a. Rotate the INT adjusting knob to adjust the brightness with 1% variable, and the brightness change range is (0-100) %, and display the change of (0-100) % in real time on the LIGHT body OLED display. - Page 11 3. Wireless mode adjustment The user can connect the light body named amaran 60x-xxxxxx through the bluetooth of the mobile phone or tablet (Bluetooth serial number). At this time, the light body can be controlled wirelessly through the mobile phone or tablet. When the light effect is controlled by APP, the word "FX"...
- Page 12 4.3 The LCD will display [Success] 2 seconds after the Bluetooth reset is successful. 4.4 If the Bluetooth reset is unsuccessful, the LCD will display [Failed] and disappear after 2 seconds. 4.5 After resetting the light's Bluetooth connection, your mobile phone or tablet will be able to connect to and control the light.
-
Page 13: Specifications
6. Using the Sidus Link APP You can download the Sidus Link App from the iOS App Store or Google Play Store for enhancing the functionality of the light. Please visit sidus.link/app/help for more details regarding how to use the app to control your Aputure lights. Get Sidus Link Sidus.link/app/help Specifications... - Page 14 Photometrics 0.5m Distance Illumination 2700K Bare Bulb 7990lux/742fc 2155lux/200fc 245lux/22fc 98lux/9fc Hyper-Reflector 103100lux/9578fc 30800lux/2861fc 3100lux/288fc 850lux/79fc Bare Bulb 7950lux/738fc 2126lux/197fc 243lux/23fc 98lux/9.1fc 3200K Hyper-Reflector 30950lux/2875fc 3132lux/291fc 856lux/80fc 103500lux/9615fc 8347lux/775fc Bare Bulb 2241lux/208fc 256lux/24fc 103lux/10fc 4300K 33250lux/3089fc 110925lux/10304fc 3367lux/313fc 1177lux/109fc Hyper-Reflector Bare Bulb 8830lux/820fc 2374lux/221fc...
- Page 15 Light Dome Mini II Aputure Lantern. The load-bearing capacity of amaran 60x Bowens Mount is limited (maximum load≤ 2.5kg). Do not use heavy-duty modifiers. Please note that our warranty for this product does not apply to any repairs required due to any malfunctions of unauthorized accessories, although you may request such repairs for a fee.
