Summary of Contents for amaran F21c

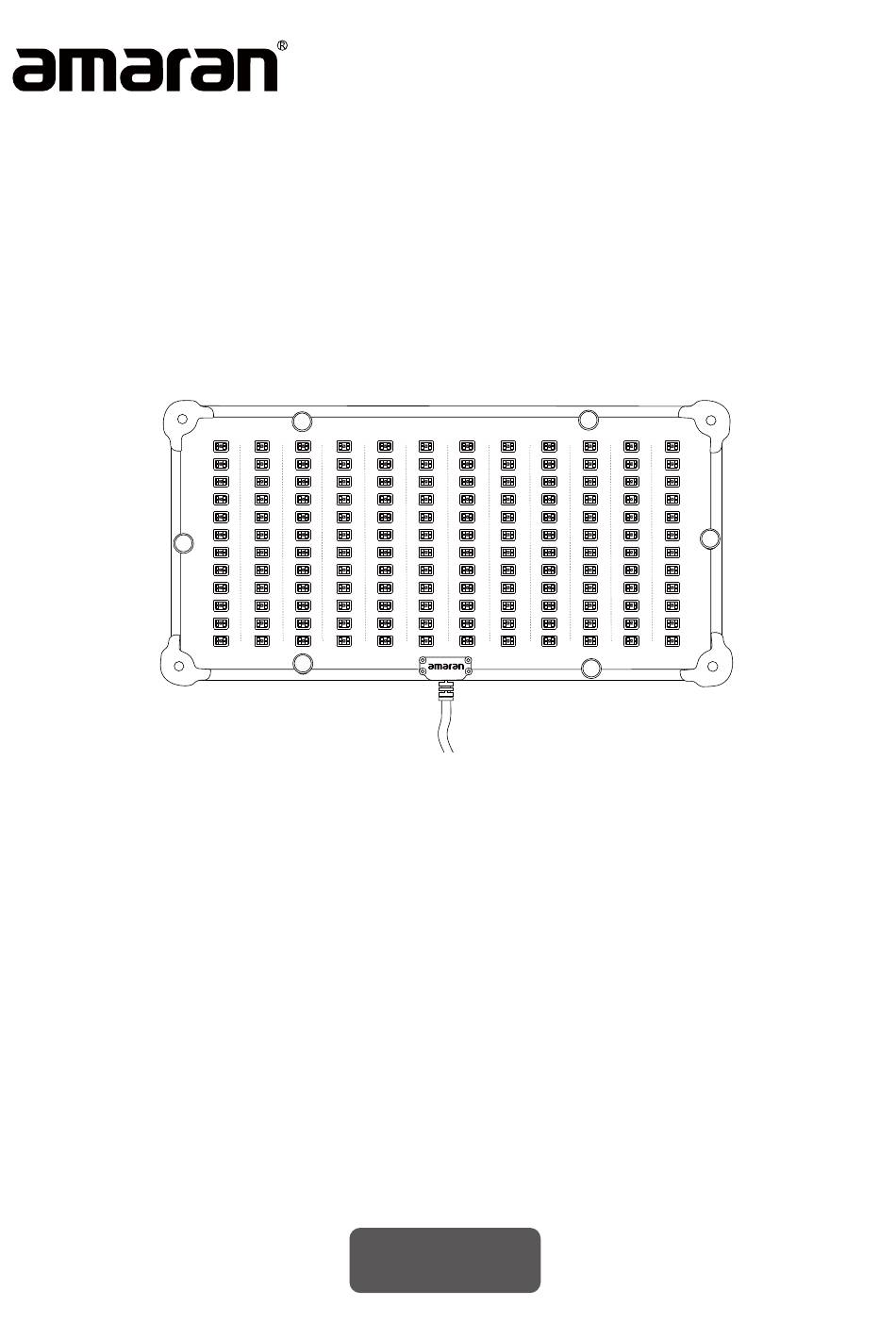

  • Page 1 F21c Product Manual English...

  • Page 2: Important Safety Instructions

    Thank you for purchasing "amaran" LED photography lights - amaran F21c. Amaran F21c is amaran newly designed cost performance light fixture. Compact structure design, compact and light, excellent texture. Has a high performance level, such as high brightness, high color render- ing index, can adjust the brightness, etc.
  • Page 3 8. Let the lighting fixture cool completely before storing. Unplug the power cable from lighting fixture before storing and store the cable at assigned space of thecarrying case. 9. To reduce the risk of electric shock, do not immerse this fixture in water or any other liquids.

  • Page 4: Fcc Compliance Statement

    19. This product is certified by RoHS, CE, KC, PSE, and FCC. Please operate the product in full compliance with relevant country's standards. Any malfunctions caused by incorrect use are not covered by warranty. The user may pay for maintenance. 20.

  • Page 5: Components List

    Please make sure all accessories listed below are completed before using. If not, please contact with your sellers immediately. LIGHT MODE MENU F21c (1 pc) Control Box (1 pc) Frame (1 pc) Tie Down (1 pc) Power Adapter (1 pc)
  • Page 6 Components List 1. Lamp Head Frame Mounting Corner Mounting Hole LED Lamp Beads Cable Frame Mounting Corner Velcro...
  • Page 7 2. Control Box DC Output ON/OFF Protective column OLED Screen PRESET LIGHT MODE CCT/HUE LIGHT MODE MENU MENU G/M/SAT Quick-Release Plate DMX / Firmware Lanyard upgrade Port Battery Plate 1/4 Screw DC Output DC IN...
  • Page 8 Setting Up the Light 1. Disassembly and assembly of X-type frame. After pulling out the bolts in the direction shown in the picture, unfold the four support rods, and then loosen the fixing bolts to lock the support rods. Front of the frame Back of the frame 2.Disassembly and assembly of the lamp body and X-shaped bracket.
  • Page 9 3.Installation of soft box. The side of the soft box with grooves corresponds to the side of the lamp body with the power cord. Then attach the velcro of the lamp body and the soft box in turn and then install the fabric diffusion and grid. * Light stand is not standard.
  • Page 10 Powering up the Light Powered by AC Lanyard DC Output AC 100V-240V Power Adapter For V-Mount DC IN For Anton Bauer...
  • Page 11 Powered by DC Lanyard DC Output V-Mount Battery Battery Anton Bauer Battery -10-...
  • Page 12 How to use the extension cord AC 100V-240V *The battery is not standard. *When removing the wire, because of self-locking device at the wire connection, please press or rotate the spring lock on the connector before pulling it out. Do not pull it out forcibly. *Extension cable, control box and lamp body need to correspond, and different models cannot be mixed.
  • Page 13 2.1 Press the Light Mode button to enter the interface 2.2.1 Press the INT knob, select CCT mode to adjust color temperature (2500K~7500K)， brightness (0%~100%) and G/M(-1.0~+1.0) 2.2.2 Press the INT knob and select the HSI mode to adjust the hue, saturation and brightness.
  • Page 14 2.2.4 Press the INT knob, after selecting the CFX mode, Rotate the INT knob to select the Picker FX, Music FX, and TouchBar FX. 2.2.5 Press the INT knob to select GEL mode, rotate the INT knob to adjust the brightness, rotate the CCT/HUE knob to select 3200K/5600K, rotate G/M/SAT knob to select GEL.
  • Page 15 2.3.2 Frequency Selection Press the INT knob to enter the Frequency Selection, Rotate the INT knob to select the frequency (+0~2000Hz). 2.3.3 Dimming Curve Press the INT knob to enter the dimming curve menu, rotate the INT knob to select “Exp;...
  • Page 16 2.3.6 Studio Mode Rotate the INT knob to select the studio mode, press the INT knob to enter the studio mode interface, rotate the INT knob to select "Yes" or "No", and then short press the INT knob to confirm. 2.3.7 Language Rotate the INT knob to select the language menu, press the INT knob to enter the language setting interface, rotate the INT knob to select "English"...
  • Page 17 2.3.10 Factory Reset Rotate the INT knob to select Factory Reset, press the INT knob to enter the Factory Reset interface, rotate the INT knob to select "Yes" or "No", and then press the INT knob to confirm. 2.4 Fixture Presets There are 4 preset buttons located on the bottom row of the control box.
  • Page 18 3.2 Connect a standard DMX controller OUTPUT DMX512 Connecting DMX to only one light OUTPUT DMX512 Daisy chaining multiple lights using DMX 3.3 The DMX interface schematic: Data 1+ Data 1+ (Primary Data Link) (Primary Data Link) Data 2- (Optional Data 1- Data 1- Secondary Data Link)
  • Page 19 4. Using the Sidus Link APP You can download the Sidus Link app from the iOS App Store or Google Play Store for enhancing the functionality of the light. Please visit sidus.link/app/help for more details regarding how to use the app to control your Aputure lights. Get Sidus Link Sidus.link/app/help 5.
  • Page 20 Photometrics Distance (m) 0.5m Illuminance (lux) Bare Bulb 9660 2770 2500K Softbox (1/2 stop) 5620 1680 Bare Bulb 9860 2890 3200K Softbox (1/2 stop) 5870 1754 10420 3060 Bare Bulb 4300K Softbox (1/2 stop) 6250 1860 11420 3360 Bare Bulb 5600K Softbox (1/2 stop) 2048...
