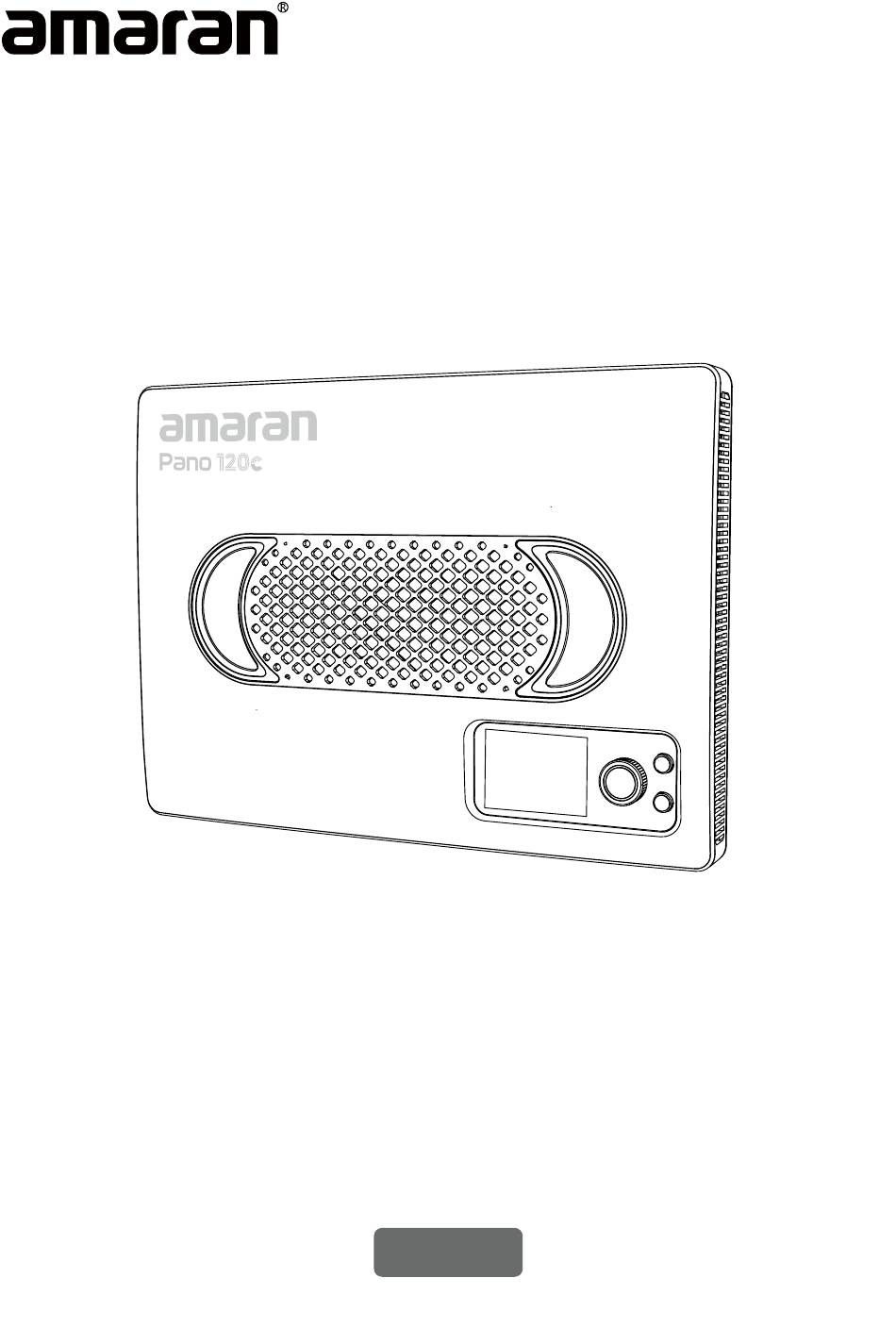

- Page 1 Pano 120c Product Manual English...
-
Page 2: Table Of Contents
8.7. Language ............................14 8.8. Fan Mode ............................14 8.9. Studio Mode ...........................15 8.10 Expanded CCT ..........................15 9. Firmware updates..........................16 Using the amaran App ............................... 16 Specifications .................................17 Photometrics .................................. 18 Safety Instructions ..............................20 FCC Declaration of Conformity ..........................21 Disclaimer ..................................22... -
Page 3: Introduction
Introduction Thank you for purchasing the amaran Pano 120c. Designed for both mobile shoots and studio setups, the amaran Pano 120c is a compact, 120W full-color panel light combining ultra-high brightness with exceptional portability in a size comparable to a laptop. Its slim and lightweight design makes it perfect for outdoor... -
Page 4: Components List
Components List Please make sure all accessories listed below are complete before using. If not, please contact your sellers immediately. amaran Pano 120c (Base Version) amaran amaran Ace Lock to amaran Pano 120c amaran USB-C Locking Pano 120c ×1 Light Stand Adapter ×1 Diffuser ×1... -
Page 5: Product Overview
Fan Vent Helps the light dissipate heat. Please do not block the fan vent when using the light. Install and disassemble the light in less than a second with the amaran Ace Lock amaran Ace E-Lock ecosystem. The light can also be powered by the amaran Peak power bank accessory. -
Page 6: Operations
If a power supply below 140W of power output is used, the brightness of the lamp will be reduced or may be unable to light up. Power Supply Method 3: Supply power to the light via the amaran Peak portable power supply. The battery handle features amaran Ace E-Lock Contact Pins, and will power the light on when mounted via the amaran Ace E-Lock Quick-Release Mount. -
Page 7: Power On/Off
3. Light Installation 1. Installing the amaran Ace Lock Adapter: Align the contact pins on the mounting bracket to the light's amaran Ace Lock quick release mount. Press the blue release key and push towards the bottom of the light. The mounting bracket is securely attached to the light when the pins are embedded into the amaran Ace lock mount and when you hear a clicking noise. - Page 8 2. Installing Onto A Light Stand: With the mounting bracket installed onto the light, place the end of the mounting bracket onto the light stand and turn the locking knob to secure into place. Adjust the angle of the light and turn the tilting bracket knob to secure into place. 3.
-
Page 9: Softbox Installation
4. Softbox Installation 1. Unfold the softbox and place the diffusion cloth side downwards onto a flat surface. 2. To install the softbox onto the light, place the light with the light-emitting surface side downwards onto the frame of the softbox. Pull the handles on the sides of the softbox to ensure that the softbox is fully unfolded and that the light is firmly installed into the softbox frame. -
Page 10: Diffuser Installation
2. To install the barn doors onto the light, place the wire clasp into the light's heat dissipation hole. Repeat to place on the other side to securely install the barn doors. Ensure the installation is secure to prevent it from vibrating loose *The amaran Pano 120c Barn Doors are sold separately. -
Page 11: Main Menu
8. Main Menu Rotate and press the knob to select light modes and settings. 8.1. CCT Rotate and press the knob to enter CCT mode from the main menu. In CCT mode, press the knob to select INT or CCT and rotate the dial to adjust the corresponding value. 5600K... -
Page 12: Hsi
1. INT (Intensity): Adjust your light's brightness from 0%-100%. 2. CCT (Correlated Color Temperature): Adjust your light's color temperature from warm white (2,300K CCT) to cool white (10,000K CCT). 3. G/M (Green-Magenta): Adjust the green-megenta shift in ±10 increments. 4. After 3 minutes of inactivity while the light is in CCT Mode, it will automatically switch to "Quick Operation Mode". -
Page 13: Bluetooth Reset
1. INT (Intensity): Adjust your light's brightness from 0%-100%. 2. Red: Adjust your light's Red value from 0%-100%. 3. Green: Adjust your light's Green value from 0%-100%. 4. Blue: Adjust your light's Blue value from 0%-100%. 8.4. FX Rotate and press the knob to enter FX mode from the main menu. In FX. rotate and press the knob to select your lighting effect. -
Page 14: Custom Mode
8.6. Custom Mode Rotate and press the knob to enter Custom mode from the main menu. In Custom mode, press the knob to select customizable shortcuts for long press (Hold) or double click (Double) of the Return button. Rotate the dial to select between None/CCT/Rotation/HSI/ BT Reset shorcut functions. -
Page 15: Studio Mode
Silent Mode: The fan will be completely turned off, and the light will not produce any noise. The power output will be limited to 25W. Smart Mode: The fan speed will automatically adjust according to the temperature of the light. 8.9. -
Page 16: Firmware Updates
Firmware updates can be updated online via the amaran app or Sidus Link. Using the amaran App You can download the amaran mobile app from the iOS App Store, Google Play Store, and other platforms for enhancing the functionality of the light. You can download the amaran desktop app for Mac and Windows from the amaran website. -
Page 17: Specifications
45° Color Chipset RGBWW (No Accessory) -20℃ - 80℃ Operating Storage -4 ℉ - 176 ℉ -10℃ -40℃ Temperature Temperature On-board, amaran Firmware amaran App, Control Methods Upgradeable App, Sidus Link Sidus Link Wireless Operating ≤80m Screen Type Range (Bluetooth) ≤262.5ft... -
Page 18: Photometrics
Photometrics Distance No Accessories Softbox Light Control Grid Diffuser 10,880 lux 2,950 lux 2,335 lux 2,700 lux 1,011 fc 274 fc 217 fc 251 fc 2,300K 1,310 lux 312 lux 284 lux 303 lux 122 fc 29 fc 26 fc 28 fc 1,1870 lux 3,240 lux... - Page 19 Photometrics Distance No Accessories Softbox Light Control Grid Diffuser 12,920 lux 3,530 lux 2,770 lux 3,130 lux 1,200 fc 328 fc 257 fc 291 fc 10,000K 1,570 lux 380 lux 337 lux 359 lux 146 fc 35 fc 31 fc 33 fc 4,020 lux 1,022 lux...
-
Page 20: Safety Instructions
Safety Instructions When using the amaran Pano 120c, basic safety precautions should always be followed, including the following: 1. Read and understand all instructions before using. 2. Please have the product checked by an authorized service personnel agent if the product has a problem. -
Page 21: Fcc Declaration Of Conformity
FCC Declaration of Conformity WARNING Changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 22: Disclaimer
Users assume responsibility for their own conduct and any resulting consequences. amaran is not liable for any damages suffered as a result of the user’s failure to use the product in accordance with product manual.
