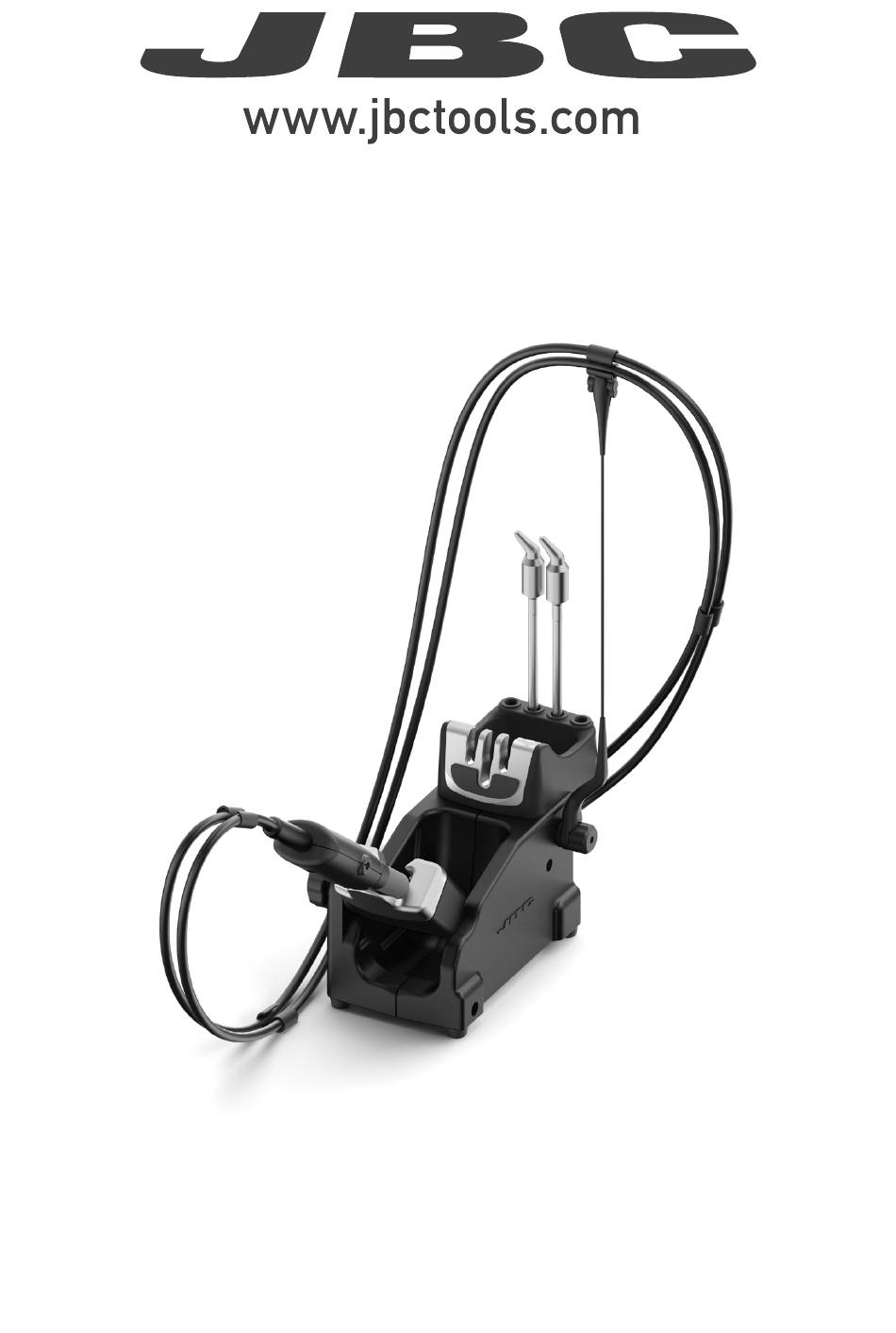

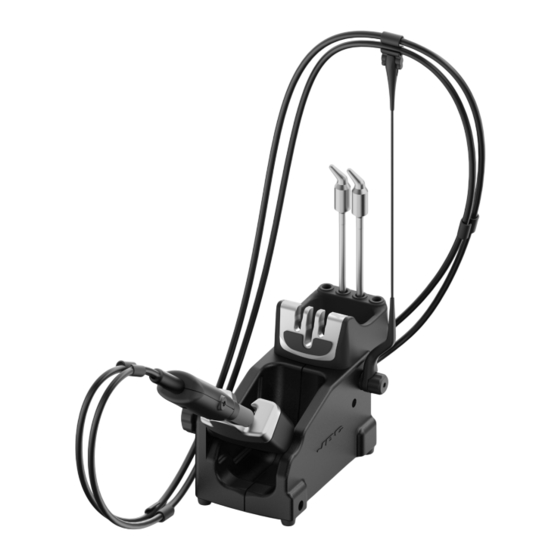

- Page 1 INSTRUCTION MANUAL HDTS Stand for HT470 Heavy Duty Thermal Tweezers...
- Page 2 This manual corresponds to the following reference: HDT-SF Packing List The following items are included: Stand for HT470 Heavy Duty Thermal Tweezers ................1 unit Stand Cable 1m ......... 2 unit Manual ............1 unit Ref. 0024227 Ref. 0027314...
- Page 3 80 mm Quick Tip Changer 60 mm 50 mm Ajustable Tool Holder 40 mm *HDTS requires two heavy duty control units (HDU) to manage the HT470. To HD470 Heavy Duty Tweezers To HDU Control Unit 1* To HDU Control Unit 2*...
- Page 4 Assembly Cable Collector and Adjustable Tool Holder Insert the cable into the cable The cable collector is flexible. collector clip. Do not leave the It accompanies and adapts cable longer than necessary to the movements during the to reach the work area freely. soldering process.
- Page 5 para manuales - color gris 200 mm Changing Cartridges 130 mm 130 mm For a safe cartridge exchange, unplug the tool or turn the station off. 1. Unlocking 2. Removing 100 mm srews 80 mm 60 mm Unlock the cartidge fixing screws. Place the cartridges in the quick tip changer and pull the tweezers to remove the cartridges.
- Page 6 - Periodically check all cables and tube connections. - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
- Page 7 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. 80 mm - The power cord must be plugged into approved bases.
- Page 8 13.46 x 6.10 x 4.72 in / 4.35 lb Complies with CE standards ESD safe Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
