Please note:
Use only the supplied cable
glands. One of the cable
glands has an EMC shield
connection.
A:
Cable gland with EMC
shield connection
B:
Cable gland
without EMC shield
connection
C: Cable protective pipe
1. Assemble the cable
glands (A+B) on the
section/curve modules.
2. Push the cable
protective pipe (C)
into the cable glands
between the section
modules/curve modules.
3. Tighten the cable glands.
7.6.1

Assembling the EMC cable glands and cable guard pipe

1
A

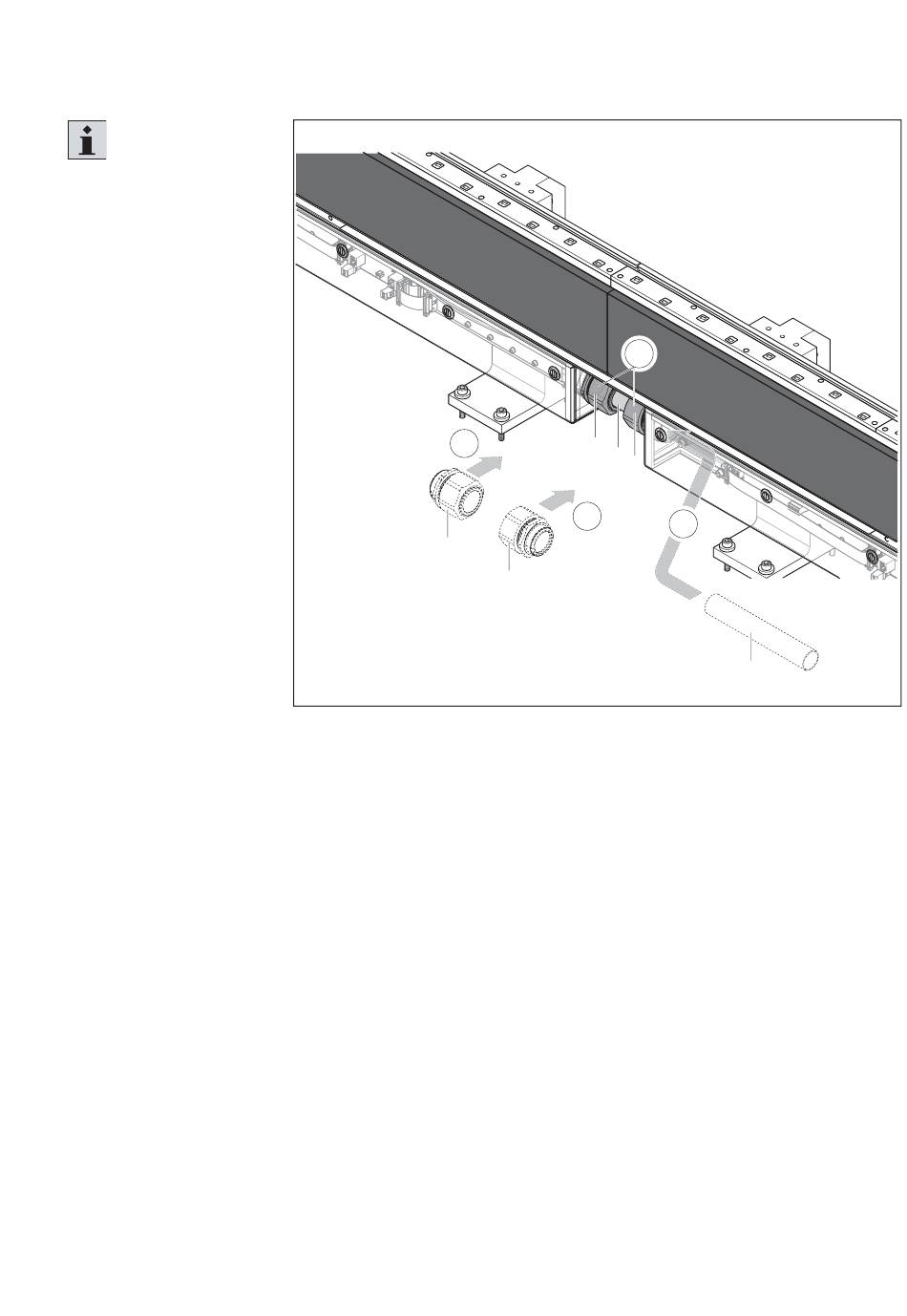

Fig. 65: Assembling the EMC cable glands and cable guard pipe
3
A
C
B
1
B
3 842 564 874/2021-04, MIT: ActiveMover, Bosch Rexroth AG
Installation
2
C
