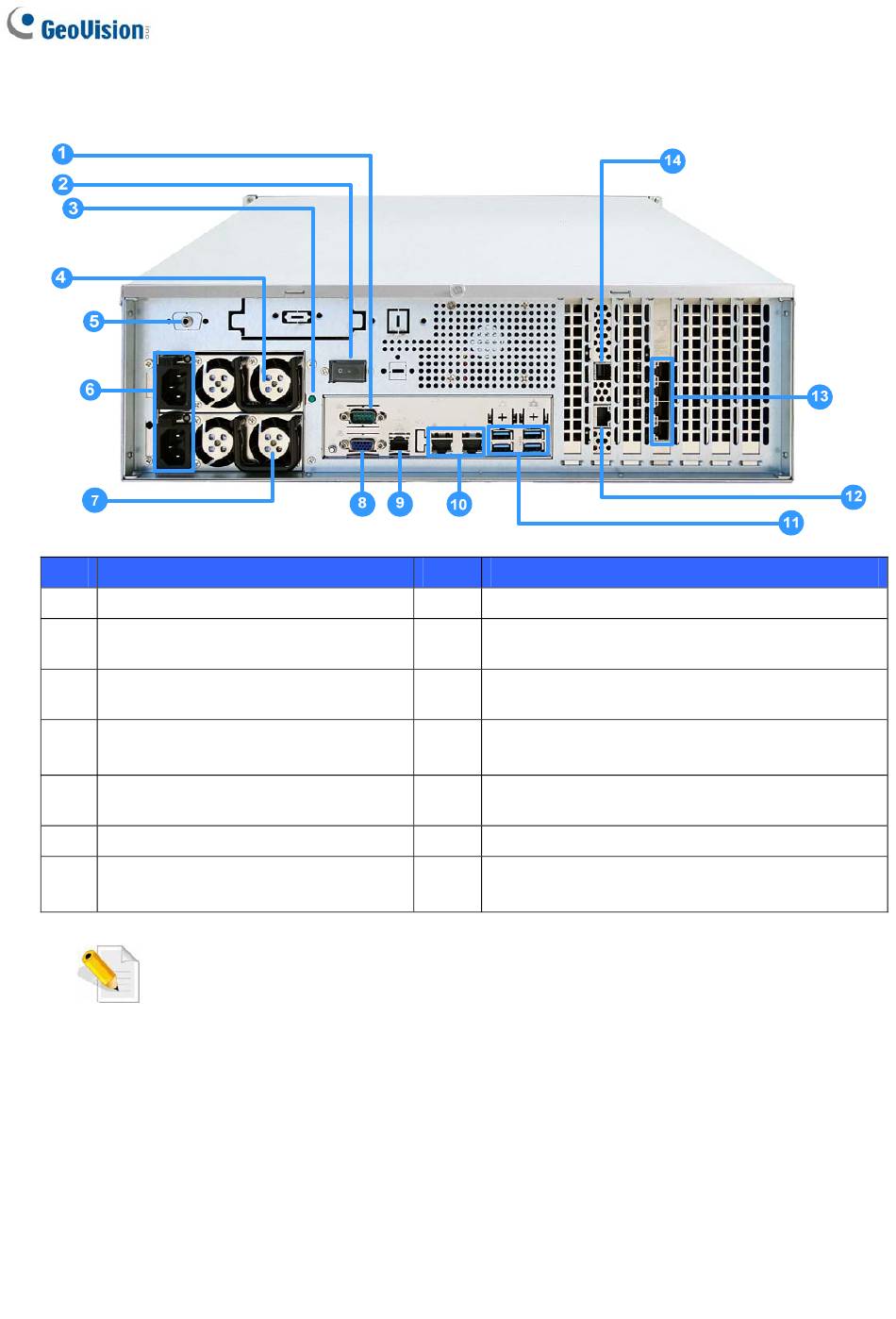

2.3.3 Rear View

No. Description
1 COM1 Serial Port
2 Power On/Off Switch
3 Mute
PSU-A Port
4
Power Supply A
5 RS232 Port (Phone Jack) for UPS
6 AC Power Input Socket
PSU-B
7
Power Supply B
IMPORTANT: To configure the system for the first time, connect an Ethernet
cable to LAN0 which has a default IP address of 192.168.0.199.
14
No. Description
8 VGA Port
IPMI LAN Port (Management port for
9
motherboard IPMI)
10 Gigabit Ethernet Port x 2 (Right: LAN0, Left:
10
LAN1)
11 USB 3.0 Port x 4
Ethernet RJ-45 Port (Management port for RAID
12
card)
13 1 Gigabit Ethernet Port x 4 (lan0, lan1, lan2, lan3)
14 Mini SAS HD Port
