1.5 Front View & Rear View

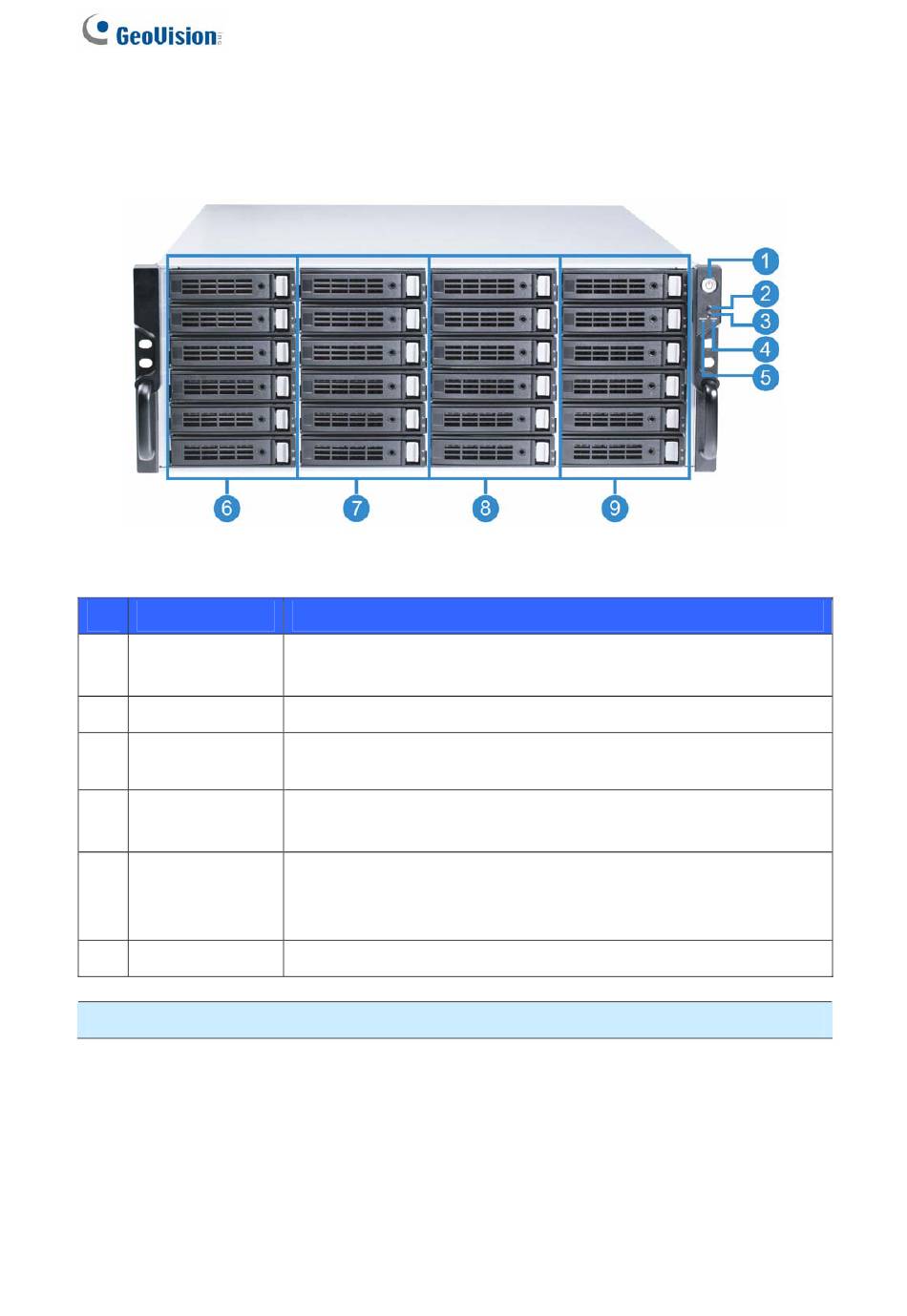

Front View
No. Name
1 Power Button
and Power LED
2 Mute Button
3 IP Reset Button
4 Status LED:
5 Access LED
6~9 HDD Groups
Note: IP Reset button is not available in GV-Expansion System.
Figure 2-1
Description
Blue: Power ON.
Off: Power OFF.
Press to mute the alarm.
Reset the IP address of the management port to default settings:
192.168.0.199.
Red: System failure.
Off: System OK.
This indicates host connectivity, not the hard drive activity.
Blink: There is host activity (data I/O or management).
OFF: There is no host activity.
HDD Groups A, B, C, D
