Whelen Engineering Company WSXPL60 Series Assembly

Model WSXPL60x*, EXPLOSION PROOF SPEAKER ASSEMBLY
GENERAL-
Whelen Model
explosion proof 60 watt speaker assembly
intended for use in indoor personnel warning
applications, where high sound level output is
required.
The speaker flare
fiberglass, with a spun aluminum re-entrant
section. A speaker driver, housed in an
explosion proof housing, is assembled to the
speaker. A heavy duty, painted steel mounting
bracket allows the installer to position the
speaker in a number of different ways.

INSTALLATION-

Determine the location of the speaker.
Mount to a rigid structure, using the supplied
mounting bracket. The bracket dimensions are
shown in the detail drawing. Position the speaker
as required. Do not position the speaker pointing
upward, if there is a possibility of filling with
water.
Speaker connections are made by
carefully removing the back cover of the driver
housing. Connect one of the siren audio speaker
wires to one driver wire. Connect the second
speaker audio wire to the other driver wire.
All manuals and user guides at all-guides.com

PRODUCT DESCRIPTION

Part # 01C1461898-0x*
Doc. # 04-0113175-01
WSXPL60x* is an
is made from
PIONEERS IN WARNING SIGNALS
ENGINEERING COMPANY
Route 145, Winthrop Rd., Chester, CT 06412-0684
Tel.: (800) 63 SIREN
Prior to re-assembly, make certain that
the machined surfaces of the housing are clean.
Do not use any type of gasket or sealing
compound. Tighten all housing bolts completely.
2.0"
1.53" x .53" SLOT .53" DIA

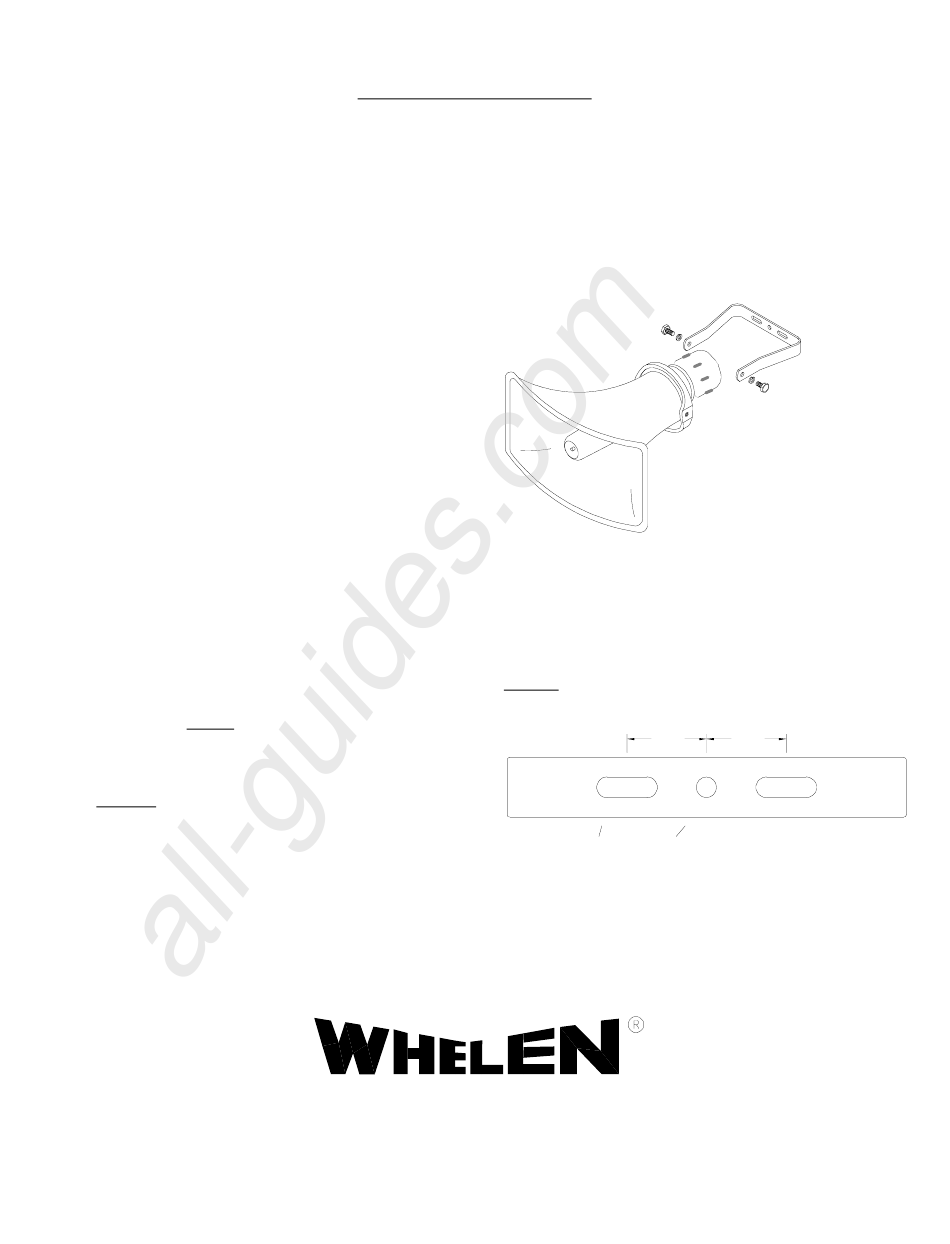

Mounting Bracket Detail
2.0"
