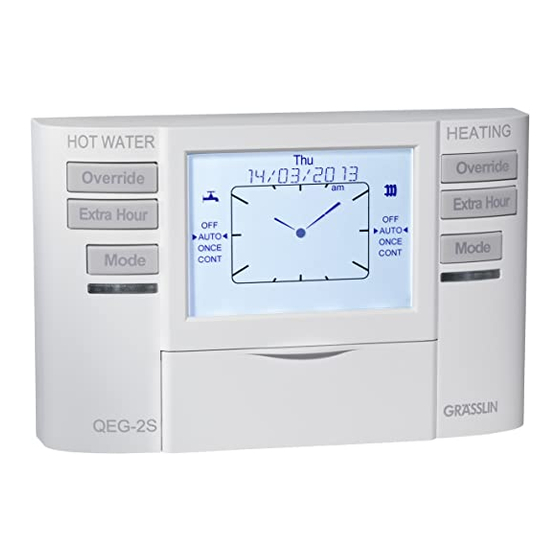

QEG-2
QEG-2S
EN

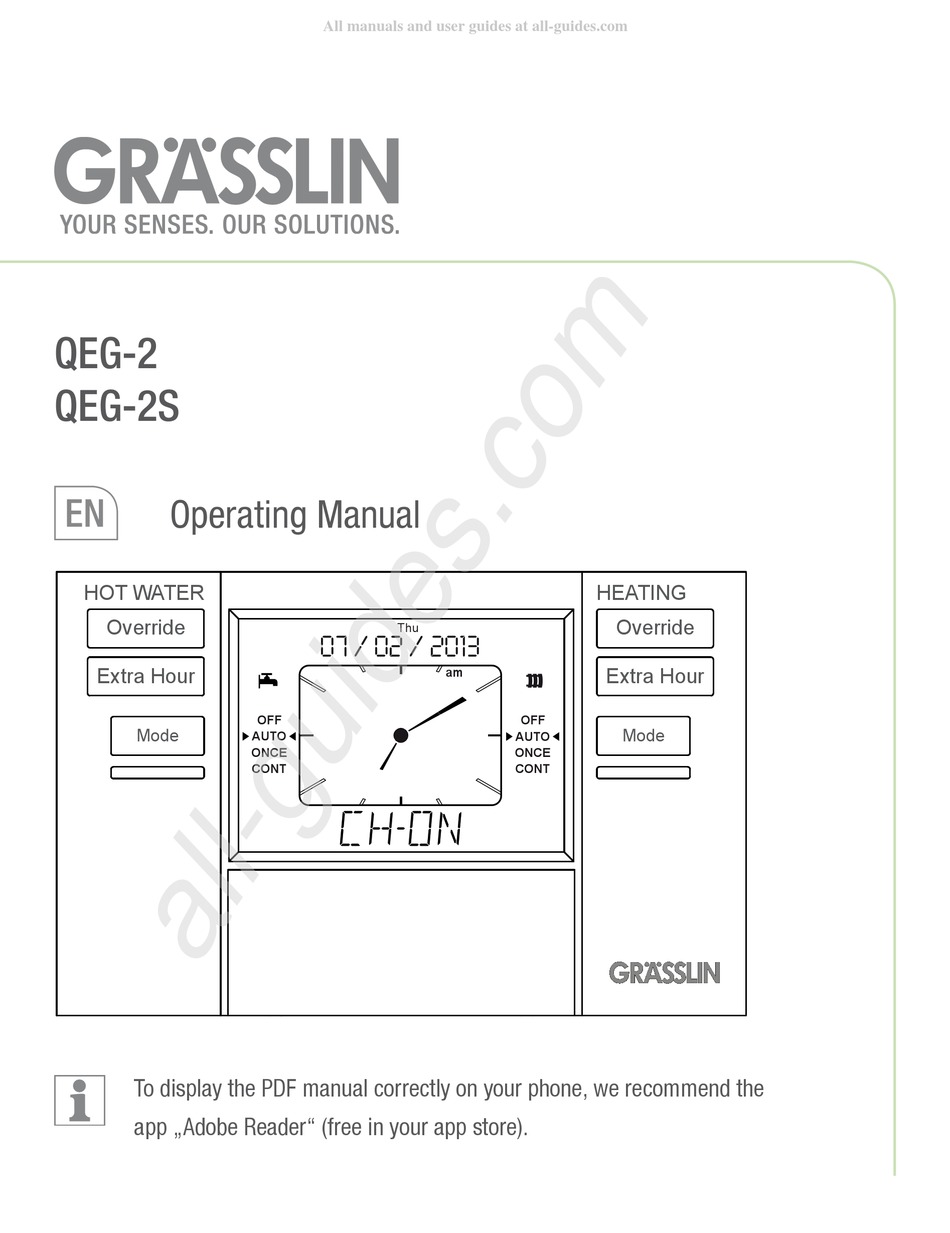

Operating Manual
HOT WATER
Override
Extra Hour
Mode
To display the PDF manual correctly on your phone, we recommend the
app „Adobe Reader" (free in your app store).
All manuals and user guides at all-guides.com
Thu
07 / 02 / 2013
OFF
AUTO
ONCE
CONT
EXT HOUR
ON1
+1
+2
+3
Holidays
DAY/
TIME
OK
HEATING
Override
Extra Hour
am
OFF
Mode
AUTO
ONCE
CONT
EXT HOUR
ON1
+1
+2
+3
DHW
CH
RUN
Select
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Grasslin QEG-2
Summary of Contents for Grasslin QEG-2
- Page 1 All manuals and user guides at all-guides.com QEG-2 QEG-2S Operating Manual HOT WATER HEATING Override Override 07 / 02 / 2013 Extra Hour Extra Hour Mode Mode AUTO AUTO ONCE ONCE CONT CONT EXT HOUR EXT HOUR Holidays DAY/ TIME...
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com Table of Contents Safety Instructions Information about the device Installation and mounting Operation and configuration Disposal / Recycling Comments on text passages (footnotes): = Function not available for all products. -
Page 3: Safety Instructions
All manuals and user guides at all-guides.com Safety instructions Danger! Risk of electric shock! Installation must be carried out by a WARNING professional electrician! • To avoid injuries, the device must be installed by a skilled electrician only! • Before changing the battery, the device must be disconnected from the power supply! •... -
Page 4: Information About The Device
All manuals and user guides at all-guides.com Information about the device What is a programmer? ...an Explanation for Householders (as recommended by the Energy Savings Trust) Programmers allow you to set ‘ON’ and ‘OFF’ time periods. Some models switch the central heating and domestic hot water on and off at the same time, while others allow the domestic hot water and heating to come on and go off at different times. -
Page 5: Installation And Mounting
All manuals and user guides at all-guides.com Installation and mounting Danger! Risk of electric shock! Installation must be carried out by a WARNING professional electrician! General information 1.5 m Open/Close housing, Wall mounting Wiring diagram N L 1 2 3 4 230 V / 50-60 Hz... -
Page 6: Operation And Configuration
All manuals and user guides at all-guides.com Operation and configuration Display / Function keys Commissioning Set date and time Change AM/PM time display to 24 hour clock Running a built-in programme (default programmes) Domestic hot water systems Review/Edit central heating (CH) program Review/Edit domestic hot water (DHW) program Operating modes Installers menu... - Page 7 All manuals and user guides at all-guides.com Display / Function keys HOT WATER HEATING Override Override 07 / 02 / 2013 Extra Hour Extra Hour Mode Mode AUTO AUTO ONCE ONCE CONT CONT EXT HOUR EXT HOUR Holidays DAY/ TIME Select Date of the week indicator Information text line...
- Page 8 All manuals and user guides at all-guides.com Commissioning If you start running the programmer the first time, you have to set programming type, date and time. PROG TYPE MONTH YEAR HOUR MINUTE DONE Connect the programmer to power. Productname and version number are displayed briefly. The preset PROGRAMMING TYPE and OK are flashing.
- Page 9 All manuals and user guides at all-guides.com Set date and time If you wish to change the date or time, follow the instructions below: DAY/ PROG TIME MONTH YEAR HOUR MINUTE HOT WATER HEATING Override Override DONE 07 / 02 / 2013 Extra Hour Extra Hour Mode...
- Page 10 All manuals and user guides at all-guides.com Change AM/PM time display to 24 hour clock Your programmer can operate on the 12 hour AM/PM or 24 hour clock formats. If you wish to change the clock format, follow the instructions below: 10 sec.
- Page 11 Running a built-in programme (default programmes) All manuals and user guides at all-guides.com With the date and time correct, your programmer will now be operating to the built-in programmes. These have been designed to provide heating at typical times throughout the day. The built-in programmes give you a starting point that you can personalise to your own requirements, please see the section “Review/ Edit central heating program”...
- Page 12 All manuals and user guides at all-guides.com Domestic hot water systems – “fully pumped system” or “gravity-fed system Fully pumped The term for any boiler that uses a pump to Domestic Hot Water move all the heat from the boiler to every system part of the system is “fully pumped”.
- Page 13 Review/Edit central heating (CH) program Depending on the product you can choose between three All manuals and user guides at all-guides.com different settings: Daily, Weekly or Week-weekend (5-2 days) Daily You can program all weekdays (Monday - Sunday) with the same ON/OFF time schedule Weekly You can program each day (Monday, Tuesday, ...) with a different ON/OFF time schedule...
- Page 14 Review/Edit domestic hot water (DHW) program All manuals and user guides at all-guides.com Depending on the product you can choose between three different settings: Daily, Weekly or Week-Weekend (5-2 days) Daily You can program all weekdays (Monday - Sunday) with the same ON/OFF time schedule Weekly You can program each day (Monday, Tuesday, ...) with a different ON/OFF time schedule...
- Page 15 Operating modes All manuals and user guides at all-guides.com The operating mode may only be changed when RUN mode is activated (green indicator lamp RUN must be ON). The system will remains OFF. AUTO The system will be switched ON and OFF according to the adjusted program.
- Page 16 Installers menu All manuals and user guides at all-guides.com The programmer has a special installers menu where some features can be adjusted to suit your lifestyle or preferences. To access to installers menu (INST MENU) the device must be working in RUN mode (green indicator lamp RUN must be ON).
- Page 17 Service menu All manuals and user guides at all-guides.com This mode is a countdown of the operating running time. Service period time, action and message shown will be set into service menu (for service variants only). To access to service menu (SERV MENU) the device must be working in RUN mode (green indicator lamp RUN must be ON).
- Page 18 All manuals and user guides at all-guides.com PIN code Service mode is PIN code protected. The preset value is 1234. If you wish to change the PIN code, follow the instructions below: 10 sec. INST MENU SERV MENU CHANGE PIN OLD PIN 1 OLD PIN 2 OLD PIN 3...
-
Page 19: Disposal / Recycling
All manuals and user guides at all-guides.com Disposal / Recycling Dispose of the packing material correctly according to legal requirements and regulations. Observe the following notes for disposing of defective system components or the system after its service life: • Dispose of appropriately, i.e. separating the parts to be disposed of according to material groups. - Page 20 All manuals and user guides at all-guides.com Grässlin GmbH Bundesstraße 36 D-78112 St. Georgen Germany Phone: +49 7724 / 933-0 Fax: +49 7724 / 933-240 www.graesslin.de info@graesslin.de...
