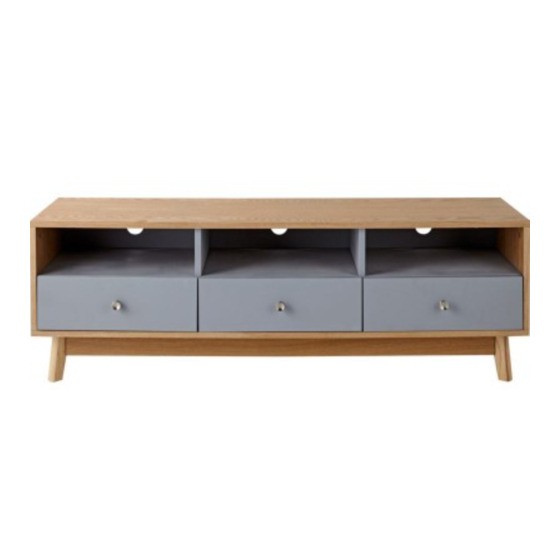

Foley 3 Drawer TV Unit
Assembly lnstructions - Please keep for future reference
360/3679
Dimensions
Width - 120cm
Depth - 40cm
Height - 40cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800
Issue 1- 27-11-14
Advertisement
Related Manuals for Argos Foley 360/3679
Summary of Contents for Argos Foley 360/3679
- Page 1 Foley 3 Drawer TV Unit Assembly lnstructions - Please keep for future reference 360/3679 Dimensions Width - 120cm Depth - 40cm Height - 40cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800 Issue 1- 27-11-14...
- Page 2 Safety and Care Advice Check you have all the Assemble the item as close We do not components and tools listed on to its final position (in the same recommend the pages 2 and 3. use of power room) as possible. Remove all fittings from the drill/drivers for Assemble on a soft level...
-
Page 3: Components - Parts
Components - Parts lf you have damaged or missing components. call the Customer Helpline: 0345 6400 800 Underside Underside 1 Top panel x 1 2 Base panel x 2 (120x40x1.5cm) (120x40x7.5cm) 3 Side panel (right) x 2 4 Side panel(left) x 1 5 Divider x 2 (25x40x1.5cm) (25x37x1.5cm) - Page 4 Components - Fittings 0345 6400 800 Metal dowel x 40 15 X 20mm Locking nut x 28 M6 x 30mm Wooden dowel x 8 30mm Wood screw x 12 12 x 10mm Locking nut x 12 M4 x 16mm screw x 3 M6 x 50mm Allen screw x 8 Drawer handle x 3 Spring washer x 8...
- Page 5 Assembly Instructions Preparing panels Carefully place base panel upside down onto the floor. Assemble legs to base panel using fixings Turn-over base panel flat onto the floor with the fixing holes facing up. Repeat for top panel Screw metal dowels into both panels as shown.
- Page 6 Assembly Instructions Preparing panels Place side panels flat on the floor. Screw metal dowels into the side panels as shown. Screw metal dowels into both sides of dividers Turn over Assembling shelf Locate shelf onto right side panel and secure Right from the underside using locking nuts...
- Page 7 Assembly Instructions Right Repeat step 3 procedure to assemble middle shelf Right Repeat to assemble divider onto shelf as shown. Right Repeat again for the last shelf Right Repeat again to assemble left side panel onto shelf Left...
- Page 8 Assembly Instructions Assembling top Insert wood dowels into the top edges of side panels Locate top panel into position and secure using locking nuts in the location shown. Assembling back panel Ensuring the 3 cable access holes will be at the top, carefully slide back panel into the grooves...
- Page 9 Assembly Instructions Assembling base Insert wood dowels into the bottom edges of side panels Locate base panel into position and secure using locking nuts the locations shown. Assembling drawers Assemble left and right drawer side panels together with back panel using screws Slide drawer base into the grooves as...
- Page 10 Assembly Instructions Assembling drawer handles Assemble drawer handles to drawer fronts using screws 9 10 Left Fitting drawers side Important: Drawer fronts different. Take care to ensure they are correctly located as shown. Engage the drawer runners and push gently inwards until they click into place.
- Page 11 Assembly lnstructions Fit plastic brackets around the edge of back panel using screws If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800 Home Retail Group. 489-499 Avebury Boulevard. Saxon Gate West. Central Milton Keynes. MK9 2NW...
