MicroBoards Technology CopyWriter Series User Manual

Hard drive duplicator
Hide thumbs Also See for CopyWriter Series:
Table of Contents

Advertisement

Quick Links

Download this manual

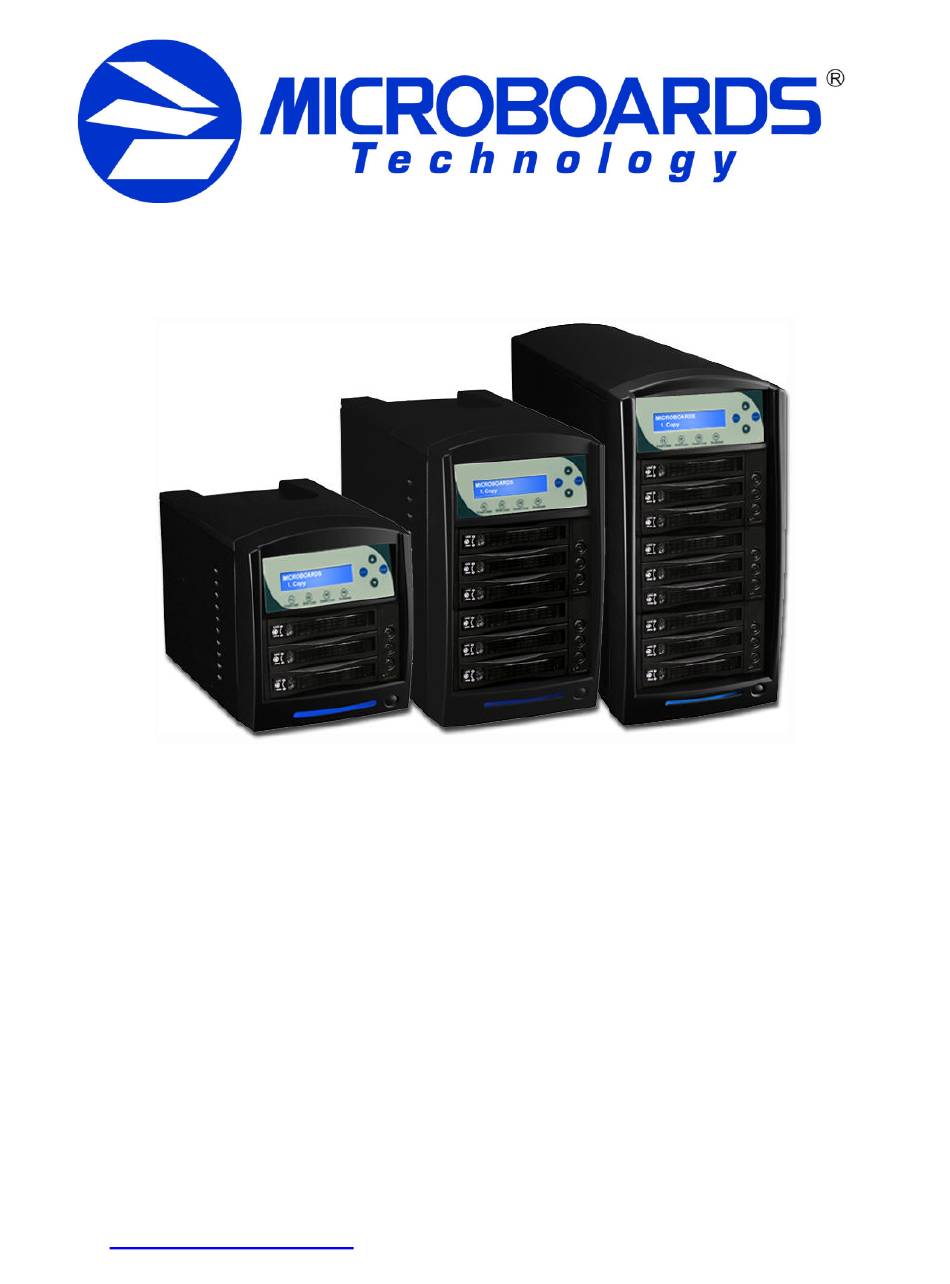

CopyWriter
Hard Drive
Duplicator
User's Manual
www.microboards.com
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CopyWriter Series and is the answer not in the manual?

Questions and answers

Related Manuals for MicroBoards Technology CopyWriter Series

Summary of Contents for MicroBoards Technology CopyWriter Series

  • Page 1 CopyWriter Hard Drive Duplicator User’s Manual www.microboards.com Version 1.0...
  • Page 2 Copyright laws is strictly prohibited. Microboards Technology discourages the violation of Copyright protection, through intent or action. Microboards Technology is not responsible for any potentially illegal actions of the end user during activities beyond the scope of the product’s intended use.

  • Page 3: Table Of Contents

    Utilities ..........................8 Manage Accounts .......................8 Shutdown ...........................8 Loading the Drive Trays ........................9 Removing the Drive Trays ......................... 11 Using the CopyWriter Series Hard Drive Duplicator ..............12 Copy .............................12 Copy + Compare ........................12 Erase .............................13 Copy Mode...........................13 Setup ............................13 Utilities ..........................13...
  • Page 4 Microboards Technology, LLC Any unauthorized modification to this equipment may result in the revocation by the FCC of the user’s authority to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 5: Introduction

    Manual • If any of these items are missing, please contact Microboards Technology Technical Support. IMPORTANT: Please keep all the packing for your Copywriter Hard Drive Duplicator. If your unit ever needs to be sent in for service, it must be returned in the original packing or the warranty will be voided.

  • Page 6: The Lcd Control Panel

    Microboards Technology, LLC The LCD Control Panel The LCD Control Panel shown above has a two-line, 20 character LCD display to provide user feedback. Eight push buttons control the operation of the Microboards CopyWriter Hard Drive and CopyWriter Hard Drive Turbo Series duplicators. The functions for these buttons are shown in Table 1-1.

  • Page 7: Hardware Description

    CopyWriter Hard Drive Duplicator Series Hardware Description Controller Interface Hard Drive LEDs and Power Buttons Hard Drive Bays Duplicator Power Switch CW-HDD-02 The Copywriter Hard Drive Duplicator system consists of a Controller module, Hard Drive trays, power switches for each bay, and a Duplicator power switch. The Copywriter Hard Drive Duplicator also includes an internal Hard Drive for Master Image Storage.

  • Page 8: Main Menu

    Microboards Technology, LLC Main Menu This section provides an overview of the menu options. These menu options are explained in detail in the Using the Hard Drive Duplicator section starting on page 12. Copy Use the Copy menu to duplicate the master hard drive to the target drives.

  • Page 9: Loading The Drive Trays

    CopyWriter Hard Drive Duplicator Series Loading the Drive Trays To correctly load the drive trays and insert the loaded trays into the Hard Drive Duplicator, follow these steps: 1. With power on to the duplicator, verify that the individual Drive Bays are not powered on. The LEDs on the hard drive power buttons will be off for each unpowered drive bay.
  • Page 10 Microboards Technology, LLC 4. Insert the hard drive tray with your source hard drives into the Source Bay (top bay) and the hard drive tray with your target hard drives into the remaining bays. a. Securely lock the trays into each bay by sliding the tray into the bay firmly and completely.

  • Page 11: Removing The Drive Trays

    CopyWriter Hard Drive Duplicator Series Removing the Drive Trays To correctly remove the drive trays from the Hard Drive Duplicator, follow these steps: 1. With power on to the duplicator, verify that the individual Drive Bays are not powered on. The LEDs on the hard drive power buttons will be off for each unpowered drive bay.

  • Page 12: Using The Copywriter Series Hard Drive Duplicator

    Microboards Technology, LLC Using the CopyWriter Series Hard Drive Duplicator Each of the duplication function instructions assume that the drive bays are loaded and turned on. Copy Microboards H.01 This process will copy your master drive on to several target (Smart) 1.

  • Page 13: Erase

    CopyWriter Hard Drive Duplicator Series Erase This menu option is used to erase any hard drive placed in the Microboards H.01 target bays. The Erase function has 3 options: 3. Erase Quick Erase: This option erases the index (TOC) of the target drives, not the data section.

  • Page 14: Manage Accounts

    Microboards Technology, LLC Manage Accounts Microboards H.01 The Manage Accounts menu includes optional User functions 7. Manage Accounts that allow you to limit access to the duplicator. You must either log in as the Admin user or have the Password on Bootup setting as NO if you want to access the Manage Accounts menu.

  • Page 15: The Setup Menu

    CopyWriter Hard Drive Duplicator Series The Setup Menu The Setup menu includes many settings the user can select to customize the use of the Copywriter Hard Drive Duplicator. A description of the options in the setup menu follows. Note: You must use either the Shutdown menu or manually run the Save function from the Utilities menu, or changes you make to the Setup Menu settings may be lost when you turn off your duplicator.

  • Page 16: The Utilities Menu

    Microboards Technology, LLC The Utilities Menu A description of the options in the Utilities menu follows. Use the ▼▲ buttons to scroll through the menu, pressing the ENT button when the display shows the function you want to perform. Compare The Compare utility performs the same data comparison between drives loaded into the drive bays as is done during the Copy + Compare duplication.

  • Page 17: Save

    Each duplicator has one Master Drive Bay in addition to the Target Drive Bays listed CAUTION: Disconnect AC Power Cord Before Servicing. High Voltages Present with Unit Powered Off and Line Cord Connected. Technical Support For technical questions or support issues, contact Microboards Technology technical support: United States Europe Japan...

  • Page 18: Appendix 1: Menu List

    Microboards Technology, LLC Appendix 1: Menu List Copy Copy + Compare Erase 1. Quick Erase 2. Full Erase 3. DOD Erase Copy Mode 1. SMART 2. RAW 3. Partition Setup 1. Language 2. Buzzer 3. Screen Saver 4. Read Error Skip 5.

  • Page 19: Appendix 2: Troubleshooting

    CopyWriter Hard Drive Duplicator Series Appendix 2: Troubleshooting No display on the LCD or the unit does not operate when the power is on. Check the power cable connection and that the environment for the power outlet is normal. Make sure the power voltage on the duplicator matches the voltage of the power outlet.

  • Page 20: Appendix 3: Error Messages

    Microboards Technology, LLC Appendix 3: Error Messages If an error situation occurs during duplication, the display will show both an error code and an error message. Error Error Message Description and Recommended Solutions Code The copy process failed with a read error.

This manual is also suitable for:

Copywriter cw-hdd-02Copywriter cw-hdd-t02Copywriter cw-hdd-05Copywriter cw-hdd-t05Copywriter cw-hdd-08Copywriter cw-hdd-t08
