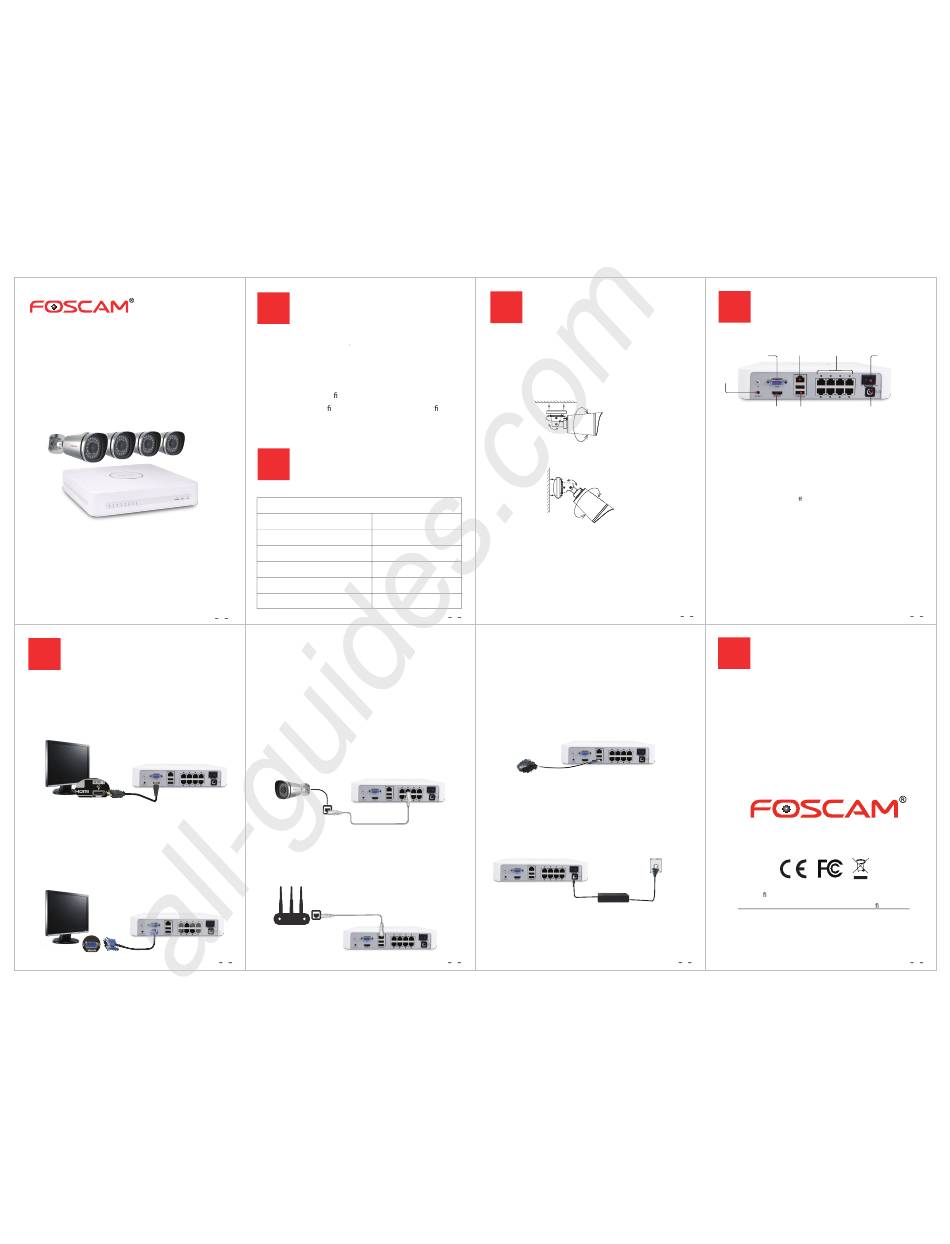

Quick Installation Guide
Model: FN3108XE-B4-1T / FN3108XE-B8-2T
EQ310802
5
Device Connection
Step One - Connect Monitor
A: Connect the NVR to your HDTV
Just plug one end in to the HD-OUT socket on the rear of the
NVR and the other in to a spare HD-OUT port on your TV.
NVR
HD-OUT cable
Note:
If you have already connected your NVR using HD-OUT you don't need
to do it again using the VGA port.
B: Connect the NVR to a Monitor or TV
Use the VGA cable that came with your monitor to connect it to
the NVR's VGA port.
NVR
VGA cable (not supplied)
All manuals and user guides at all-guides.com
1
Security Warning
Foscam cameras and NVRs require good security practices to
safeguard your privacy. You can help protect your camera or
NVR by changing the default username and/or password.
You should update your camera or NVR regularly at
http://www.foscam.us/ rmware.html. Make sure your camera
or NVR has the latest rmware installed for your speci c
model.
2

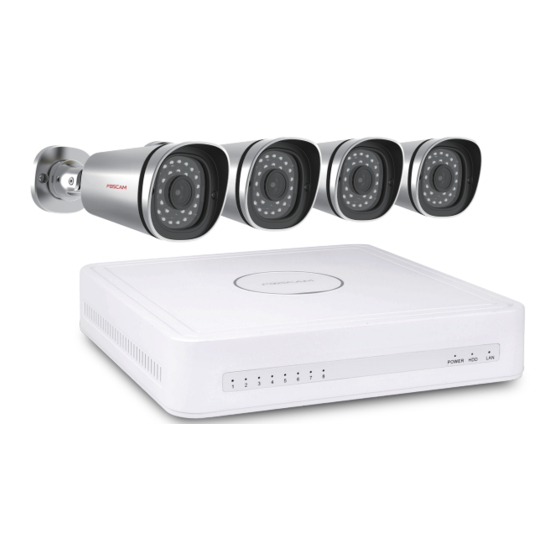

Package Contents
8-CH NVR Hard Drive (FN3108XE)
720P Bullet IP Camera (FI9800XE) Screw Pack
25M (82 ft) Ethernet Cable 1.8M (5.9 ft) HD Cable
15M (50 ft) Ethernet Cable USB Mouse
1.5M (5 ft) Ethernet Cable Power Adapter for NVR
Quick Installation Guide Quick Operation Guide
V1.1
Security Warning Card CD
1
Step Two - Connect your cameras
To connect your cameras to the NVR simply connect the supplied
cable in to the socket of the small cable coming from the camera
then plug the other end of this cable into one of the ports on the
back of the NVR.
There is a one-to-one relationship between the IP Camera Input
port and the video channel of your NVR.
IP Camera
(FI9800XE)
Ethernet cable
Step Three - Connect to your network
To connect your NVR to the router using Ethernet cable.
Please make sure your router has been connected to the internet.
Ethernet cable
Router
NVR
5
3
Installing the Cameras
Fixate the camera on your preferred location and use
screws to mount it. We have provided screws in the
package.
0~360°
0~360°
0~90°
0~360°
0~90°
0~360°
Please Note:
Ensure that the rain or water will not reach the
connector ports at the end of the pig tail wiring.
These connectors are not weather-resistant.
2
Step Four - Connect the mouse
The USB mouse supplied with your NVR can be connected to
either of the two rear USB ports.
Mouse
Step Five - Connect the power adapter
NVR
Connect the power adapter to the power input port.
NVR
Power adapter
The connection are now complete. You can turn on the
power switch to enter your NVR.
6
4
NVR Structure
Ethernet Port IP cameras Input
VGA Output
Reset
HD-OUT
VGA Output : Connect to your TV or computer monitor with VGA port.
E
thernet Port :10 / 100Mb.
via the Ethernet cable.
IP Cameras Input : These ports are for both power and video and are
where you plug in your camera cables.
Power Switch : Power on/o button.
Reset : Press and hold the "Reset" button for a while with the NVR
powered on, and then release.
The NVR will automatically reboot and restore factory settings. The
username and password will be set to the default value "admin/(blank)".
HD-OUT : Connect to your HDTV or computer monitor with HD-OUT
port.
USB - USB 2.0 Port. For connecting your USB mouse to control the NVR.
Power Input - This is where you connect the NVR's DC power supply.
3
6
Technical Support
If you have problems with your Foscam device, please contact
the Foscam reseller you purchased from, or you can e-mail the
Foscam headquarter technical support team:
tech@foscam.com.
Your valuable comments and suggestions on improving Foscam
products are welcomed!
NVR
CE Certi cate Website:
http://www.foscam.com/company/ce-certi cate.html
ShenZhen Foscam Intelligent Technology Co., Ltd
7
Power Switch
USB Power Input
You can connect your NVR to the internet
